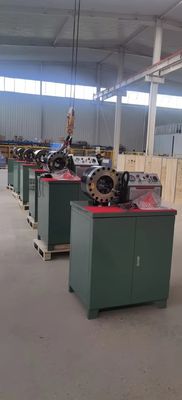

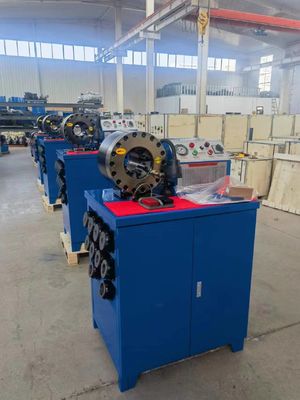

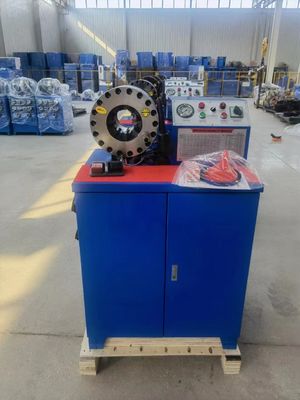

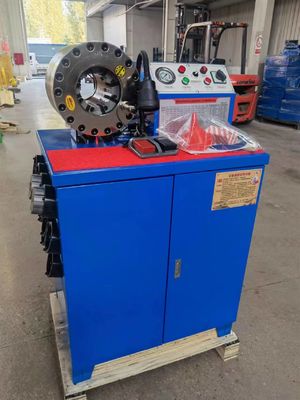

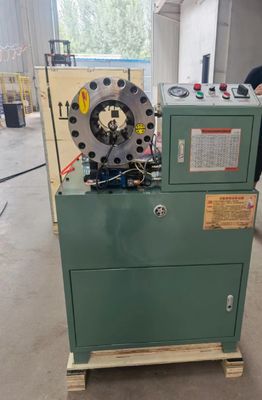

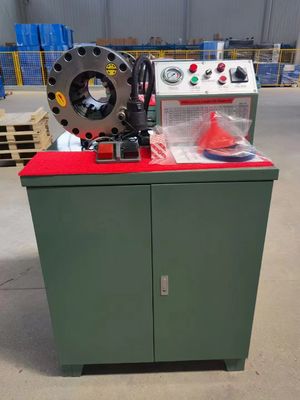

High Precision Brake Hose Crimping Machine 3kw Manual Hydraulic Pipe Crimper
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xVoltage | 220V/240V/380V/415V(Optional) | Gross Weight | 326kgs |
---|---|---|---|
Net Weight | 310kg | Power(w) | 3KW |
Dimension(l*w*h) | 860*640*1300 Mm | Package Dimension | 900*685*1410 Mm |
Warranty | 1 Year | Condition | New |
After-sales Service Provided | Video Technical Support,Online Support | Crimping Force | 600Ton |
Product Name | CE Approved 6-51mm High Pressure Hydraulic Hose Crimping Machine | Crimping Range | 6-51mm |
Color | Blue,blue Or Customize | Application | Crimp Hose |
Free Dies | 10sets | System Pressure | 31.5MPA |
Output Volume Of Pump | 2.5L/5L/10L | HIGH LIGHT | Hydraulic Hose Crimping Machine, Flexible Hydraulic Hose Crimping Machine, Flexible Hose Crimping Machine |
High Light | High Precision Brake Hose Crimping Machine,manual hydraulic pipe crimper,3kw hydraulic pipe crimper |
crimping range | 6-51 mm | |
---|---|---|
quantity of dies | 10 sets | |
accuracy | 0.01 mm | |
output volume of pump | 2.5L/5L/10L | |
system pressure | 31.5mpa | |
motor power | 3kw | |
voltage | 220v/240v/380v/415v (optional) | |
crimping force | 600 t | |
work efficiency | 200 pcs/h | |
maximum open diameter | 114 mm | |
the max open tolerance | 30 ±mm | |
machine dimension | 860*640*1300 mm | |
package dimension | 900*685*1410 mm | |
net weight | 310 kg | |
gross weight | 326 kg |
Manual Button Press Hose Crimping Machine Pipe Crimping Machine High Precision
DESCRIPTION
The model has three operation modes, foot, button and automatic electricity, which can be freely converted to make your operation more convenient; The fully automatic operation mode of this machine can automatically complete pipe pressing with one key; The base can be equipped with pulleys for easy movement; It is a very cost-effective product. At the same time, the KSD502A model is equipped with 10 sets of molds, allowing you to process hose of different sizes and types. According to the needs of customers, we also support product customization.
FY-51BY is a hose crimper for hydraulic high pressure flexible hose range from 1/4 inch to 2 inch one to six stainless steel wire braided or spiraled. It has three different operate mode, to meet customer different need.
MAIN ADVANTAGES
1. Big oil pump, efficient and long life
2. Multifunctional operate panel, easy to change between automatic and semi-auto
3. Pressure can be shown on the panel
4. Foot pedal as standard to make hands free
5. Working light to make crimping work more clear
TECHNICAL DATA
Model | FY-51BY Hose Crimping Machine |
Crimping Range | 6-51(mm) |
Crimping Force | 600(T) |
Hose Size | 1/4-2(inch) |
Max. Opening | 30±mm |
Die Sets | 10 |
Maximum Open Diameter |
114MM |
System Pressure | 31.5(Mpa) |
Accuracy | 0.01(mm) |
Work Efficiency |
200 pcs/h |
Standard Voltage |
220v/240v/380v/415v(optional) |
Motor Power | 3(KW) |
Length | 860(mm) |
Width | 640(mm) |
Height | 1300(mm) |
Weight | 310(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
► TWO MODE EASY ALTERNATED
Automatic or semi-automatic mode can be choosen
