CNC Brake Hose Crimping Machine Metric Brake Pipe Crimping Tool 200 Pcs/H

Name: CNC Brake Hose Crimping Machine Metric Brake Pipe Crimping Tool 200 Pcs/H
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-51WSSK
Price: 2200 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-51WSSK
MOQ:	1 set
Price:	USD$ 2200
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Weight:

310KG

Condition:

New

Dimension(l*w*h):

650*500*1300MM

Warranty:

1 Year

After-sales Service Provided:

Video Technical Support,Online Support

Voltage:

380V

Power(w):

4KW

Crimping Force:

600T

Color:

Blue Or Custom

Crimping Range:

4-51mm,1/4"to2'',1/4''-2''

Product Name:

4-51mm High Pressure Hydraulic Hose Crimping Machine

Application:

Crimp Hose

Free Dies:

12 Sets

Rated Pressure:

31.5MPA

Keywords:

CNC Hydraulic Hose Crimping Machine

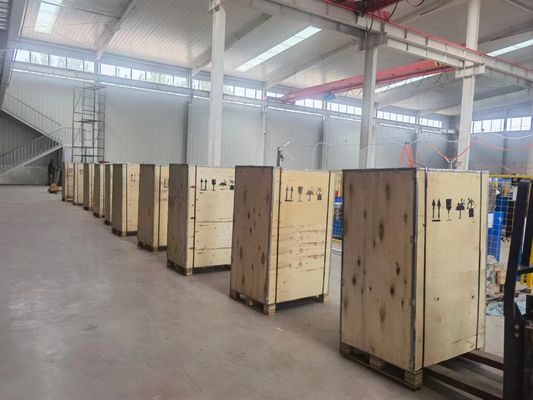

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

CNC Brake Hose Crimping Machine

metric brake pipe crimping tool

brake pipe crimping tool 200 pcs/h

Product Description

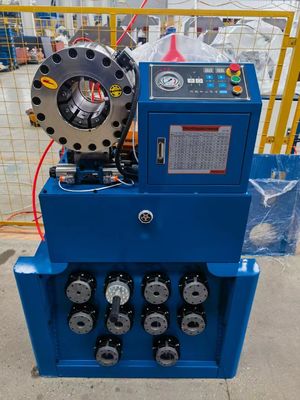

DIGITAL BRAKE HOSE CRIMPING MACHINE FY-51WSSK

THE DESCRIPTION OF OUR MACHINE

Different hose or fitting need different dies mold, like air suspension ring, air conditioning hose,brake hose,hydraulic hose,cable wire, steel pipe,steel wire rope and so on.

So you can tell us what you need to crimp, then we make customize the dies mold regarding your products or requirements.

FY-51WSSK utilizes the advanced PLC computer numerical control technology, gives the user a more convenient operation system. It is widely used in various machinery repair workshop and hose assembly making factories.

crimping range	4-51mm(1/8''-2''inner diameter of hose)
Rated pressure	31.5Mpa(Optional)
The largest crimping pressure	600T
Rular precision	0.01mm
Output volume of pump	10L(Optional)
Net weight	310kg
Work efficiency	200pcs/h
size	7506001500 mm
dies	12 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60)

ADVANTAGES
1) Use the famous BRAND valve, high hardness, big flow.
2) Quick change for die sets, makes it more convenient and saves working time.
3) High quality PLC control system, crimping with high accuracy and stability.

TECHNICAL DATA

Model	FY-51WSSK Hose Crimping Machine
Crimping Range	4-51(mm)
Crimping Force	600(T)
Hose Size	1/4-2(inch)
Max. Opening	114mm
Output Volume Of Pump	10L
Quantity Of Dies	12
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200 PCS/H
Standard Voltage	380(V)
Motor Power	4(KW)
Length	650(mm)
Width	500(mm)
Height	1300(mm)
Weight	310(KG)

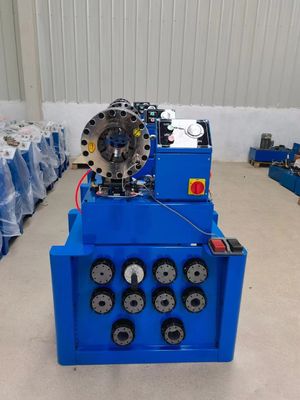

CNC Brake Hose Crimping Machine Metric Brake Pipe Crimping Tool 200 Pcs/H 0

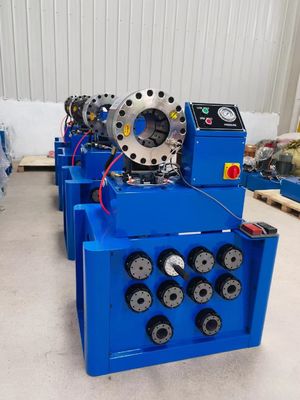

CNC Brake Hose Crimping Machine Metric Brake Pipe Crimping Tool 200 Pcs/H 1

NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 380V are availbale;

► NEW DESIGN CRIMPING HEAD
New inner structure design, enable high accuracy even for using after years

► 12 DIE SETS
12 die sets hardness 59-63HRC, with quick change tool, productivity improve much.

► HIGH QUALITY MOTOR
Copper wire with aluminium sheel, good heat releasing, longer service life.

► FAMOUS PLC CONTROL
Stable microcomputer control with high accuracy and multifucntion

► OEM SERVICE AVAILABLE
FY-51WSSK can be customized on different color, buttons and die sets

► APPLICATION SHOW
FY-51WSSK is a high configured hose crimping machine, it has the ability of crimping high pressure
stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive
system, air suspension or springs.

crimping range	4-51mm(1/8''-2''inner diameter of hose)
Rated pressure	31.5Mpa(Optional)
The largest crimping pressure	600T
Rular precision	0.01mm
Output volume of pump	10L(Optional)
Net weight	310kg
Work efficiency	200pcs/h
size	7506001500 mm
dies	12 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60)

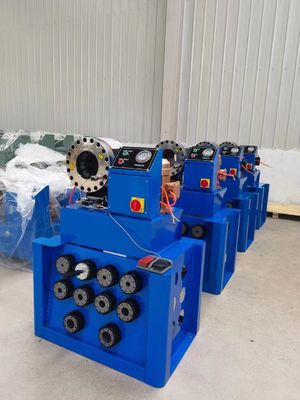

CNC Brake Hose Crimping Machine Metric Brake Pipe Crimping Tool 200 Pcs/H 2

♦ How to choose a suitable hose crimping machine?
1) Control system
There are 2 control systems of all hose crimping machine, MS or UC control. MS is mechnical system which using a micrometer to control the crimping diameter and manually control the crimping progress; UC is a PLC control system, using a micro computer control the whole system, including crimping diameter, crimping time, it is a modern device, so price is higher.

2) Crimping size
Hose crimping machine is seperated based on the maximum hose it can crimp, so there is 2 inch crimper, 3 inch crimper, 4 inch crimper, 6 inch crimper, etc.

3) Die changing way
Die sets can be changed manually one by one, or can be changed at one time with a quick change tool.

4) Material or spares quality also influence the price and cafiguration of the hose crimper.
