| Brand Name: | FY |
| Model Number: | FY-CBK120 |
| MOQ: | 1 set |
| Price: | USD$ 4650 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 SETS PER MONTH |
The AC Hose Crimping Machine is an ultra-thin and ultra-precise device that can withstand faster and more reliable operation. It is capable of withstanding a system pressure of up to 31.5mpa, and features an output volume of pump of up to 10L/16L. The maximum opening of the machine is 158mm, offering super thin crimping with a precision of ±0.01mm. The AC Hose Crimping Machine is designed for one-time crimping, providing superior high precision and reliable operation.
| crimping range | 6-76 mm(1/4~3") |
| quantity of dies | 15 sets |
| accuracy | 0.01 mm |
| output volume of pump | 10L/16L |
| system pressure | 31.5mpa |
| motor power | 5.5kw/7.5Kw |
| voltage | 110V/220V/380V/415V 50/60Hz(optional) |
| crimping force | 1500 t |
| work efficiency | 300pcs/h |
| maximum open diameter | 165 mm |
| the max open tolerance | 60 ±mm |
| machine dimension | 1000*800*1630 mm |
| package dimension | 1100*850*1730 mm |
| net weight | 1250 kg |
| gross weight | 1300 kg |
| Item | Specification |
|---|---|
| Max Opening | 158mm (3 inch) |
| Crimping Speed | 10-15s/time (Faster Speed) |
| System Pressure | 31.5mpa (More Pressure) |
| Output Volume of Pump | 10L/16L (Higher Output) |
| Power Supply | 220V/380V/415V/440V (Multiple Power Supply) |
| Weight | 1250KG (Lighter Weight) |
| Model | AC Hose Crimping Machine |
| Crimping Force | 1500T |
| Control System | PLC/BUTTON/DIGITAL PANNAL (Advanced Control System) |
| Quantity of Dies | 15 Sets (Larger Capacity) |
AC Hose Crimping Machine is the perfect choice for industrial and automotive hose assembly applications. Manufactured by FY, this model is known for its untra-thin, super thin, and high quality crimping, making it ideal for extraordinary performance. The FY-CBK120 AC Hose Crimping Machine is equipped with a max opening of 158mm, a crimping precision of ±0.01mm, a control system of PLC/BUTTON/DIGITAL PANNAL, and a system pressure of 31.5mpa. This machine is excellent for crimping hoses of various sizes and shapes, making it an invaluable tool in a wide variety of industries.
We are offering our clients AC Hose Crimping Machine, which is designed and developed by our trusted brand FY. It is made available in the model FY-CBK120, and is manufactured in China. It has a weight of 1250KG, and its output volume of pump is 10L/16L. The motor power of this machine is 5.5KW. It is an extremely powerful machine that can crimp 3 inch super thin material with more pressure. It is equipped with a PLC/BUTTON/DIGITAL PANEL control system.
Our AC Hose Crimping Machine comes with a comprehensive technical support and service package. Our experienced technical staff is available to provide assistance with installation, operation and maintenance of the machine. We offer free phone support during business hours and also provide online support with our website. Our team can help you troubleshoot any issues that may arise with the machine, and can provide prompt replacements for any parts that may be defective. We also provide regular maintenance services to ensure the machine is always in peak condition and working properly.

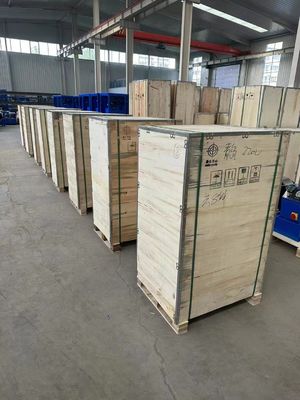

The AC Hose Crimping Machine will be securely packaged and shipped in appropriate packaging materials to ensure the machine arrives in perfect condition. The packaging materials used will be designed to protect the machine from mechanical, thermal, and chemical damage during transit.
The package will be accompanied by a packing list that includes the item number, description, quantity, and weight. The package will be clearly labeled with the item number and description of the machine. This will enable easy identification of the package and its contents.
The package will be shipped using a reliable shipping method such as FedEx or UPS. The package will be insured for full value to ensure that the machine arrives safely and in perfect condition.
