| Brand Name: | FY |
| Model Number: | FY-CBK-51B |
| MOQ: | 1 set |
| Price: | USD$ 5850 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
BIG ELBOW FITTINGS CBK-51B FLEXIBLE HOSE CRIMPER MACHINE
FY-CBK-51B DECRIPTION

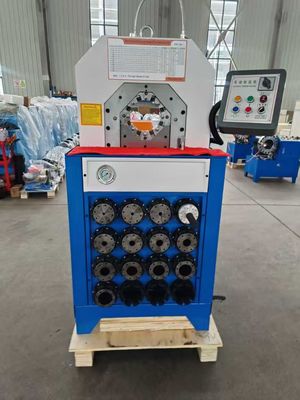

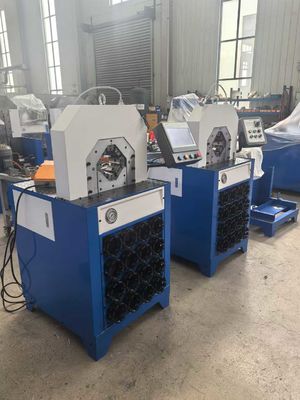

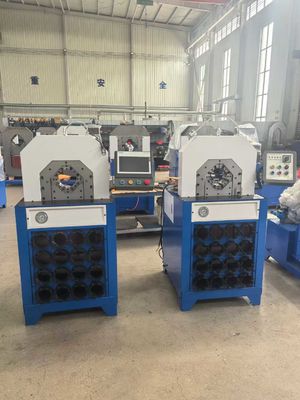

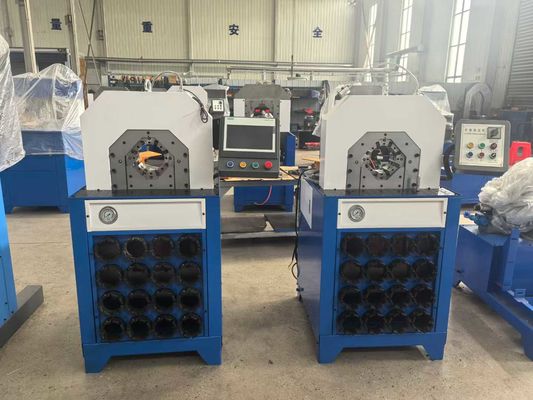

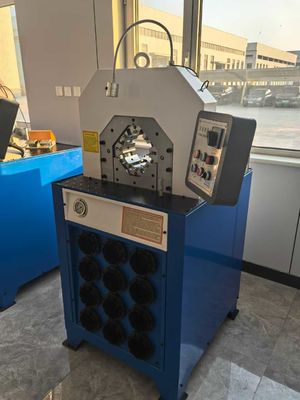

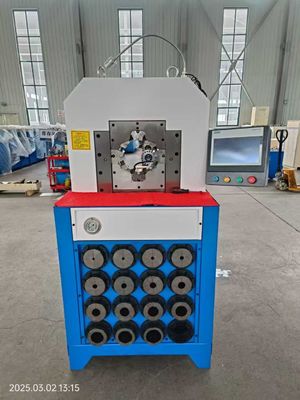

Product Name: Hydraulic Hose Crimping Machine
Crimping Capacity: 2 & 3 Inch
Power Options: 5.5 kW / 7.5 kW
Production Rate: 300 Pieces/Hour
Control System: Button Control System
Key Features:
Market Advantage:
Precautions before operation
1. When using the tube press for the first time, 2 Inch Button Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be crimped 20 to 30 times without load, and it can be used after observing that all parts are normal.
2. When using the pipe press in winter, 2 Inch Button Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be withheld for 20 to 30 times without load to increase the oil temperature.
3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale (see the crimping parameter table for details).
4. Place the hose with the joint in the proper position in the press head, so that the entire length is crimped at one time.
5. Press the crimping button to execute crimping operation, until the crimping head stops crimping and automatically opens the mold.
6. Take out the crimped hose assembly and use a vernier caliper to check the
outer diameter of the crimped joint jacket. If 2 Inch Button Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.
FY-CBK-51B hose pressing machine is famous for its intelligent control system and large opening mouth. With a super crimping force, 2 Inch Button Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine can crimp hydraulic hose R15 R13 up to 2 inch.
MAIN FEATURES
1. Thin head, easy fed for bend fitting;
2. Big crimping power;
3. High accuracy.
TECHNICAL DATA
| Model | FY-CBY-51B Hose Pressing Machine |
| Crimping Range | 6-51(mm)(1/4~2") |
| Crimping Force | 1000(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 145mm |
| Die Sets | 13 |
|
work efficiency
|
300pcs/h |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Control | PLC |
| Standard Voltage |
110V/220V/380V/415V
50/60Hz
|
| Motor Power | 4(KW) |
| Length | 640(mm) |
| Width | 820(mm) |
| Height | 1400(mm) |
| Weight | 850(KG) |
NOTE
- Customized die sets are available;
- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
