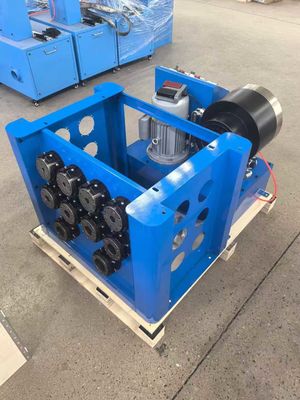

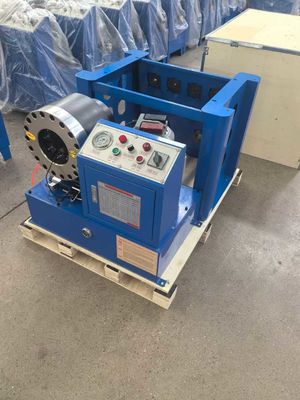

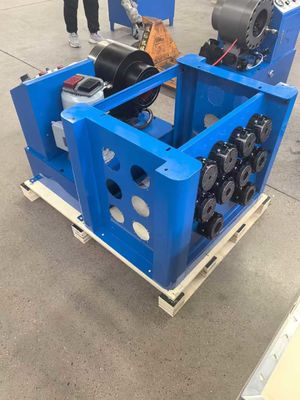

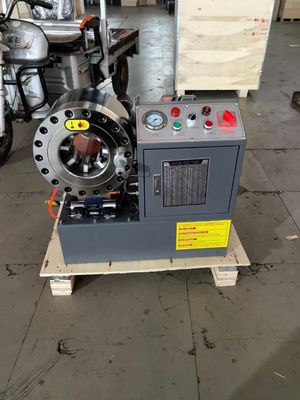

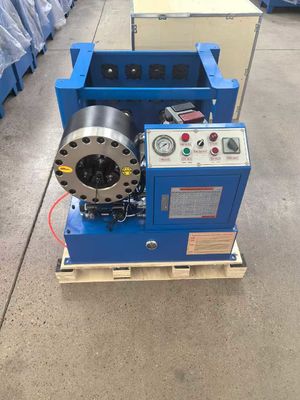

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager

Name: 2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 2,025.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-P38
MOQ:	1 set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Reinforcement:

Faster Change Models

Color:

Blue

Name:

1/4" To 1.5 Inch Air Hydraulic Hose And Hydraulic Rubber Hose

Crimping Range:

6-38mm

Quantity Of Dies:

8 Sets

System Pressure:

26mpa/31.5mpa

Voltage:

220v/240v/380v/415v (optional)

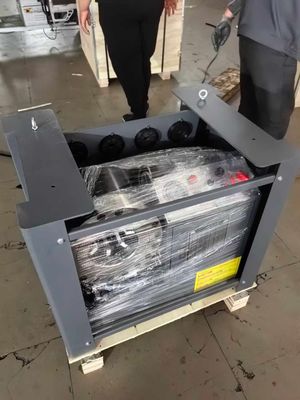

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

Compact Portable Hose Crimping Machine, 1.5 Inch Portable Hose Crimping Machine, 38mm Portable Crimping Machine

Product Description

High Quality Button Control Panel High Pressure Manual Hose Crimping Machine

THE DESCRIPTION OF OUR DEVICE

Product Name: Portable Hydraulic Hose Crimping Machine
Color: Blue
Crimping Capacity: 1.5 Inch and 2 Inch
Hose Size Compatibility: 6-38 mm
Included Accessories: Rack and Fast Change Mould Tools Key Features: • Efficient Design: Built for quick and easy hose crimping, minimizing downtime with fast change mould tools. • Portable and Lightweight: Designed for easy transport, making it suitable for on-site applications. • Robust Construction: Engineered for durability and reliability, ensuring consistent performance in various environments.

MAIN FEATURES

1. Quick speed;

2. High efficiency;

3. Easy maintenance;

4. Low noise;

5. Long service time.

crimping range	6-38mm(1/4''-1.5''inner diameter of hose)
Rated pressure	26Mpa/31.5Mpa(Optional)
The largest crimping pressure	300T
Rular precision	0.01mm
Output volume of pump	2.5L/5L(Optional)
Net weight	275kg
Work efficiency	200pcs/h
size	950630700 mm
dies	8 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60)

TECHNICAL DATA

Model	FY-P38 Portable Hydraulic Hose Crimper
Crimping Range	6-38(mm)
Crimping Force	300(T)
Hose Size	1/4-1.5(inch) 4SH
Max. Opening	104mm
Die Sets	8
Output Volume Of Pump	2.5L/5L
System Pressure	26/31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200PCS/H
Standard Voltage	220v/240v/380v/415v (optional)
Motor Power	3KW/4(KW)
Length	950(mm)
Width	630(mm)
Height	700(mm)
Net Weight	275(KG)
Gross Weight	300(KG)

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 0

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 4

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 5

APPLICATIONS

FY-P38 is a high configured hose crimping machine, it has the ability of crimping high pressure stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive system, air suspension or springs.

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 6

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 7

crimping range	6-38mm(1/4''-1.5''inner diameter of hose)
Rated pressure	26Mpa/31.5Mpa(Optional)
The largest crimping pressure	300T
Rular precision	0.01mm
Output volume of pump	2.5L/5L(Optional)
Net weight	275kg
Work efficiency	200pcs/h
size	950630700 mm
dies	8 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60)

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 8

NOTE

1) Customized die sets are available with different size or shape;

2) Special voltage such as 220v/240v/380v/415v (optional) are availbale;

3) Foot pedal is available to make the hands free;

4) * for non standard die sets.

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 9

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 10

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 11

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 12

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 13

2 Inch And 1.5 inch Blue Color Portable Hydraulic Hose Crimping Machine With Rack And Fast Change mould tools 6-38mm Hose Swager 14
