| Brand Name: | FY |
| Model Number: | FY-QG-51x |
| MOQ: | 1 set |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 300 sets per month |
1/4''-2'' automatic manual hydraulic tube cutting machine for rubber hose
DECRIPTION
SPECIFICATIONS:
Product Name: Mini Automatic Rubber Hose Cutting Machine
Type: Hose Cutter
Voltage: 12V (Car Loading)
Cutting Capacity: 1/4" to 2"
Color: Blue
Dimensions: 65 x 50 x 49 cm
Operation: Automatic
Key Features:
FY-QG-51x is a hose cutting machine which also have the ability to strip hose rubber. It has big power,
so that it can cut hydraulic stainless steel braided hose up to 2 inch 4 wire.
TECHNICAL DATA
| Model | FY-QG-51x Hose Cutting/Skiving Machine |
| Hose Size | 1/4''-2'' |
| Motor Power | 3kw |
| Voltage |
220v-380v/12v 50/60hz
|
| Work Efficiency | 1500pcs/h |
|
gross weight
|
70kg |
| Length | 650mm |
| Width | 500mm |
| Height | 490mm |
| Net Weight |
60kg |

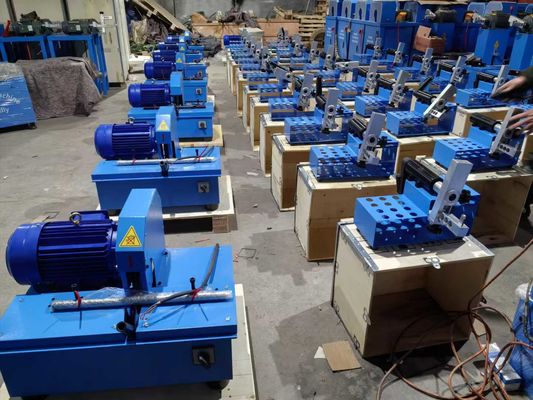

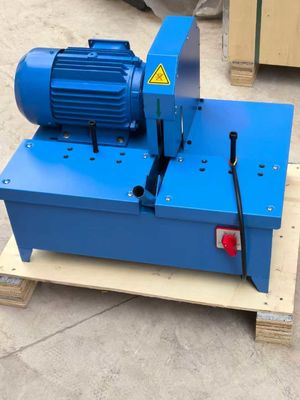

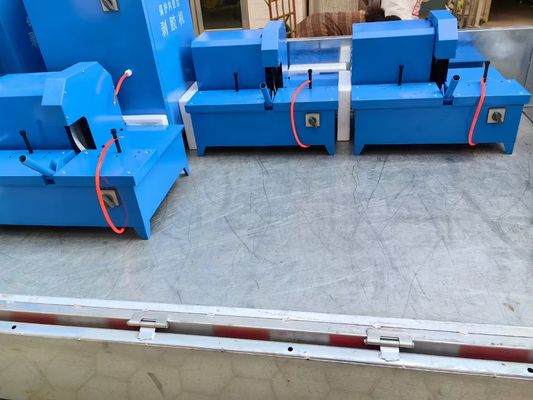

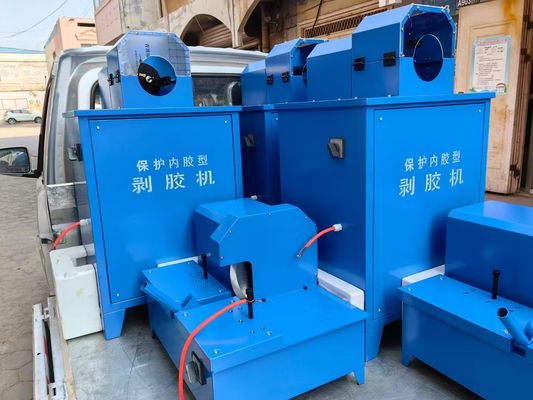

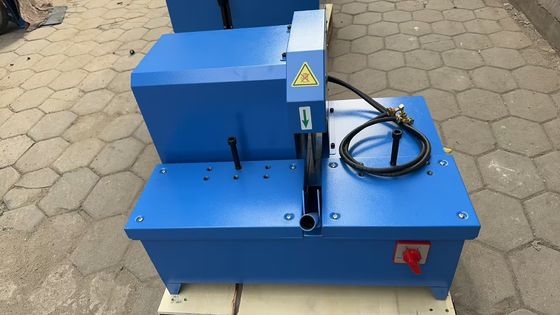

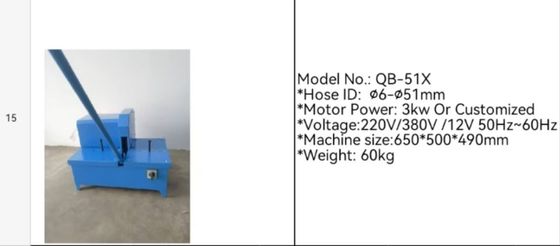

► PICTURES
► APPLICATION
FY-QG-51x is hose cutting machine which also have fucntion of hose rubber stripping. It is an essential device for hose assembly making before crimping. Cutting is to cut the hose to the needed length for hydraulic system connecting, skiving is to strip the inner or out rubber layer, so that the stainless steel braided hose can be connect well with ferrule and fittings.
