3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control

Name: 3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-CBK-120
Price: 5,150.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-CBK-120
MOQ:	1 set
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Weight:

1.25Ton

Condition:

New

Dimension(l*w*h):

100*80*163CM

Warranty:

12 Months

After-sales Service Provided:

Video Technical Support,Online Support

Voltage:

380V

Power(w):

5.5KW

Crimping Force:

1500T

Color:

Black/Blue Etc Or Custom

Crimping Range:

6-76mm,1/4" To 3'',1/4''-3''

Product Name:

6-76 Mm High Pressure Hydraulic Hose Crimping Machine

Type:

Hydraulic Crimping Tools

Application:

Crimp Hose

Free Dies:

15 Sets

Rated Pressure:

31.5MPA

Keywords:

3 Inch Hydraulic Hose Crimping Machine

HIGH LIGHT:

Car Ac Hose Crimping Machine, AC Hose Crimping Machine, 3 Inch Automotive Ac Crimping Tool

Product Name:

Super Thickness 3 Inch With 15 Dies 6-76mm PLC Control Systerm Black Color Hydraulic Hose Crimping Machine With Fast Change Mould Tools Withhold Faster Crimping Force 650T Hydraulic Hose Crimper

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

3-inch hydraulic hose crimper

PLC control hose crimping machine

15-die hydraulic crimper 6-76mm

Product Description

Super Thickness 3 Inch With 15 Dies 6-76mm Black Color AC Hose Crimping Machine With Fast Change Mould Tools Withhold Faster Crimping Force 650T/hydraulic Hose Crimper/hose Pressor

Super Thickness 3-Inch Hydraulic Hose Crimping Machine

Introducing the Super Thickness 3-Inch Hydraulic Hose Crimping Machine, designed for optimal performance in various crimping applications. This robust machine features 15 interchangeable dies, accommodating hoses from 6mm to 76mm, making it perfect for diverse industrial needs.

Key Features
- Durable 3-Inch Design: Engineered with super thickness for enhanced strength, ensuring reliable operation even under heavy use.
- 15 Interchangeable Dies: The included dies provide flexibility for crimping a variety of hose sizes, allowing for efficient adaptation to different projects.
- Advanced PLC Control System: The machine utilizes a programmable logic controller (PLC) for precise control over the crimping process, enhancing accuracy and consistency.
- Quick-Change Mould Tools: Designed for rapid die changes, this feature minimizes downtime and maximizes productivity during operations.
- High Crimping Force: With a powerful crimping force of 650 tons, it guarantees secure and reliable fittings for high-pressure applications.
- Sleek Black Finish: The modern black color not only provides a professional look but also offers durability against wear and tear.
Advantages
1. Enhanced Efficiency: The machine is designed to improve workflow, achieving faster crimping speeds that increase productivity by 35%.
2. User-Friendly Interface: The intuitive controls and PLC system make it easy for operators to handle the machine with minimal training.
3. Versatile Applications: Ideal for a range of hoses, including hydraulic and industrial types, this crimper meets various operational demands.
4. Safety Features: Built with safety in mind, the machine includes mechanisms to protect operators during use.

crimping range/skiving range	6-76mm(1/4''-3''inner diameter of hose)
quantity of dies	15 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L/16L(Optional)
system pressure	31.5Mpa/315 bar
motor power	5.5kw,3 phase
voltage	380V/220v depend on client demand
crimping force	1500T
work efficiency	pcs/h
maximum open diameter	158mm
the max open tolerance	±53mm
package dimension	11009001730mm
machine dimension	10008001630mm
Net weight	1250kg
Gross weight	1300kg

TECHNICAL DATA

Model	FY-CBK-120 AC Hose Crimping Machine
Crimping Range	6-76(mm)
Crimping Force	1500(T)
Hose Size	1/4-3(inch)
Max. Opening	158(mm)
Die Sets	15
The Max Open Tolerance	+53mm
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Output Volume Of Pump	10L/16L
Standard Voltage	380(V)
Motor Power	5.5(KW)
Length	1000(mm)
Width	800(mm)
Height	1630(mm)
Weight	1250(KG)

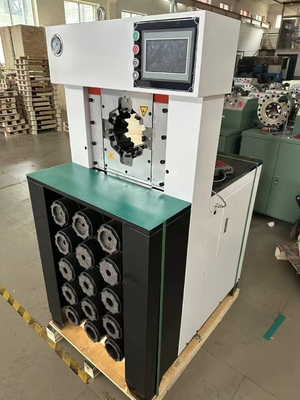

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 0

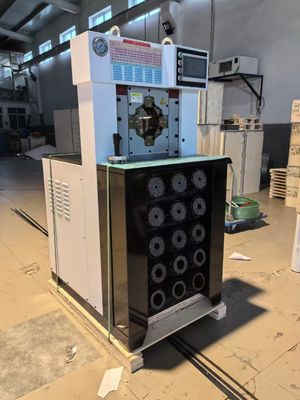

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 1

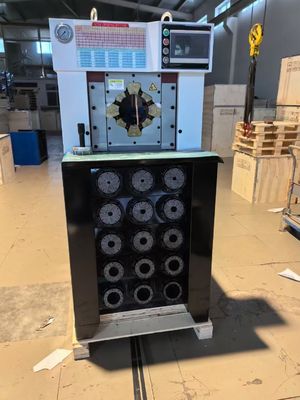

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 2

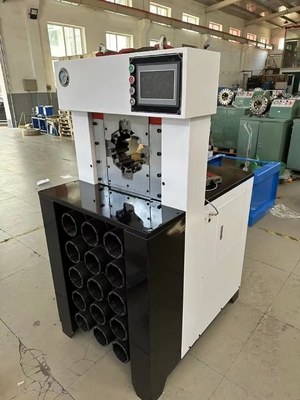

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 3

NOTE

• " * " for non standard mold

• Customized die sets are available

• Special voltage 380V are availbale

► SUPER THIN CRIMPING HEAD

New cylinder making technology which seprate the cylinder with the crimping head, enbles a wide working stroke of the working area, so that the machine can be able to crimp elbow or irregular tubes

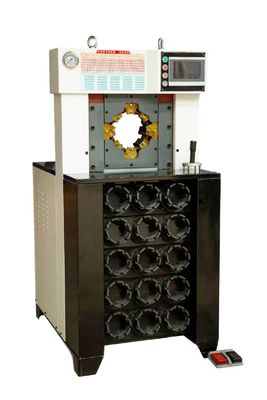

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 4

► NEW DIE SETS

15 die sets, range from 6mm to 76mm, suitable for hose from 1/4 to 3 inch with six spirals crimping

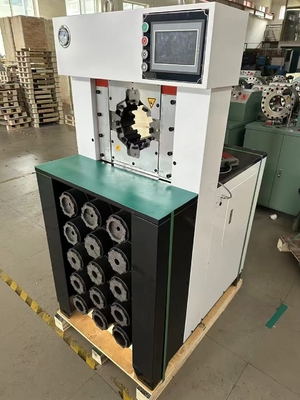

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 5

► HEAVY DUTY MACHINE RACK

With big cylinder hydraulic system, the machine capable of pressing hose up to 6 spirals

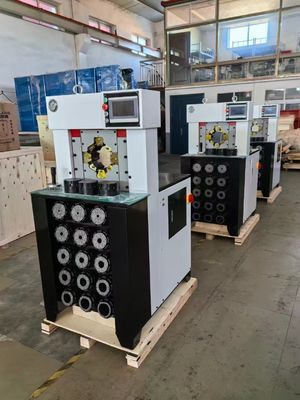

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 6

► BIG DOUBLE USE FOOT PEDAL

The foot pedal frees both of the operator's hand and improve the working efficiency much

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 7

► OEM SERVICE AVAILABLE

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 8

► APPLICATION SHOW

FY-CBK-120 is especially designed for big elbow fittings crimping, it is wodely used in car ac hose, hydraulic oil hose, air hose, water pipe, industrial hoses, wires and cables crimping work.

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 9

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm PLC Control 10
