3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control

Name: 3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-CBK-120
Price: 5,150.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-CBK-120
MOQ:	1 set
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Weight:

1250kg

Condition:

New

Dimension(l*w*h):

1000*800*1630MM

Warranty:

1 Year

After-sales Service Provided:

Video Technical Support,Online Support

Voltage:

380V,Depend On Client Demand

Power(w):

5.5KW

Crimping Force:

1.5MT

Color:

Black/Blue Etc Or Custom

Crimping Range:

6-76mm,1/4" To 3'',1/4''-3''

Type:

Hydraulic Crimping Tools

Application:

Crimp Hose

Free Dies:

15 Dies

Rated Pressure:

315 Bar

Keywords:

3 Inch Hydraulic Hose Crimping Machine

HIGH LIGHT:

Car Ac Hose Crimping Machine, AC Hose Crimping Machine, 3 Inch Automotive Ac Crimping Tool

Product Name:

3-Inch 6-76mm Black Color Hydraulic Hose Crimping Machine/hose Crimper/hose Pressor Big Power 650T With PLC Control System

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

3 inch hydraulic hose crimper

PLC controlled hose crimping machine

6-76mm hydraulic hose crimper

Product Description

3-Inch 6-76mm Black Color Hydraulic Hose Crimping Machine/hose Crimper/hose Pressor Big Power 650T With PLC Control System

3-Inch Hydraulic Hose Crimping Machine - High Power with PLC Control System

Product Description

Introducing the 3-Inch Hydraulic Hose Crimping Machine, a powerful and efficient tool designed for crimping hoses ranging from 6mm to 76mm. With an impressive crimping force of 650 tons, this machine ensures secure and reliable connections for a variety of hydraulic hoses. Finished in a sleek black color, it combines durability with a modern design, making it an essential addition to any workshop.

Key Features

High Crimping Power: The 650T crimping force allows for effective crimping of tough hydraulic hoses, ensuring strong and leak-proof connections.
Wide Hose Compatibility: Capable of crimping hoses from 6mm to 76mm, this machine is versatile enough for different applications across various industries.
Advanced PLC Control System: The integrated PLC control system enhances operational efficiency and accuracy, allowing for easy programming and monitoring of the crimping process.
Robust Construction: Made from high-quality materials, this hydraulic crimper is designed for longevity and can withstand the demands of intensive use in industrial environments.
User-Friendly Interface: The intuitive control panel provides easy access to settings, making it simple for operators to achieve precise crimping results.

Advantages

1. Reliable Performance: The powerful crimping capability ensures secure connections, reducing the risk of leaks and failures in hydraulic systems.
2. Increased Efficiency: The PLC control system streamlines operations, allowing for faster setup and execution while minimizing errors.
3. Durability: Constructed to endure tough working conditions, this machine is built for longevity, making it a cost-effective investment.
4. Minimal Maintenance: Designed with efficiency in mind, the low-maintenance nature of this machine ensures it remains operational with less downtime.

crimping range/skiving range	6-76mm(1/4''-3''inner diameter of hose)
quantity of dies	15 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L/16L(Optional)
system pressure	31.5Mpa/315 bar
motor power	5.5kw,3 phase
voltage	380V/220v depend on client demand
crimping force	1500T
work efficiency	pcs/h
maximum open diameter	158mm
the max open tolerance	±53mm
package dimension	11009001730mm
machine dimension	10008001630mm
Net weight	1250kg
Gross weight	1300kg

TECHNICAL DATA

Model	FY-CBK-120 AC Hose Crimping Machine
Crimping Range	6-76(mm)
Crimping Force	1500(T)
Hose Size	1/4-3(inch)
Max. Opening	158(mm)
Die Sets	15
The Max Open Tolerance	+53mm
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Output Volume Of Pump	10L/16L
Standard Voltage	380(V)
Motor Power	5.5(KW)
Length	1000(mm)
Width	800(mm)
Height	1630(mm)
Weight	1250(KG)

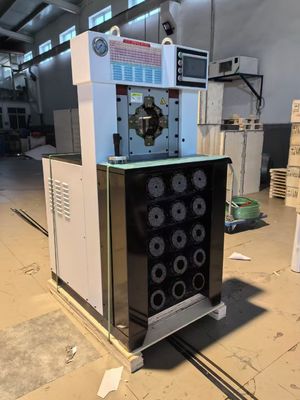

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 0

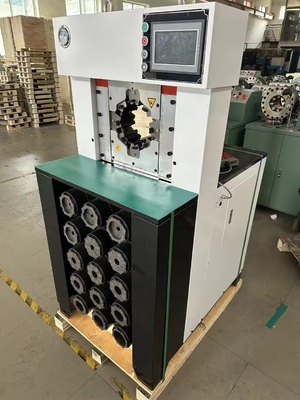

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 1

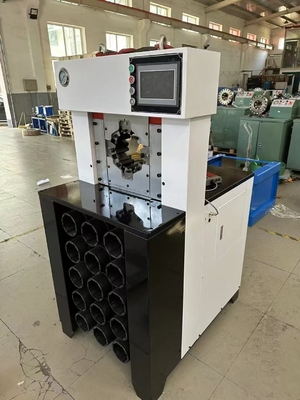

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 2

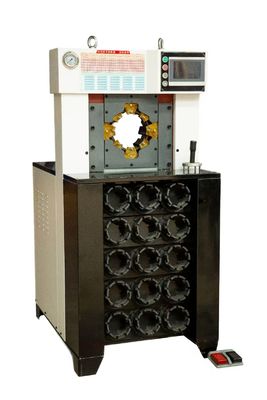

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 3

NOTE

• " * " for non standard mold

• Customized die sets are available

• Special voltage 380V are availbale

► SUPER THIN CRIMPING HEAD

New cylinder making technology which seprate the cylinder with the crimping head, enbles a wide working stroke of the working area, so that the machine can be able to crimp elbow or irregular tubes

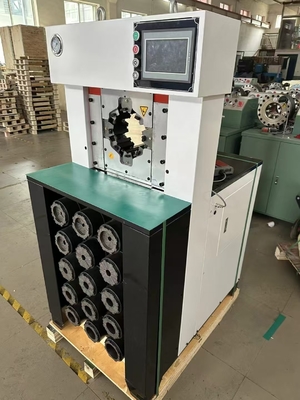

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 4

► NEW DIE SETS

15 die sets, range from 6mm to 76mm, suitable for hose from 1/4 to 3 inch with six spirals crimping

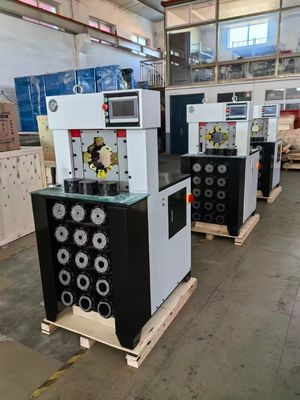

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 5

► HEAVY DUTY MACHINE RACK

With big cylinder hydraulic system, the machine capable of pressing hose up to 6 spirals

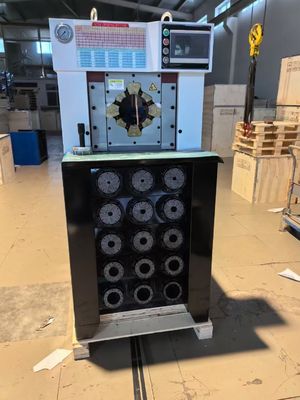

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 6

► BIG DOUBLE USE FOOT PEDAL

The foot pedal frees both of the operator's hand and improve the working efficiency much

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 7

► OEM SERVICE AVAILABLE

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 8

► APPLICATION SHOW

FY-CBK-120 is especially designed for big elbow fittings crimping, it is wodely used in car ac hose, hydraulic oil hose, air hose, water pipe, industrial hoses, wires and cables crimping work.

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 9

3 Inch Hydraulic Hose Crimping Machine 6-76mm with PLC Control 10
