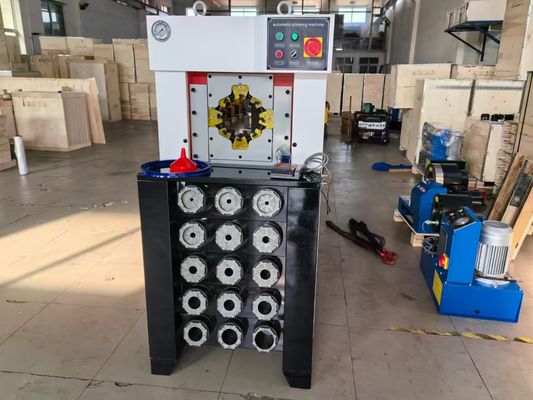

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm

Name: 3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-CBK-120
Price: 5,150.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-CBK-120
MOQ:	1 set
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Weight:

1.25Ton

Condition:

New

Dimension(l*w*h):

100*80*163CM

Warranty:

12 Months

After-sales Service Provided:

Video Technical Support,Online Support

Voltage:

380V

Power(w):

5.5KW

Crimping Force:

1500T

Color:

Black/Blue Etc Or Custom

Crimping Range:

6-76mm,1/4" To 3'',1/4''-3''

Product Name:

6-76 Mm High Pressure Hydraulic Hose Crimping Machine

Type:

Hydraulic Crimping Tools

Application:

Crimp Hose

Free Dies:

15 Sets

Rated Pressure:

31.5MPA

Keywords:

3 Inch Hydraulic Hose Crimping Machine

HIGH LIGHT:

Car Ac Hose Crimping Machine, AC Hose Crimping Machine, 3 Inch Automotive Ac Crimping Tool

Product Name:

3-Inch 1/4 To 3 Inch Black Color Super Thickness Hydraulic Hose Crimping Machine With 15 Dies 6-76mm Botton Control

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

3-inch hydraulic hose crimper

hose crimping machine with dies

AC hose crimper 6-76mm

Product Description

3-Inch 1/4 To 3 Inch Black Color Super Thickness Hydraulic Hose Crimping Machine With 15 Dies 6-76mm Botton Control

3-Inch Hydraulic Hose Crimping Machine - Super Thickness with 15 Dies

Product Description

Introducing the 3-Inch Hydraulic Hose Crimping Machine, designed for heavy-duty applications and capable of crimping hoses from 1/4 inch to 3 inches (6mm to 76mm). This robust machine features a sleek black finish and is equipped with 15 dies to accommodate a variety of hose sizes, ensuring versatility and precision in hose assembly.

Key Features

Super Thickness Design: Engineered for durability, this crimping machine is built with super-thick materials, making it ideal for high-pressure applications and ensuring long-lasting performance.
Wide Hose Compatibility: With the ability to crimp hoses ranging from 1/4 inch to 3 inches, this machine meets the needs of various industries, including automotive, construction, and manufacturing.
15 Die Selection: The inclusion of 15 different dies allows for precise crimping across a broad spectrum of hose sizes, ensuring a secure fit for every application.
Button Control Operation: The user-friendly button control system simplifies the crimping process, making it easy for operators to achieve consistent and accurate results.
Compact and Efficient: Designed to optimize workspace, this machine provides powerful crimping capabilities without taking up excessive space in your workshop.

Advantages

Reliable Crimping Performance: The robust design ensures strong, leak-proof connections, reducing the risk of hose failures in high-pressure environments.
Versatile Applications: Suitable for a wide range of hydraulic hoses, this machine is perfect for various industrial and automotive tasks.
Ease of Use: The button control system allows for straightforward operation, making it accessible even for operators with minimal experience.
Durability: Built with high-quality materials, this crimper is designed to withstand demanding conditions, ensuring reliability over time.

crimping range/skiving range	6-76mm(1/4''-3''inner diameter of hose)
quantity of dies	15 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L/16L(Optional)
system pressure	31.5Mpa/315 bar
motor power	5.5kw,3 phase
voltage	380V/220v depend on client demand
crimping force	1500T
work efficiency	pcs/h
maximum open diameter	158mm
the max open tolerance	±53mm
package dimension	11009001730mm
machine dimension	10008001630mm
Net weight	1250kg
Gross weight	1300kg

TECHNICAL DATA

Model	FY-CBK-120 AC Hose Crimping Machine
Crimping Range	6-76(mm)
Crimping Force	1500(T)
Hose Size	1/4-3(inch)
Max. Opening	158(mm)
Die Sets	15
The Max Open Tolerance	+53mm
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Output Volume Of Pump	10L/16L
Standard Voltage	380(V)
Motor Power	5.5(KW)
Length	1000(mm)
Width	800(mm)
Height	1630(mm)
Weight	1250(KG)

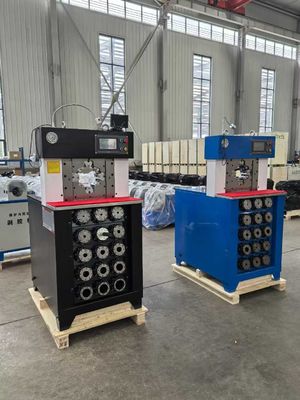

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 0

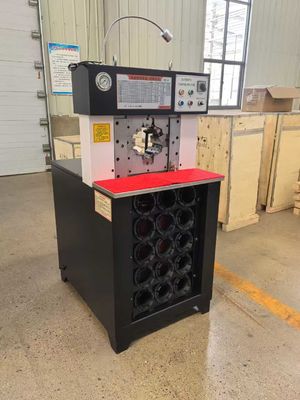

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 1

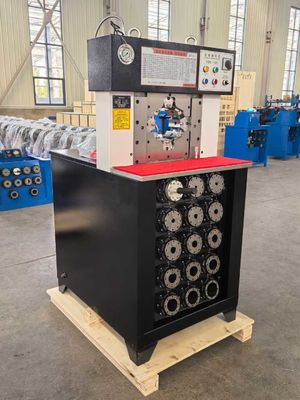

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 2

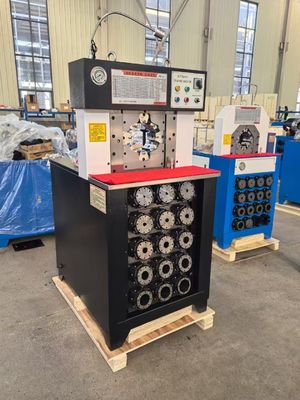

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 3

NOTE

• " * " for non standard mold

• Customized die sets are available

• Special voltage 380V are availbale

► SUPER THIN CRIMPING HEAD

New cylinder making technology which seprate the cylinder with the crimping head, enbles a wide working stroke of the working area, so that the machine can be able to crimp elbow or irregular tubes

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 4

► NEW DIE SETS

15 die sets, range from 6mm to 76mm, suitable for hose from 1/4 to 3 inch with six spirals crimping

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 5

► HEAVY DUTY MACHINE RACK

With big cylinder hydraulic system, the machine capable of pressing hose up to 6 spirals

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 6

► BIG DOUBLE USE FOOT PEDAL

The foot pedal frees both of the operator's hand and improve the working efficiency much

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 7

► OEM SERVICE AVAILABLE

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 8

► APPLICATION SHOW

FY-CBK-120 is especially designed for big elbow fittings crimping, it is wodely used in car ac hose, hydraulic oil hose, air hose, water pipe, industrial hoses, wires and cables crimping work.

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 9

3-Inch Hydraulic Hose Crimping Machine with 15 Dies 6-76mm 10
