2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies

Brand Name:	FY
Model Number:	FY-51BY
MOQ:	1 set
Price:	USD$ 1700/1650
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shanghai

Certification:

Voltage:

220V/240V/380V/415V(Optional)

Gross Weight:

326kgs

Net Weight:

310kg

Power(w):

3KW

Dimension(l*w*h):

860*640*1300 Mm

Package Dimension:

900*685*1410 Mm

Warranty:

1 Year

Condition:

New

After-sales Service Provided:

Video Technical Support,Online Support

Crimping Force:

600Ton

Product Name:

2" Electric 6-51mm 1/4 To 2 Inch High Model Basic Model Button System 10 Dies Big Power Portable Hydraulic Hose Crimping Machine/hose Crimper/hose Pressor Excavator Hose Press Tool

Crimping Range:

6-51mm

Color:

Blue,blue Or Customize

Application:

Crimp Hose

Free Dies:

10sets

System Pressure:

31.5MPA

Output Volume Of Pump:

2.5L/5L/10L

HIGH LIGHT:

Hydraulic Hose Crimping Machine, Flexible Hydraulic Hose Crimping Machine, Flexible Hose Crimping Machine

Packaging Details:

wooden box

Supply Ability:

300 sets per month

Highlight:

2 inch hydraulic hose crimper

electric hydraulic crimper with dies

portable hose crimper 6-51mm

Product Description

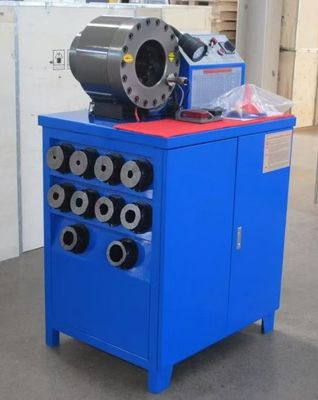

2" Electric Hydraulic Hose Crimping Machine - High Model

This powerful and portable 2" electric hydraulic hose crimping machine is designed for efficient crimping of hoses ranging from 6mm to 51mm (1/4 inch to 2 inches). Featuring a basic model button system and including 10 dies for versatile applications, it's an essential tool for excavator and hydraulic hose assembly.

Key Features

Electric Operation: Ensures consistent power and performance for precise crimping
Wide Compatibility: Handles hoses from 6mm to 51mm (1/4" to 2")
Intuitive Controls: Basic model button system for easy operation
10 Dies Included: Quick adjustments for various hose sizes
Portable Design: Compact and lightweight for on-site use
Powerful Performance: 600-ton crimping force for secure connections

Technical Specifications

Attribute	Value
Model	FY-51BY Hose Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	600 Ton
System Pressure	31.5 MPA
Motor Power	3KW
Voltage	220V/240V/380V/415V (Optional)
Work Efficiency	200 pcs/h
Dimensions (L×W×H)	860×640×1300 mm
Net Weight	310 kg
Gross Weight	326 kg
Warranty	1 Year

Advanced Features

Two Mode Operation

Automatic or semi-automatic mode can be selected for different working requirements.

Foot Pedal Switch

Free your hands for big hose crimping with convenient foot pedal operation.

High Quality Motor

Copper wire aluminum motor provides good heat dissipation for continuous operation.

Safe Die Storage

Integrated storage box keeps die sets organized and protected.

Applications

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies 11

Customization Options

Non-standard die sets available
Customized die sets upon request
Special voltage configurations (220V, 240V, 380V, 415V)
Optional quick change tool
UC control available
