AC Hose Crimping Machine
Created with Pixso.

Button Control System Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening for Efficient Crimping

name

Button Control System Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening for Efficient Crimping

Brand Name: FY
Model Number: FY-CBK120
MOQ: 1 set
Price: USD$ 5850
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10000 SETS PER MONTH
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Crimping Speed:
10-15s/time
Quantity Of Dies:
15 Sets
Output Volume Of Pump:
10L/16L
Motor Power:
5.5KW
Crimping Precision:
±0.01mm
Size:
100*80*163 Cm
Weight:
1250KG
Power Supply:
220V/380V/415V/440V
Product Name:
Button Control Systerm 3 Inch Big Pressure Crimping Force Hydraulic Hose Crimping Machine With 6-76mm Crimping Range And 165mm Max Opening For Efficient Crimping
Color:
Blue
Packaging Details:
STANDARD WOODEN BOX
Supply Ability:
10000 SETS PER MONTH
Highlight:

Button Control System Hydraulic Hose Crimping Machine

,

6-76mm Crimping Range Hose Crimper

,

165mm Max Opening AC Hose Crimping Machine

Product Description
Button Control System 3 Inch Hydraulic Hose Crimping Machine
The Button Control System 3 Inch Hydraulic Hose Crimping Machine is a powerful and efficient solution designed for precise crimping of hydraulic hoses. With the ability to handle hoses ranging from 6mm to 76mm in diameter and a maximum opening of 165mm, this machine is perfect for hydraulic repair shops, automotive service centers, and oil distribution companies. Engineered for high performance, it delivers exceptional crimping force, making it an essential tool for professionals in various industries.
Key Features
  • Wide Crimping Range: This hydraulic hose crimping machine can crimp hoses from 6mm to 76mm, accommodating a variety of hose types and sizes for multiple applications.
  • High Crimping Force: Designed to provide significant crimping power, this machine efficiently handles heavy-duty hoses, ensuring secure and reliable connections.
  • Button Control System: The user-friendly button control interface allows for intuitive operation, making it easy for both experienced technicians and new users to manage crimping tasks effectively.
  • Maximum Opening of 165mm: The generous maximum opening facilitates the handling of larger fittings and configurations, enhancing versatility during crimping operations.
  • Durable and Robust Construction: Built from high-quality materials, this machine is designed for longevity, ensuring reliable performance even under continuous use in demanding environments.
Advantages
  • Enhanced Productivity: The combination of wide crimping range and high crimping force allows technicians to complete tasks quickly and effectively, improving overall workshop efficiency.
  • Versatile Application: Ideal for hydraulic repair shops, automotive services, and oil applications, this machine meets the diverse crimping needs of various industries.
  • Cost-Effective Solution: By centralizing multiple hose crimping capabilities in one machine, businesses can reduce equipment costs and operational expenses.
  • Improved Safety: Equipped with essential safety mechanisms, this machine ensures secure operation, reducing risks for operators during the crimping process.
  • User-Friendly Design: The straightforward button control system allows for easy operation, ensuring quick adaptation for all users and minimizing training time.

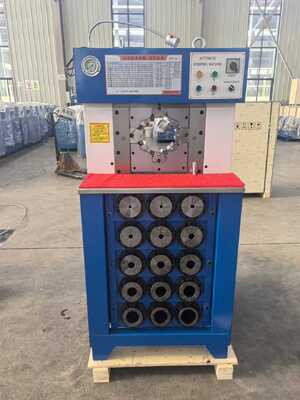

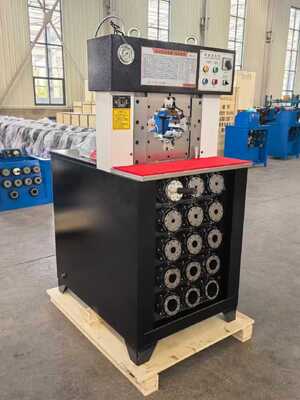

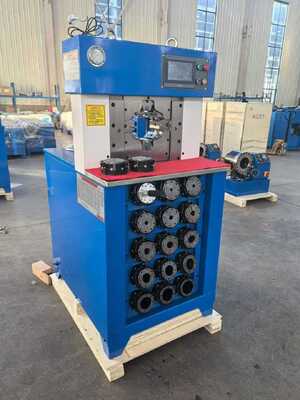

Button Control System Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening for Efficient Crimping 0 Button Control System Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening for Efficient Crimping 1 Button Control System Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening for Efficient Crimping 2
Technical Specifications
Specification Value
Crimping Range 6-76 mm (1/4~3")
Quantity of Dies 15 sets
Accuracy 0.01 mm
Output Volume of Pump 10L/16L
System Pressure 31.5 mpa
Motor Power 5.5kw/7.5Kw
Voltage 110V/220V/380V/415V 50/60Hz (optional)
Crimping Force 1500 t
Work Efficiency 300 pcs/h
Maximum Open Diameter 165 mm
Max Open Tolerance 60 ±mm
Machine Dimension 1000*800*1630 mm
Package Dimension 1100*850*1730 mm
Net Weight 1250 kg
Gross Weight 1300 kg
Control System Specifications
Specification Value
Control System PLC/BUTTON/DIGITAL PANEL
Model AC Hose Crimping Machine
Crimping Speed 10-15s/time
Weight 1250 KG
Motor Power 5.5 KW
Quantity of Dies 15 Sets
Max Opening 158 mm
Output Volume of Pump 10L/16L
Crimping Type One-time Crimping
Crimping Range 6-76 mm
Applications
FY Hose Crimping Machine, Model Number FY-CBK120, is a perfect solution for crimping 3 inch hoses, from 6-76mm in diameter. It features one-time crimping technology with a motor power of 5.5KW and system pressure of 31.5mpa. This machine is widely used for various applications including crimping air, water, fuel, and oil lines, as well as hydraulic hoses that require high pressure to work properly. It is ideal for automotive, industrial, and commercial applications.
Frequently Asked Questions
What sizes of hoses can this machine crimp?
This hydraulic hose crimping machine can handle hoses ranging from 6mm to 76mm, perfect for various applications.
How does the button control system enhance operation?
The button control system simplifies operation, allowing for quick and easy management of crimping tasks without requiring extensive training.
What is the significance of the maximum opening of 165mm?
The maximum opening of 165mm allows the machine to accommodate larger fittings, enhancing versatility for different crimping tasks.
Is this machine suitable for heavy-duty applications?
Yes, designed to provide significant crimping force, this hydraulic hose crimping machine is perfect for heavy-duty hose applications.
How durable is the machine for continuous use?
Constructed from high-quality materials, this machine is built for durability and can withstand the rigors of daily use in industrial environments.
Conclusion
The Button Control System 3 Inch Big Pressure Hydraulic Hose Crimping Machine is an essential tool for professionals focused on hydraulic applications. Combining a wide crimping range, significant crimping force, and user-friendly operation, it enhances productivity and reliability in hose management. Invest in this high-performance hydraulic hose crimping machine to elevate your operational efficiency and achieve outstanding results in your hydraulic tasks!

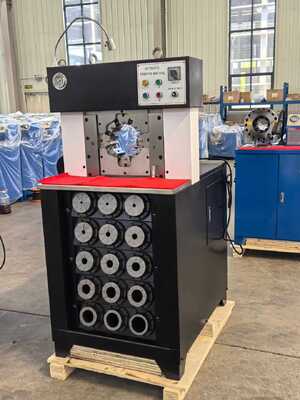

Button Control System Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening for Efficient Crimping 3
Customization Options
Achieve perfect crimping performance with our custom FY-CBK120 AC Hose Crimping Machine. It features FY Brand Name, system pressure of 31.5mpa, Max Opening of 158mm, Crimping Range of 6-76mm, Motor Power of 5.5KW and 15 Sets of dies, perfect for 3 inch hose crimping applications.

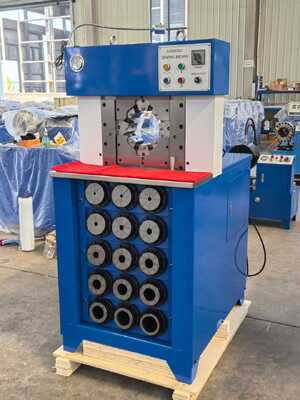

Button Control System Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening for Efficient Crimping 4 Button Control System Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening for Efficient Crimping 5
Support and Services
Our AC Hose Crimping Machine comes with technical support and service for your convenience. Our experts are available to help you with any questions or issues you may have. We provide comprehensive training sessions on product use, along with step-by-step instructions. We also offer a wide range of spare parts and accessories including crimping heads, hose cutters, and more.
Packing and Shipping
The AC Hose Crimping Machine is securely packaged in a wooden box with additional styrofoam cushioning to prevent damage during shipping. All packages are tracked until delivery to ensure safe arrival.

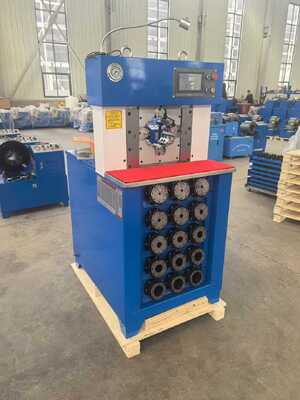

Button Control System Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening for Efficient Crimping 6
Additional Product Information
  • Brand Name: FY
  • Model Number: FY-CBK120
  • Origin: China
  • Construction Material: Durable metal
  • Installation Time: Approximately 2 hours
