AC Hose Crimping Machine
Created with Pixso.

Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening

name

Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening

Brand Name: FY
Model Number: FY-CBK120
MOQ: 1 set
Price: USD$ 5850
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10000 SETS PER MONTH
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Crimping Speed:
10-15s/time
Quantity Of Dies:
15 Sets
Output Volume Of Pump:
10L/16L
Motor Power:
5.5KW
Crimping Precision:
±0.01mm
Size:
100*80*163 Cm
Weight:
1250KG
Power Supply:
220V/380V/415V/440V
Product Name:
Button Control Black Colors 3 Inch 6 Wires With Fast Change Mould Tools Hydraulic Hose Crimping Machine With 6-76mm Crimping Range And 165mm Max Opening
Color:
Blue
Packaging Details:
STANDARD WOODEN BOX
Supply Ability:
10000 SETS PER MONTH
Highlight:

Button Control System Hydraulic Hose Crimping Machine

,

6-76mm Crimping Range Hose Crimper

,

165mm Max Opening AC Hose Crimping Machine

Product Description
Button Control Black Color 3 Inch Hydraulic Hose Crimping Machine
The Button Control Black Color 3 Inch Hydraulic Hose Crimping Machine is an advanced solution designed for efficient crimping of hydraulic hoses. With a crimping range of 6mm to 76mm and a maximum opening of 165mm, this machine is perfect for hydraulic repair shops, automotive service centers, and oil distribution companies. Its innovative design features fast change mould tools, ensuring a seamless and efficient crimping experience.
Key Features
  • Versatile Crimping Range: Accommodates hoses ranging from 6mm to 76mm for various automotive and industrial applications
  • High Capacity for 6 Wires: Handles hoses with up to 6 wires for high-pressure hydraulic systems
  • Fast Change Mould Tools: Integrated system allows for quick die swaps to minimize downtime
  • User-Friendly Button Control System: Intuitive controls suitable for both experienced technicians and newcomers
  • Maximum Opening of 165mm: Handles larger fittings and configurations for enhanced versatility
Advantages
  1. Improved Workflow Efficiency: Quick mold changes reduce downtime and increase productivity
  2. Wide Applicability: Suitable for automotive repair, hydraulic services, and oil applications
  3. Cost-Effective: Combines multiple hose sizes in one machine, reducing equipment costs
  4. Enhanced Safety Features: Built-in safety mechanisms ensure secure operation
  5. Robust Construction: High-quality materials provide long-lasting durability for demanding environments

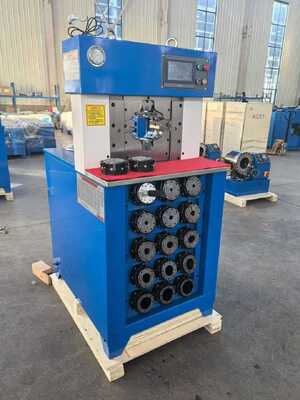

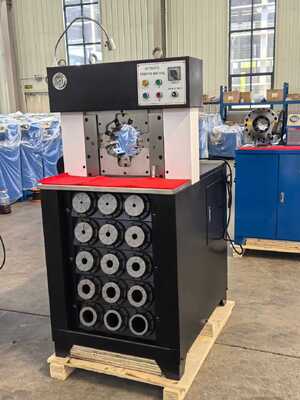

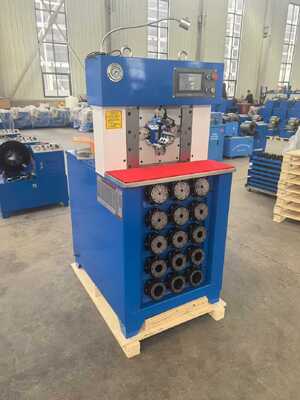

Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening 0 Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening 1 Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening 2
Technical Specifications
SpecificationDetails
Crimping Range6-76 mm (1/4~3")
Quantity of Dies15 sets
Accuracy0.01 mm
Output Volume of Pump10L/16L
System Pressure31.5 mpa
Motor Power5.5kw/7.5Kw
Voltage110V/220V/380V/415V 50/60Hz (optional)
Crimping Force1500 t
Work Efficiency300 pcs/h
Maximum Open Diameter165 mm
Max Open Tolerance60 ±mm
Machine Dimension1000*800*1630 mm
Package Dimension1100*850*1730 mm
Net Weight1250 kg
Gross Weight1300 kg
Control System Specifications
SpecificationDetails
Control SystemPLC/BUTTON/DIGITAL PANEL
ModelAC Hose Crimping Machine
Crimping Speed10-15s/time
Weight1250 KG
Motor Power5.5 KW
Quantity of Dies15 Sets
Max Opening158 mm
Output Volume of Pump10L/16L
Crimping TypeOne-time Crimping
Crimping Range6-76 mm
Applications
FY Hose Crimping Machine, Model Number FY-CBK120, is a perfect solution for crimping 3 inch hoses from 6-76mm in diameter. It features one-time crimping technology with a motor power of 5.5KW and system pressure of 31.5mpa. This machine is widely used for various applications including crimping air, water, fuel, and oil lines, as well as hydraulic hoses that require high pressure to work properly. It is ideal for automotive, industrial, and commercial applications.
Frequently Asked Questions
What sizes of hoses can this machine crimp?
The hydraulic hose crimping machine accommodates hoses ranging from 6mm to 76mm, suitable for various applications in different industries.
How does the fast change mould system benefit operations?
The fast change mould system allows for quick die swaps, significantly reducing downtime and enhancing workflow efficiency.
Is this machine suitable for heavy-duty use?
Yes, it is designed to handle hoses with up to 6 wires, making it ideal for heavy-duty and high-pressure hydraulic applications.
How user-friendly is the operation?
The button control system is intuitive and straightforward, enabling quick and effective operation even for users with limited experience.
How durable is this machine?
Constructed from high-quality materials, this hydraulic hose crimping machine is built to withstand continuous use and provide long-lasting performance in demanding environments.
Conclusion
The Button Control Black Color 3 Inch Hydraulic Hose Crimping Machine is a vital tool for professionals in the hydraulic industry. With its broad crimping capabilities, fast change mould tools, and user-friendly design, it enhances productivity and reliability in hose management. Invest in this high-performance hydraulic hose crimping machine to meet your operational needs and achieve exceptional results in your hydraulic applications!
Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening 3
Customization Options
Achieve perfect crimping performance with our custom FY-CBK120 AC Hose Crimping Machine. It features FY Brand Name, system pressure of 31.5mpa, Max Opening of 158mm, Crimping Range of 6-76mm, Motor Power of 5.5KW and 15 Sets of dies, perfect for 3 inch hose crimping applications.
Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening 4 Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening 5
Support and Services
Our AC Hose Crimping Machine comes with technical support and service for your convenience. Our experts are available to help you with any questions or issues you may have. We provide comprehensive training sessions on product use, along with step-by-step instructions. We also offer a wide range of spare parts and accessories including crimping heads, hose cutters, and more.
Packing and Shipping
The AC Hose Crimping Machine is securely packaged in a wooden box with additional styrofoam cushioning to prevent damage during shipping. All packages are tracked until delivery to ensure safe arrival.
Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range and 165mm Max Opening 6
Additional Product Information
  • Brand Name: FY
  • Model Number: FY-CBK120
  • Origin: China
  • Construction Material: Durable metal
  • Installation Time: Approximately 2 hours
