2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies

name

2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies

Brand Name: FanYing
Model Number: FY-51QY
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10000 SETS PER MONTH
Detail Information
Product Description
Detail Information
Place of Origin:
China,Shanghai
Weight:
310KG
System Pressure:
31.5mpa
Material:
Rubber
Name:
Rubber Hose Crimping Machine
Warranty:
1 Year
Crimping Force:
600T
Type:
Crimping Machine
Product Name:
2”Eｌｅｃｔｒｉｃ　 Crimping Size Reach To 2.5 Inch Inner Hose Diameter Big Force 600T Crimping Force Rubber Hose Crimping Machine With 6-51mm Range And 10 Interchangeable Dies With Fast Change Mould Tools
Packaging Details:
STANDARD WOODEN BOX
Supply Ability:
10000 SETS PER MONTH
Highlight:

600T Crimping Force Rubber Hose Crimping Machine

,

6-51mm Crimping Range Hydraulic Hose Crimper

,

10 Interchangeable Dies Hose Crimping Equipment

Product Description

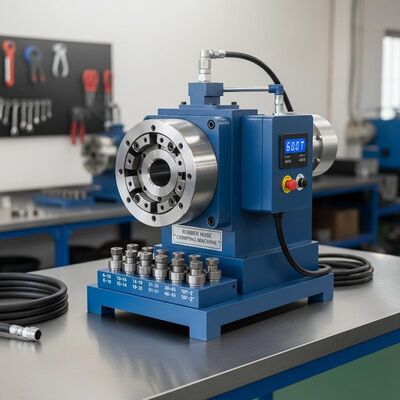

2" Electric Rubber Hose Crimping Machine
The 2" Electric Rubber Hose Crimping Machine delivers exceptional performance for hose crimping applications. Engineered to handle inner hose diameters up to 2.5 inches with a powerful 600-ton crimping force, this machine is ideal for hydraulic repair shops, automotive service centers, and oil industries across global markets. Featuring a versatile crimping range of 6mm to 51mm and 10 interchangeable dies, it provides unmatched efficiency and flexibility.
Key Features
  • High Crimping Force: 600-ton crimping capacity ensures secure and reliable hose connections for demanding applications
  • Versatile Size Range: Accommodates hoses from 6mm to 51mm for comprehensive crimping capabilities
  • Interchangeable Dies: 10 die sets enable quick size changes and operational flexibility
  • Fast Change Mould System: Rapid die transitions minimize downtime in busy workshop environments
  • Robust Construction: High-quality materials ensure durability and long-term reliability
Operational Advantages
  • Enhanced Productivity: Powerful crimping capabilities and quick die changes maximize work output
  • Cost Efficiency: Versatile hose size handling reduces need for multiple specialized machines
  • User-Friendly Operation: Intuitive controls suitable for operators of all experience levels
  • Reliable Performance: Heavy-duty construction minimizes downtime in demanding applications
  • Broad Industry Application: Serves hydraulic, automotive, construction, and oil distribution sectors
2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 0 2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 1 2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 2 2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 3
Technical Specifications
Crimping Range 6-51 mm
Crimping Force 600 T
Quantity of Dies 10 sets
Accuracy 0.01 mm
System Pressure 31.5 MPa
Motor Power 3 kW
Voltage Options 220V/240V/380V/415V
Work Efficiency 200 pcs/h
Maximum Open Diameter 114 mm
Machine Dimensions 860 * 640 * 1300 mm
Net Weight 310 kg
Warranty 1 Year
Industrial Applications
The FanYing FY-51QY Electric Hydraulic Rubber Hose Crimping Machine serves multiple industrial sectors including automotive, construction, machinery, mining, aviation, railway, chemical, and oil & gas industries. Ideal for crimping hydraulic and pneumatic rubber hoses, fuel hoses, oil pipes, and various industrial rubber hose applications.
Product Customization & Support
Manufactured in Shanghai, China with comprehensive 1-year warranty. Complete technical support available 24/7 with trained technicians providing onsite installation, training, maintenance, and repair services.
Frequently Asked Questions
What sizes of hoses can this machine crimp?
The machine handles hoses ranging from 6mm to 51mm, suitable for various rubber hose applications.
How does the fast change mould system enhance workflow?
The system allows for quick die swaps, significantly reducing downtime and enhancing workflow efficiency.
What is the maximum crimping force of this machine?
This machine offers an impressive crimping force of 600 tons for securely crimping high-pressure rubber hoses.
Is this machine suitable for heavy-duty applications?
Yes, designed for high crimping force, this machine is ideal for heavy-duty applications in hydraulic and automotive fields.
How durable is the construction of this machine?
Constructed from high-quality materials, the machine is built for longevity and reliability in demanding environments.

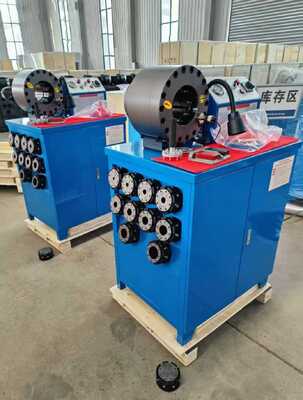

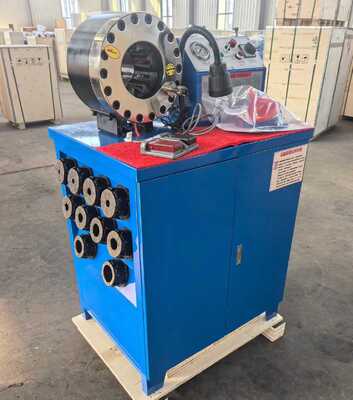

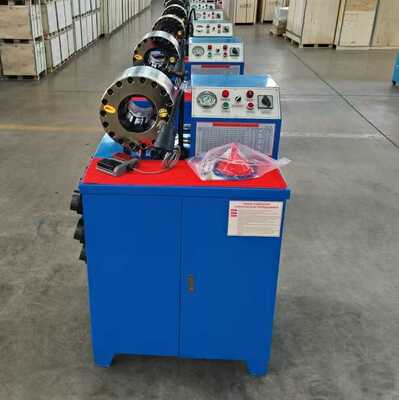

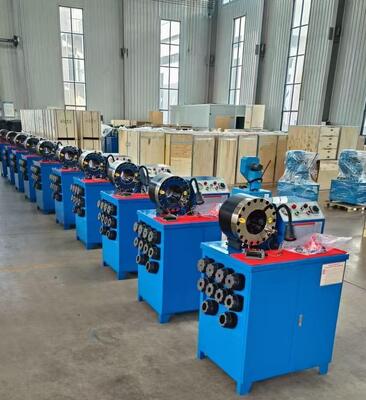

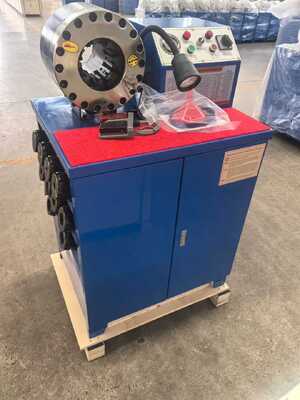

Product Gallery
2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 4 2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 5 2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 6 2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 7 2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 8 2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 9 2 Inch 600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies 10
The 2 Inch 600T Rubber Hose Crimping Machine is an essential tool for professionals in the hydraulic and automotive industries. With its high crimping force, versatile design, and user-friendly operation, it boosts productivity and ensures reliable hose management. Invest in this high-performance rubber hose crimping machine to meet your operational demands and achieve outstanding results in your crimping applications!
