Rubber Hose Crimping Machine
Created with Pixso.

2 Inch 600T 31.5Mpa Rubber Hose Crimping Machine Higher Model Blue Color Button Control Systerm 220v/240v/380v/415v Voltage With 6-51mm Crimping Range And 10 Interchangeable Dies

2 Inch 600T 31.5Mpa Rubber Hose Crimping Machine Higher Model Blue Color Button Control Systerm 220v/240v/380v/415v Voltage With 6-51mm Crimping Range And 10 Interchangeable Dies

Brand Name: FanYing
Model Number: FY-51BY
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10000 SETS PER MONTH
Detail Information
Place of Origin:
China,Shanghai
Weight:
310 Kg
System Pressure:
315 Bar
Material:
Rubber/Hose
Name:
Rubber Hose Crimping Machine
Warranty:
1 Year
Crimping Force:
600T/0.6MT
Type:
Crimping Machine/crimper
Product Name:
2 Inch 600T 31.5Mpa Rubber Hose Crimping Machine Higher Model Blue Color Button Control Systerm 220v/240v/380v/415v Voltage With 6-51mm Crimping Range And 10 Interchangeable Dies
Color:
Blue Or As Client Demand
Packaging Details:
STANDARD WOODEN BOX
Supply Ability:
10000 SETS PER MONTH
Product Description
2 Inch 600T 31.5Mpa Rubber Hose Crimping Machine Higher Model Blue Color Button Control Systerm 220v/240v/380v/415v Voltage With 6-51mm Crimping Range And 10 Interchangeable Dies

2 Inch 600T Rubber Hose Crimping Machine — 6–51 mm, 31.5MPa, Button Control, Blue, 220/240/380/415V, 10 Dies
Product Overview
The 2 Inch 600T Rubber Hose Crimping Machine is a higher-model workshop solution for professional hose assembly and repair. Built with 31.5MPa crimp pressure capability and button control system, this Rubber Hose Crimping Machine supports a 6–51 mm crimping range (up to 2 inch class) and comes with 10 interchangeable dies for faster job changeovers. With multiple voltage options (220V/240V/380V/415V), it is well suited for hydraulic/car repair shops, oil/hose service providers, and industrial maintenance workshops serving the USA, Europe, and Southeast Asia.
Product Features & Characteristics
• 600T High Crimping Force
Designed to deliver strong compression for secure, dependable hose-to-fitting crimps in demanding repair environments.
• 31.5MPa Pressure System
Helps support stable crimp performance for consistent results across repeated cycles.
• Button Control System
Simple, operator-friendly control helps technicians run crimp cycles with less complexity on daily work.
• 6–51 mm Crimping Range (2 Inch Class)
Covers common medium rubber hose sizes used in automotive, industrial, and service applications.
• 10 Interchangeable Dies Included
Supports multi-size production needs and helps reduce downtime during hose and fitting changes.
• Blue Higher-Model Industrial Finish
Durable and workshop-ready construction for frequent daily use.
Advantages
• More Reliable Crimp Quality: High tonnage and stable pressure support tight, leak-resistant connections.
• Better Workshop Efficiency: 10 dies reduce the time spent switching tooling for common jobs.
• Flexible Power Compatibility: Available in 220V/240V/380V/415V to match power systems across key markets.
• Ideal for Repair Shops: Button control and robust design make it practical for hydraulic/car repair and oil/hose services.

  1. 2 Inch 600T 31.5Mpa Rubber Hose Crimping Machine Higher Model Blue Color Button Control Systerm 220v/240v/380v/415v Voltage With 6-51mm Crimping Range And 10 Interchangeable Dies 0

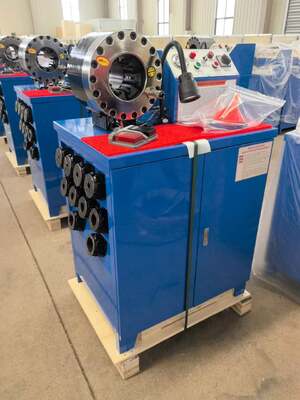

2 Inch 600T Rubber Hose Crimping Machine overview

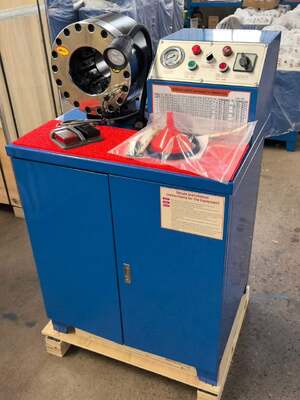

Side view of hose crimping machine
Additional perspective of crimping machine
Crimping machine operational setup
Detailed view of crimping mechanism
Close-up of machine components

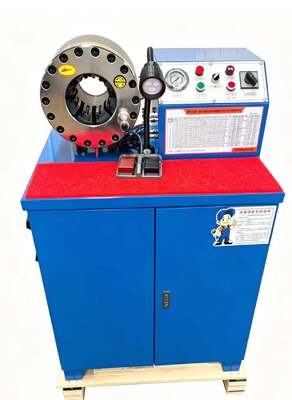

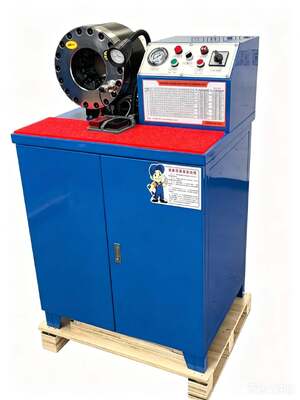

2 Inch 600T Rubber Hose Crimping Machine front view
2 Inch 600T Rubber Hose Crimping Machine operational view
Close-up of crimping machine die mechanism
Detailed view of crimping machine construction
Additional view of hose crimping machine
Hose crimping machine component detail
Crimping machine technical detail
Hose crimping machine assembly view
Technical Specifications
Specification Value
Crimping Range 6-51 mm
Crimping Force 600 T
Quantity of Dies 10 sets
Accuracy 0.01 mm
System Pressure 31.5 MPa
Motor Power 3 kW
Voltage Options 220V/240V/380V/415V
Work Efficiency 200 pcs/h
Maximum Open Diameter 114 mm
Machine Dimensions 860 * 640 * 1300 mm
Net Weight 310 kg
Warranty 1 Year
Operational Advantages
  • Enhanced Efficiency: Strong crimping force and quick-change dies increase workshop productivity
  • Cost-Effective Solution: Accommodates multiple hose sizes, reducing equipment investment
  • User-Friendly Operation: Intuitive design requires minimal training for technicians
  • Dependable Performance: Heavy-duty construction minimizes operational interruptions
  • Multi-Industry Application: Suitable for hydraulic repair, automotive service, and oil industries
Industrial Applications

The FanYing FY-51QY Electric Hydraulic Rubber Hose Crimping Machine serves multiple industrial sectors including automotive, construction, machinery, mining, aviation, railway, chemical, and oil & gas industries. Ideal for crimping hydraulic and pneumatic rubber hoses, fuel hoses, oil pipes, and various industrial rubber hose applications.

Product Support & Customization

Manufactured in Shanghai, China with comprehensive 1-year warranty. Complete technical support available 24/7 with trained technicians providing onsite installation, training, maintenance, and repair services.

Frequently Asked Questions
What sizes of hoses can this machine crimp?
The rubber hose crimping machine can handle hoses ranging from 6mm to 51mm, making it suitable for various rubber hose applications.
How does the fast change mould system enhance workflow?
The fast change mould system allows for quick swaps between dies, significantly reducing downtime and enhancing workflow efficiency in busy settings.
What is the maximum crimping force of this machine?
This machine offers an impressive crimping force of 600 tons, capable of securely crimping high-pressure rubber hoses.
Is this machine suitable for heavy-duty applications?
Yes, designed for high crimping force, this machine is ideal for heavy-duty applications in hydraulic and automotive fields.
How durable is the construction of this machine?
Constructed from high-quality materials, the machine is built for longevity and reliability, even with continuous use in demanding environments.
Professional-Grade Performance: The 2 Inch 600T Rubber Hose Crimping Machine is an essential tool for professionals in the hydraulic and automotive industries. With its high crimping force, versatile design, and user-friendly operation, it boosts productivity and ensures reliable hose management. Invest in this high-performance rubber hose crimping machine to meet your operational demands and achieve outstanding results in your crimping applications!
