2 Inch Blue Color Electric 6-51mm Hose Cutting And Skiving Machine With Protective Devices 220V/380V Voltage And 10 Interchangeable Dies Two Function Into One Machine

Name: 2 Inch Blue Color Electric 6-51mm Hose Cutting And Skiving Machine With Protective Devices 220V/380V Voltage And 10 Interchangeable Dies Two Function Into One Machine
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-QB51
Price: 850 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-QB51
MOQ:	1 set
Price:	USD$ 850
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	10000 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

our new catalogue.pdf

Cutting Range:

6-51mm (1/4" To 2")

Blade Material:

HSS (High-speed Steel)

Cutting Blade:

φ350 * 2.8mm Double-edged Saw Blade

Motor Speed:

2850 RPM

Machine Dimensions:

850 * 600 * 1200mm

Machine Weight:

128kg

Product Name:

2 Inch Blue Color Electric 6-51mm Hose Cutting And Skiving Machine With Protective Devices 220V/380V Voltage And 10 Interchangeable Dies Two Function Into One Machine

Packaging Details:

STANDARD WOODEN BOX

Supply Ability:

10000 SETS PER MONTH

Highlight:

2 inch hose cutting machine with skiving

electric hose cutting machine 220V 380V

hose cutting machine with interchangeable dies

Product Description

2 Inch Blue Color Electric 6-51mm Hose Cutting And Skiving Machine With Protective Devices 220V/380V Voltage And 10 Interchangeable Dies Two Function Into One Machine

Product Overview

2-in-1 Electric Hose Cutting and Skiving Machine: Precision, Efficiency, and Safety

Streamline Your Hose Preparation with Dual-Functionality

Introducing our advanced 2 Inch Electric Hose Cutting and Skiving Machine, a revolutionary solution that combines two essential hose preparation processes into one compact and efficient unit. Designed for hydraulic and car repair shops, as well as the demanding oil and hose industries across the USA, Europe, and Southeast Asia, this machine is engineered to deliver unparalleled precision, speed, and safety. By integrating both cutting and skiving functions, it significantly streamlines your workflow, reduces labor costs, and ensures the highest quality hose assemblies.

Key Features and Advantages: Optimize Your Workflow

Our 2-in-1 Electric Hose Cutting and Skiving Machine is packed with innovative features to enhance your productivity and the quality of your hose assemblies:

•Dual-Functionality (Cutting & Skiving): This machine offers the ultimate convenience by performing both precise hose cutting and accurate skiving. This integration eliminates the need for separate equipment, saving valuable workshop space and reducing the time required to switch between tasks. It ensures a seamless and efficient preparation process for every hose.

•Wide Hose Compatibility (6-51mm / 2 Inch): Capable of handling hoses with an inner diameter ranging from 6mm to 51mm (approximately 2 inches), this versatile machine is suitable for a broad spectrum of hydraulic and industrial hose applications. From small automotive lines to larger industrial hoses, it provides consistent and reliable preparation.

•Enhanced Safety with Protective Devices: Operator safety is paramount. This machine is equipped with robust protective devices, including safety guards and emergency stop functions, to ensure a secure working environment. These features minimize risks and comply with international safety standards, giving operators peace of mind.

•10 Interchangeable Dies: The inclusion of 10 interchangeable dies allows for quick and precise adaptation to various hose sizes and skiving requirements. These high-quality dies ensure consistent and accurate skiving, which is crucial for creating strong, leak-proof crimps.

•Multi-Voltage Compatibility (220V/380V): Engineered for global markets, our hose processing machine supports both 220V and 380V electrical voltages. This adaptability ensures seamless integration into diverse power infrastructures in the USA, Europe, and Southeast Asia without the need for complex converters.

•Precision and Accuracy: Achieve clean, burr-free cuts and uniform skiving surfaces every time. This precision is vital for optimal crimping quality, reducing the risk of leaks, and extending the service life of hose assemblies.

•Distinctive Blue Color: The machine's vibrant blue color not only adds a professional aesthetic to your workshop but also signifies its modern design and advanced capabilities.

Why Choose Our 2-in-1 Hose Cutting and Skiving Machine?

Investing in our Electric Hose Cutting and Skiving Machine means choosing a future of streamlined operations, superior quality, and enhanced safety:

•Increased Efficiency: Combining cutting and skiving into one machine drastically reduces preparation time and labor, boosting overall productivity.

•Superior Assembly Quality: Precise cuts and consistent skiving ensure a perfect fit for fittings, leading to more reliable and durable hose assemblies.

•Cost Savings: Reduce equipment investment and operational costs by consolidating two functions into one high-performance unit.

•Enhanced Safety: Built-in protective devices provide a safer working environment for your technicians.

•Versatility: Its wide hose compatibility and interchangeable dies make it a flexible solution for a variety of hydraulic hose preparation needs.

Key Features & Product Highlights

Dual-Function Integration: Seamlessly perform vertical, burr-free cuts and precise internal/external skiving on one platform
Wide Processing Range: Optimized for hoses from 6mm to 51mm (1/4" to 2"), including high-pressure 4-wire spiral hydraulic hoses
10 Interchangeable Die Sets: Includes 10 sets of precision-ground skiving dies to ensure a perfect fit for a wide variety of hose diameters and specifications
Multi-Voltage Options: Available in 220V or 380V configurations to suit both mobile service vans and large-scale industrial plants
High-Strength Alloy Blade: Features a specially hardened cutting blade that ensures a clean, smoke-free cut without compromising the hose's structural integrity

The 2-in-1 Advantage

Space Efficiency: Its compact design is ideal for repair shops where space is premium, replacing two bulky machines with one streamlined unit
Precision Skiving: The adjustable skiving depth and length ensure that the rubber layers are removed perfectly, providing a superior bonding surface for the ferrule and preventing leaks
Enhanced Productivity: Reduce transition time between cutting and skiving steps. This machine is built for high-volume hose assembly production

Technical Specifications

Parameter	Specification
Model Number	FY-QB51
Cutting Range	6-51mm (1/4" to 2")
Blade Material	HSS (High-speed steel)
Cutting Blade	φ350 * 2.8mm double-edged saw blade
Motor Speed	2850 RPM
Machine Dimensions	850 * 600 * 1200mm
Machine Weight	128kg
Power Options	220V/4KW or 380V/3KW
Control System	Button Control
Warranty	1 Year

Product Advantages

Dual Functionality: Performs both cutting and skiving operations in one machine
Versatile Applications: Suitable for hydraulic, pneumatic, and industrial hoses
User-Friendly Design: Simple controls require minimal operator training
Enhanced Safety: Smokeless operation and debris management improve workplace safety
Durable Construction: High-quality materials ensure long-term reliability

Applications

The FY-QB51 Hydraulic Hose Cutting Machine is engineered for precision cutting of hydraulic hoses, high-pressure hoses, and various rubber hoses. Ideal for industrial workshops, automotive applications, and manufacturing facilities requiring reliable hose processing equipment.

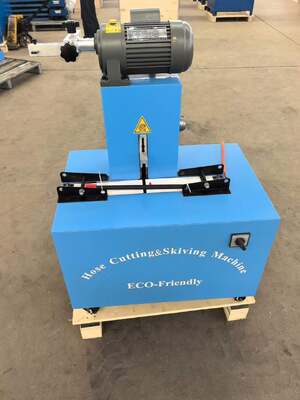

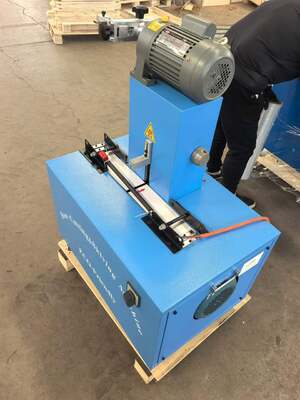

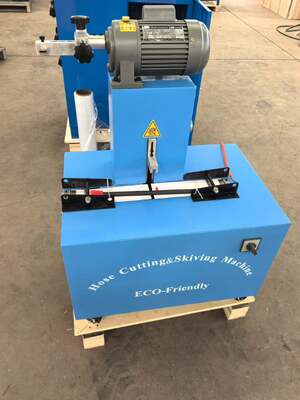

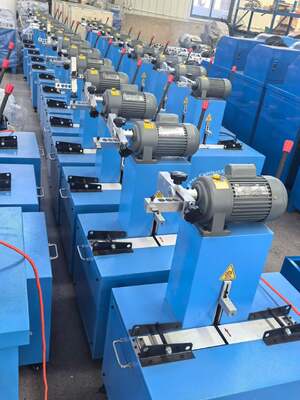

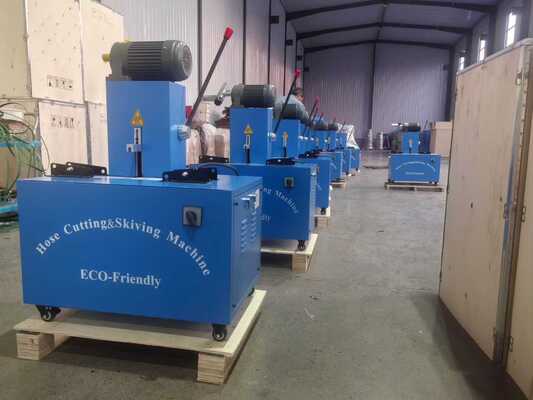

Product Images

2 Inch Blue Color Electric 6-51mm Hose Cutting And Skiving Machine With Protective Devices 220V/380V Voltage And 10 Interchangeable Dies Two Function Into One Machine 0

Frequently Asked Questions

What hose sizes can this machine handle?

It processes hoses with outer diameters from 6 mm to 51 mm (up to 2 inches). Confirm hose wall thickness and construction with the supplier for best results.

Is the machine compatible with my power supply?

Yes - choose either 220V or 380V configuration when ordering to match your facility's mains voltage.

Can the skive depth be adjusted?

Yes - the skiving mechanism features adjustable depth control so operators can match the skive to different hose covers and reinforcement layers.

What is the brand name and model number of this Hose Cutting Machine?

The brand name is FY and the model number is FY-QB51.

Where is this Hose Cutting Machine manufactured?

It is manufactured in China.

Support & Services

Our dedicated technical support team provides comprehensive assistance for the Hose Cutting Machine, including troubleshooting, maintenance guidance, repairs, and spare parts support to ensure optimal performance and longevity.

Packaging & Shipping

Each machine is securely packaged in sturdy cardboard with protective bubble wrap and shipped via reliable carriers (FedEx, UPS, DHL) to ensure safe and timely delivery.
