Hose Cutting Machine
Created with Pixso.

2 Inch Blue Color Electric From 6 To 51mm Hose Cutting And Skiving Machine With Protective Devices 220V/380V/110v Voltage And 10 Interchangeable Dies Two Function Into One Machine

2 Inch Blue Color Electric From 6 To 51mm Hose Cutting And Skiving Machine With Protective Devices 220V/380V/110v Voltage And 10 Interchangeable Dies Two Function Into One Machine

Brand Name: FY
Model Number: FY-QB51
MOQ: 1 set
Price: USD$ 950
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 10000 SETS PER MONTH
Detail Information
Place of Origin:
China
Certification:
CE
Cutting Range:
6-51mm (1/4" To 2")
Blade Material:
HSS (High-speed Steel)
Cutting Blade:
φ350 * 2.8mm Double-edged Saw Blade
Motor Speed:
2850 RPM
Machine Dimensions:
850 * 600 * 1200mm
Machine Weight:
128kg
Product Name:
2 Inch Blue Color Electric From 6 To 51mm Hose Cutting And Skiving Machine With Protective Devices 220V/380V Voltage And 10 Interchangeable Dies Two Function Into One Machine
Packaging Details:
STANDARD WOODEN BOX
Supply Ability:
10000 SETS PER MONTH
Highlight:

2 inch hose cutting machine

,

electric hose skiving machine

,

hose cutting machine with interchangeable dies

Product Description
2 Inch Blue Color Electric From 6 To 51mm Hose Cutting And Skiving Machine With Protective Devices 220V/380V Voltage And 10 Interchangeable Dies Two Function Into One Machine
Product Overview

Hose Cutting Machine for Hydraulic Hose Cutting and Skiving

The FY Hose Cutting Machine is a compact and efficient solution for cutting and skiving hydraulic hoses from 6 mm to 51 mm. Designed in a durable 2-inch blue body, this electric hose cutting machine combines two essential functions in one unit, helping hydraulic workshops, automotive repair shops, oil service centers, and industrial hose suppliers improve production efficiency and operating convenience.

Equipped with 10 interchangeable dies, the machine can handle different hose sizes with quick and flexible die replacement. Its integrated cutting and skiving functions reduce the need for separate equipment, saving valuable workshop space and lowering equipment investment costs. The machine is suitable for preparing hydraulic hoses before fitting connectors, ferrules, and other hose assemblies.

 Product Features

- Two functions in one machine: hose cutting and hose skiving
- Supports hose sizes from 6 mm to 51 mm
- Includes 10 interchangeable dies for different hose diameters
- Available with 220V, 380V, or 110V voltage options
- Compact blue design with a 2-inch structure
- Protective devices improve operator safety during operation
- Suitable for hydraulic hose assembly and maintenance applications
- Helps produce clean, consistent cuts for reliable hose installation
- Easy to operate and convenient for workshop use

 Main Advantages

Compared with manual cutting tools, this electric Hose Cutting Machine provides faster and more consistent hose preparation. The combined cutting and skiving design simplifies the workflow by allowing operators to complete two common processes on one machine. Interchangeable dies make it easier to work with multiple hose sizes, while protective devices help create a safer working environment.

This machine is a practical choice for hydraulic hose repair shops, car repair garages, oil service companies, construction equipment maintenance centers, and hose assembly workshops**. It is also suitable for distributors and service providers in the USA, Europe, and Southeast Asia.


Technical Specifications
Parameter Specification
Model Number FY-QB51
Cutting Range 6-51mm (1/4" to 2")
Blade Material HSS (High-speed steel)
Cutting Blade φ350 * 2.8mm double-edged saw blade
Motor Speed 2850 RPM
Machine Dimensions 850 * 600 * 1200mm
Machine Weight 128kg
Power Options 220V/4KW or 380V/3KW
Control System Button Control
Warranty 1 Year
Product Advantages
  • Dual Functionality: Performs both cutting and skiving operations in one machine
  • Versatile Applications: Suitable for hydraulic, pneumatic, and industrial hoses
  • User-Friendly Design: Simple controls require minimal operator training
  • Enhanced Safety: Smokeless operation and debris management improve workplace safety
  • Durable Construction: High-quality materials ensure long-term reliability
Applications

The FY-QB51 Hydraulic Hose Cutting Machine is engineered for precision cutting of hydraulic hoses, high-pressure hoses, and various rubber hoses. Ideal for industrial workshops, automotive applications, and manufacturing facilities requiring reliable hose processing equipment.

Product Images

2 Inch Blue Color Electric From 6 To 51mm Hose Cutting And Skiving Machine With Protective Devices 220V/380V/110v Voltage And 10 Interchangeable Dies Two Function Into One Machine

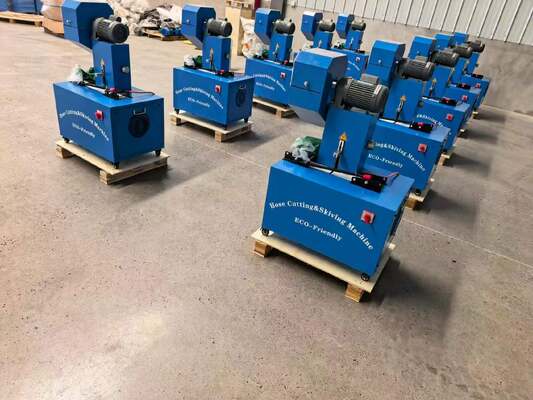

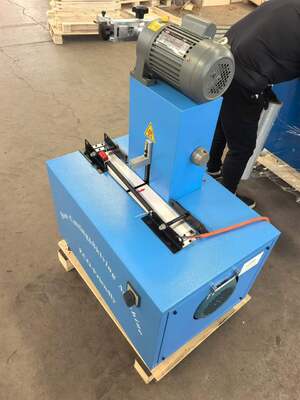

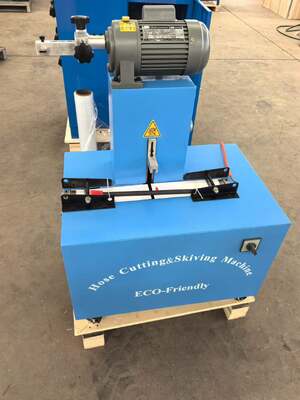

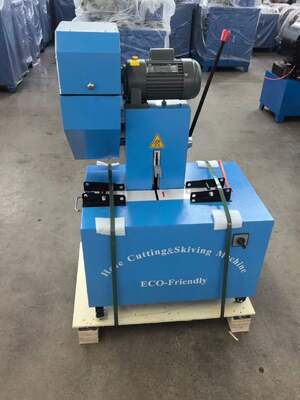

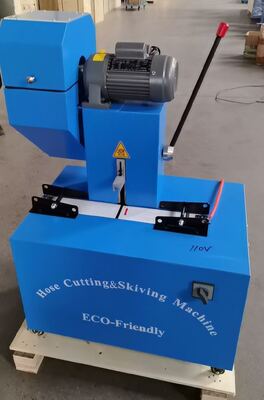

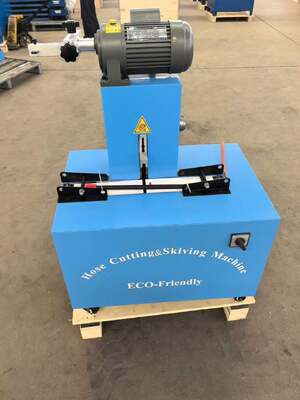

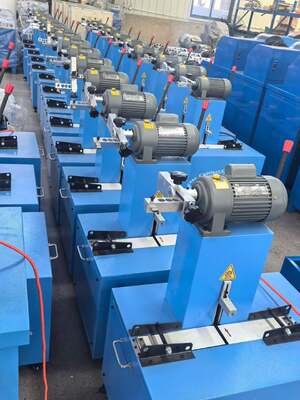

FY-QB51 Hose Cutting Machine front view FY-QB51 Hose Cutting Machine side view FY-QB51 Hose Cutting Machine operational view FY-QB51 Hose Cutting Machine blade detail FY-QB51 Hose Cutting Machine control panel
Frequently Asked Questions
What hose sizes can this machine handle?
It processes hoses with outer diameters from 6 mm to 51 mm (up to 2 inches). Confirm hose wall thickness and construction with the supplier for best results.
Is the machine compatible with my power supply?
Yes - choose either 220V or 380V configuration when ordering to match your facility's mains voltage.
Can the skive depth be adjusted?
Yes - the skiving mechanism features adjustable depth control so operators can match the skive to different hose covers and reinforcement layers.
What is the brand name and model number of this Hose Cutting Machine?
The brand name is FY and the model number is FY-QB51.
Where is this Hose Cutting Machine manufactured?
It is manufactured in China.
Support & Services

Our dedicated technical support team provides comprehensive assistance for the Hose Cutting Machine, including troubleshooting, maintenance guidance, repairs, and spare parts support to ensure optimal performance and longevity.

Packaging & Shipping

Each machine is securely packaged in sturdy cardboard with protective bubble wrap and shipped via reliable carriers (FedEx, UPS, DHL) to ensure safe and timely delivery.
