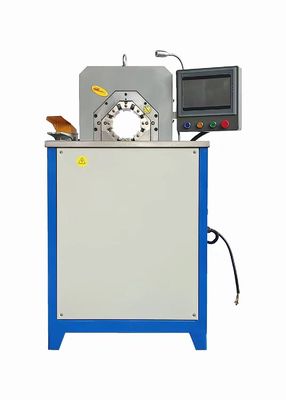

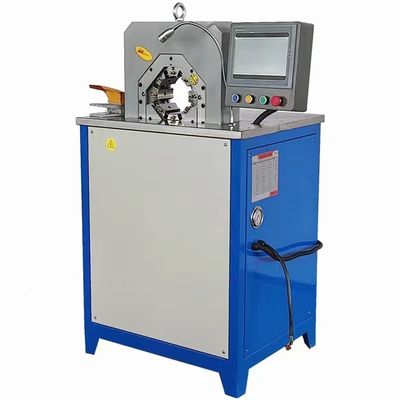

PLC 2 Inch Hydraulic Hose Pipe Pressing Machine Spiral Hydraulic Line Press Wide Opening Head

Name: PLC 2 Inch Hydraulic Hose Pipe Pressing Machine Spiral Hydraulic Line Press Wide Opening Head
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-CBK-51B
Price: 4,250.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-CBK-51B
MOQ:	1 set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Weight:

850KG

Condition:

New

Dimension(l*w*h):

640*820*1400MM

Warranty:

1 Year

After-sales Service Provided:

Video Technical Support,Online Support

Voltage:

110V/220V/380V/415V 50/60Hz

Power(w):

4KW

Crimping Force:

1000T

Color:

Blue/white Or Custom

Crimping Range:

6-51mm,1/4"to2'',1/4''-2''

Product Name:

6-51mm High Pressure Hydraulic Hose Crimping Machine

Application:

Crimp Hose

Free Dies:

13 Sets

Rated Pressure:

31.5MPA

Keywords:

PLC Hydraulic Hose Crimping Machine

HIGH LIGHT:

Two Inch Hose Pressing Machine, Spiraled Hose Pressing Machine, Hose Pipe Pressing Machine

Packaging Details:

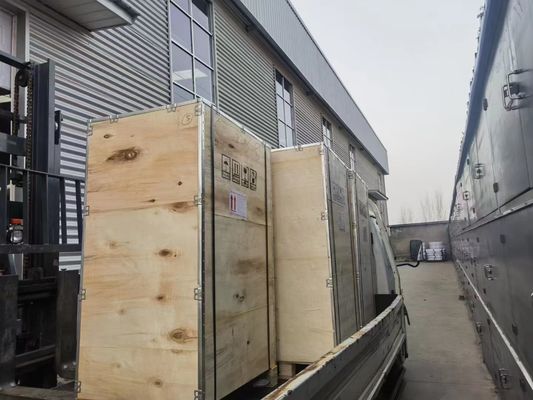

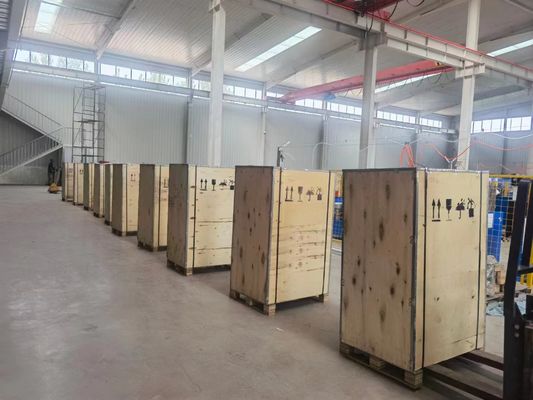

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

PLC hydraulic hose pipe pressing machine

2 inch hydraulic hose pipe pressing machine

spiral hydraulic line press

Product Description

Two Inch Spiraled Hose Pressing Machine Big Force Wide Opening Head

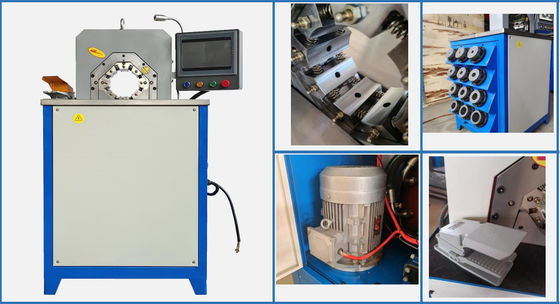

THE DEVICE OF FY-CBK-51B

Hydraulic hose crimping institutions made by tank, thrust main cylinder, work oil pump, electromagnetic

reversing valves, electric component parts and so on.

FY-CBK-51B hose pressing machine is famous for its intelligent control system and large opening mouth. With a super crimping force, it can crimp hydraulic hose R15 R13 up to 2 inch.

MAIN FEATURES

1. Thin head, easy fed for bend fitting;

2. Big crimping power;

3. High accuracy.

crimping range/skiving range	6-51mm(1/4''-2''inner diameter of hose)
quantity of dies	13 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L
system pressure	31.5Mpa
motor power	4kw
voltage	110V/220V/380V/415V,50HZ/60HZ
crimping force	1000T
work efficiency	300pcs/h
maximum open diameter	145mm
the max open tolerance	±50mm
package dimension	7008801500mm
machine dimension	6408201400mm
Net weight	850kg
Gross weight	880kg

PLC 2 Inch Hydraulic Hose Pipe Pressing Machine Spiral Hydraulic Line Press Wide Opening Head 0

TECHNICAL DATA

Model	FY-CBY-51B Hose Pressing Machine
Crimping Range	6-51(mm)(1/4~2")
Crimping Force	1000(T)
Hose Size	1/4-2(inch)
Max. Opening	145mm
Die Sets	13
work efficiency	300pcs/h
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Control	PLC
Standard Voltage	110V/220V/380V/415V 50/60Hz
Motor Power	4(KW)
Length	640(mm)
Width	820(mm)
Height	1400(mm)
Weight	850(KG)

PLC 2 Inch Hydraulic Hose Pipe Pressing Machine Spiral Hydraulic Line Press Wide Opening Head 1

PLC 2 Inch Hydraulic Hose Pipe Pressing Machine Spiral Hydraulic Line Press Wide Opening Head 2

NOTE

- Customized die sets are available;

- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;

crimping range/skiving range	6-51mm(1/4''-2''inner diameter of hose)
quantity of dies	13 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L
system pressure	31.5Mpa
motor power	4kw
voltage	110V/220V/380V/415V,50HZ/60HZ
crimping force	1000T
work efficiency	300pcs/h
maximum open diameter	145mm
the max open tolerance	±50mm
package dimension	7008801500mm
machine dimension	6408201400mm
Net weight	850kg
Gross weight	880kg
