| Brand Name: | FY |
| Model Number: | FY-51BY |
| MOQ: | 1 set |
| Price: | USD$ 1600/1500/1400/1300 |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |

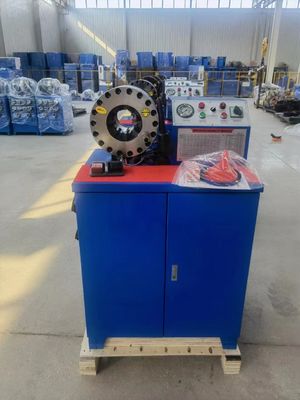

Vertical Rubber Hose Crimping Machine 2 Inch 4SH High Pressure Hose Pressing 51BY
DESCRIPTION
We have more models and products for you to choose from, crimping range from 2mm-300mm, 1/8-6 inches, hose crimping machine, hose cutting machine, hose pressure test machine. Widely used in vehicles, engineering machinery, hydraulic machinery, welding and cutting equipment and other industries. You can choose the products that suit you.
FY-51BY is a hose crimper for hydraulic high pressure flexible hose range from 1/4 inch to 2 inch one to six stainless steel wire braided or spiraled. It has three different operate mode, to meet customer different need.
MAIN ADVANTAGES
1. Big oil pump, efficient and long life
2. Multifunctional operate panel, easy to change between automatic and semi-auto
3. Pressure can be shown on the panel
4. Foot pedal as standard to make hands free
5. Working light to make crimping work more clear
TECHNICAL DATA
| Model | FY-51BY Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30±mm |
| Die Sets | 10 |
|
Maximum Open Diameter |
114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
|
Work Efficiency |
200 pcs/h |
| Standard Voltage |
220v/240v/380v/415v(optional) |
| Motor Power | 3(KW) |
| Length | 860(mm) |
| Width | 640(mm) |
| Height | 1300(mm) |
| Weight | 310(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
► TWO MODE EASY ALTERNATED
Automatic or semi-automatic mode can be choosen
