| Brand Name: | FY |
| Model Number: | FY-CBK-51B |
| MOQ: | 1 set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |

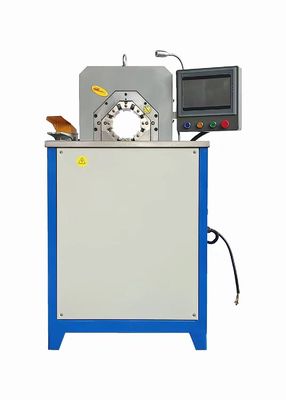

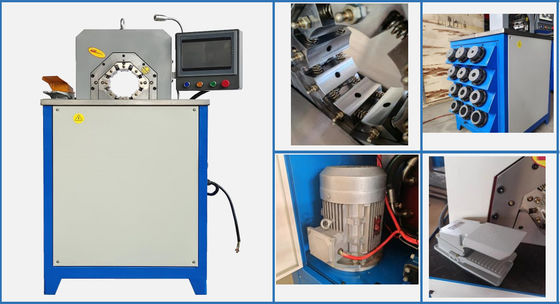

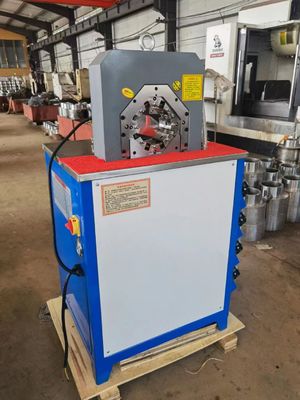

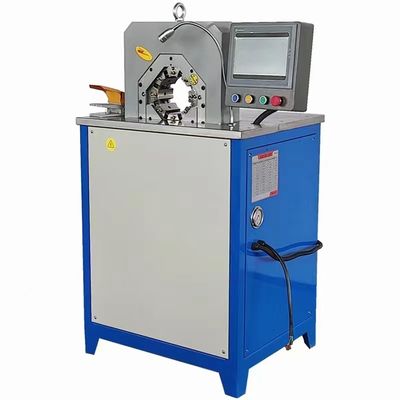

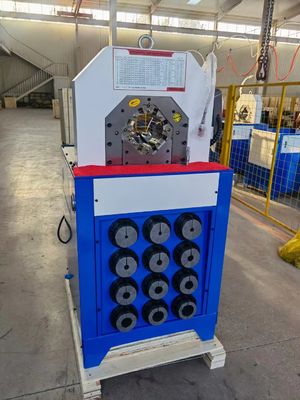

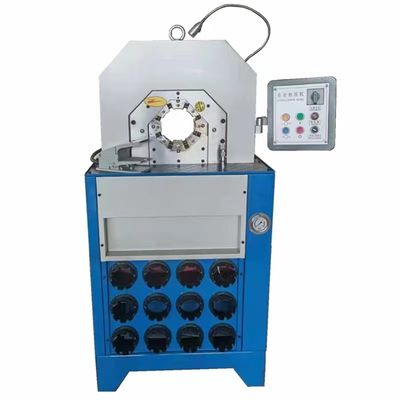

HYDRAULIC HOSE CRIMPER MACHINE CBK-51B
HYDRAULIC HOSE CRIMPER MACHINE CBK-51B/hose pressing machine/hose crimping machine
THE HOSE PRESSING MACHINE'S DECRIPTION
FY-CBK-51B hose pressing machine is famous for its intelligent control system and large opening mouth. With a super crimping force, it can crimp hydraulic hose R15 R13 up to 2 inch.
MAIN FEATURES
1. Thin head, easy fed for bend fitting;
2. Big crimping power;
3. High accuracy.
TECHNICAL DATA
| Model | FY-CBY-51B Hose Pressing Machine |
| Crimping Range | 6-51(mm)(1/4~2") |
| Crimping Force | 1000(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 145mm |
| Die Sets | 13 |
|
work efficiency
|
300pcs/h |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Control | PLC |
| Standard Voltage |
110V/220V/380V/415V
50/60Hz
|
| Motor Power | 4(KW) |
| Length | 640(mm) |
| Width | 820(mm) |
| Height | 1400(mm) |
| Weight | 850(KG) |
NOTE
- Customized die sets are available;
- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
