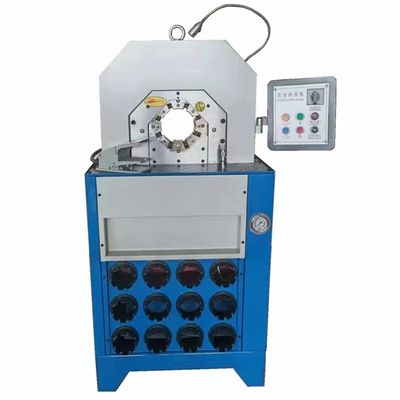

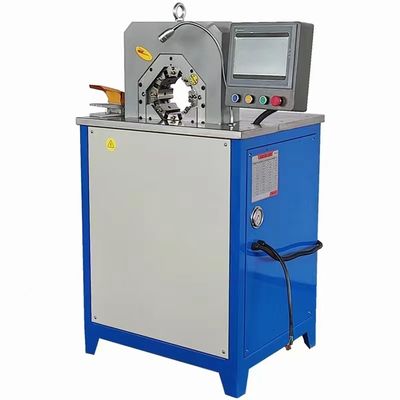

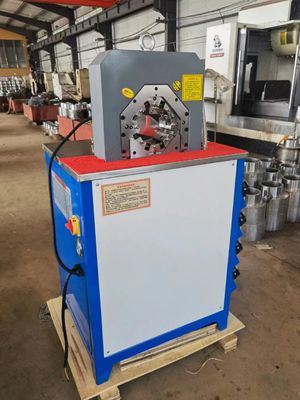

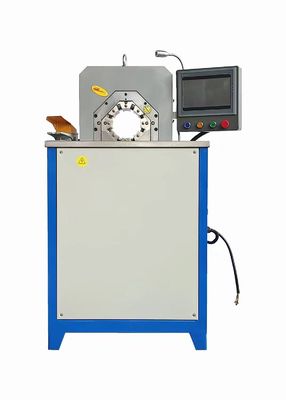

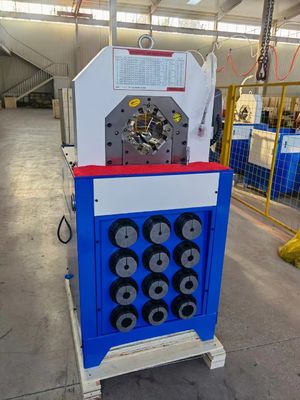

PLC 5.5kw Hydraulic Hose Pressing Machine 4kw Hydraulic Fitting Press Big Elbow CBK-51B
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWeight | 850KG | Condition | New |
---|---|---|---|
Dimension(l*w*h) | 640*820*1400MM | Warranty | 1 Year |
After-sales Service Provided | Video Technical Support,Online Support | Voltage | 110V/220V/380V/415V 50/60Hz |
Power(w) | 4KW | Crimping Force | 1000T |
Color | Blue/white Or Custom | Crimping Range | 6-51mm,1/4"to2'',1/4''-2'' |
Product Name | 6-51mm High Pressure Hydraulic Hose Crimping Machine | Application | Crimp Hose |
Free Dies | 13 Sets | Rated Pressure | 31.5MPA |
Keywords | PLC Hydraulic Hose Crimping Machine | HIGH LIGHT | Two Inch Hose Pressing Machine, Spiraled Hose Pressing Machine, Hose Pipe Pressing Machine |
High Light | 5.5kw hydraulic hose pressing machine,PLC hydraulic hose pressing machine,4kw hydraulic fitting press |
crimping range | 6-51 mm(1/4~2") | |
---|---|---|
quantity of dies | 13 sets | |
accuracy | 0.01 mm | |
output volume of pump | 10L | |
system pressure | 31.5mpa | |
motor power | 4kw | |
voltage | 110V/220V/380V/415V,50/60Hz | |
crimping force | 1000 t | |
work efficiency | 1000 pcs/h | |
maximum open diameter | 145 mm | |
the max open tolerance | 50 mm | |
machine dimension | 640*820*1400 mm | |
package dimension | 700*880*1500 mm | |
net weight | 850 kg | |
gross weight | 880 kg | |
BIG ELBOW FITTINGS CBK-51B FLEXIBLE HOSE CRIMPER MACHINE
FY-CBK-51B DECRIPTION
Precautions before operation
1. When using the tube press for the first time, it should be crimped 20 to 30 times without load, and it can be used after observing that all parts are normal.
2. When using the pipe press in winter, it should be withheld for 20 to 30 times without load to increase the oil temperature.
3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale (see the crimping parameter table for details).
4. Place the hose with the joint in the proper position in the press head, so that the entire length is crimped at one time.
5. Press the crimping button to execute crimping operation, until the crimping head stops crimping and automatically opens the mold.
6. Take out the crimped hose assembly and use a vernier caliper to check the outer diameter of the crimped joint jacket. If it does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.
FY-CBK-51B hose pressing machine is famous for its intelligent control system and large opening mouth. With a super crimping force, it can crimp hydraulic hose R15 R13 up to 2 inch.

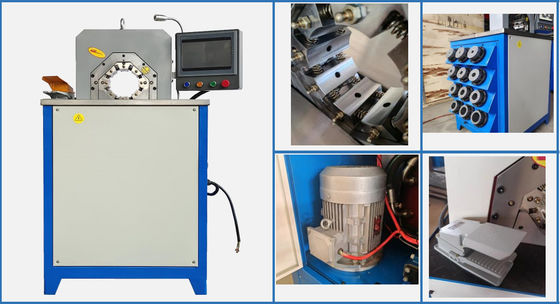

MAIN FEATURES
1. Thin head, easy fed for bend fitting;
2. Big crimping power;
3. High accuracy.
TECHNICAL DATA
Model | FY-CBY-51B Hose Pressing Machine |
Crimping Range | 6-51(mm)(1/4~2") |
Crimping Force | 1000(T) |
Hose Size | 1/4-2(inch) |
Max. Opening | 145mm |
Die Sets | 13 |
work efficiency
|
300pcs/h |
System Pressure | 31.5(Mpa) |
Accuracy | 0.01(mm) |
Control | PLC |
Standard Voltage |
110V/220V/380V/415V
50/60Hz
|
Motor Power | 4(KW) |
Length | 640(mm) |
Width | 820(mm) |
Height | 1400(mm) |
Weight | 850(KG) |
NOTE
- Customized die sets are available;
- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
