6 Inch Press Hydraulic Hose Crimping 4-150mm Hose Press Crimper Large Opening

Name: 6 Inch Press Hydraulic Hose Crimping 4-150mm Hose Press Crimper Large Opening
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-150
Price: 1,450.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-150
MOQ:	1 set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Color:

Blue

Reinforcement:

4-150mm

Product Name:

High Pressure Hydraulic Hose

Working Pressure:

31.5MPA

Feature:

Big Size

HIGH LIGHT:

Large Opening High Pressure Crimping Tool,high Pressure Crimping Tool, Industrial Pipe Making Machine

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

6 inch press hydraulic hose crimping

4mm hose press crimper

150mm hose press crimper

Product Description

Large Opening 6 inch hydraulic rubber hose crimping machine

DESCRIPTION OF OUR DEVICE

Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.

FY-150 high pressure hose crimper is a large opening hose assembly 6 inch making machine. It is the ideal choice for larged hose crimping or a super accurate material which need a big opening .

MAIN FEATURES
► Advanced cylinder making technology, low maintenance cost
► High accuracy
► Big crimping force
► Double use foot pedal, more convenient

TECHNICAL DATA

Model	FY-150 High Pressure Hose Crimper
Crimping Range	4-150(mm)
Crimping Force	2500(T)
Hose Size	1/8-6(inch)
Max. Opening	235(mm)
Die Sets	20
Output Volume Of Pump	10L/16L
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200pcs/h
Standard Voltage	110v/220v/240/380/415v
Motor Power	4KW/5.5(KW)
Length	850(mm)
Width	530(mm)
Height	980(mm)
Weight	820(KG)

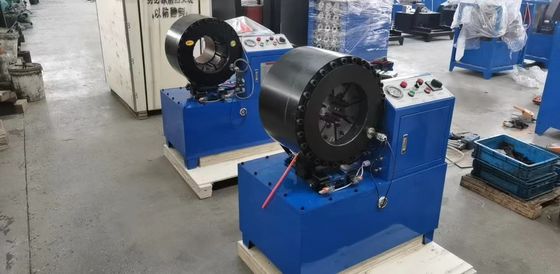

6 Inch Press Hydraulic Hose Crimping 4-150mm Hose Press Crimper Large Opening 0

crimping range/skiving range	4-150mm(1/8''-6''inner diameter of hose)
quantity of dies	20 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L/16L
system pressure	31.5Mpa
motor power	4kw/5.5KW
voltage	110V/220V/380V/415V,50HZ/60HZ
crimping force	2500T
work efficiency	200pcs/h
maximum open diameter	235mm
the max open tolerance	±30mm
package dimension	850530980mm
machine dimension	9105901210mm
Net weight	820kg
Gross weight	850kg

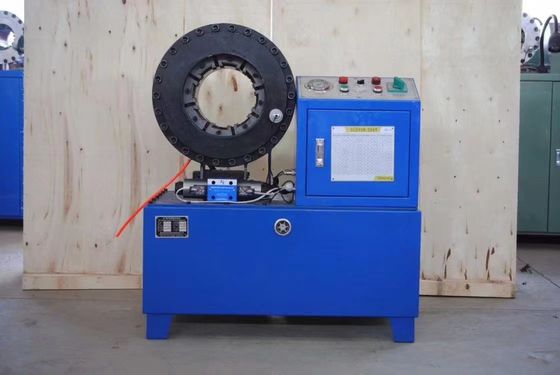

6 Inch Press Hydraulic Hose Crimping 4-150mm Hose Press Crimper Large Opening 1

NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110v/220v/240/380/415v are availbale

crimping range/skiving range	4-150mm(1/8''-6''inner diameter of hose)
quantity of dies	20 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L/16L
system pressure	31.5Mpa
motor power	4kw/5.5KW
voltage	110V/220V/380V/415V,50HZ/60HZ
crimping force	2500T
work efficiency	200pcs/h
maximum open diameter	235mm
the max open tolerance	±30mm
package dimension	850530980mm
machine dimension	9105901210mm
Net weight	820kg
Gross weight	850kg

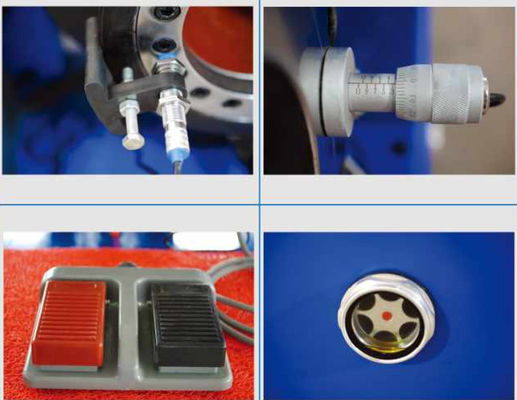

► HIGH QUALITY MATERIAL
Apply world famous hydraulic cylinder producing technology, 40Cr and Cr12Mov steel with high hardness

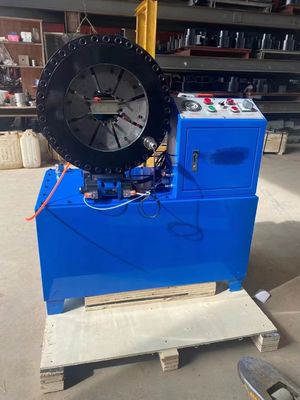

6 Inch Press Hydraulic Hose Crimping 4-150mm Hose Press Crimper Large Opening 2

► PEDAL SWITCH
Big double use foot pedal, more convenient

► HUMAN DESIGN PANEL
Simple structure easy for operating, high effeciency

CRIMPING SAMPLES
