| Brand Name: | FY |
| Model Number: | FY-200 |
| MOQ: | 1 set |
| Price: | USD$ 2650 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 SETS PER MONTH |

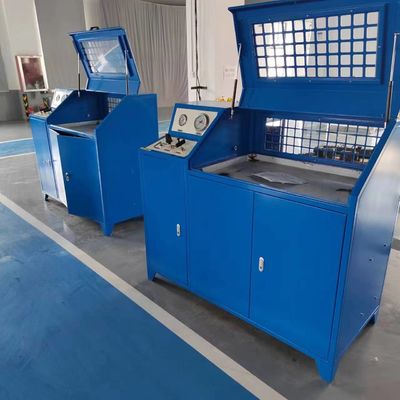

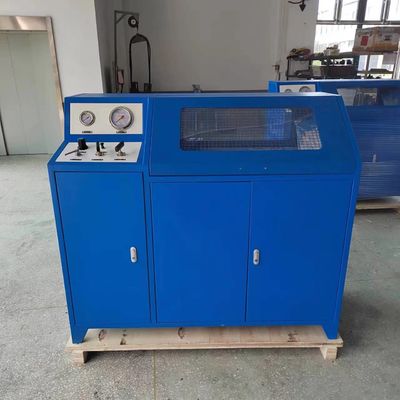

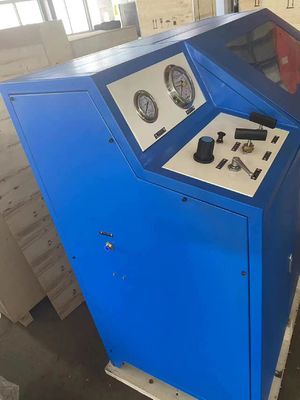

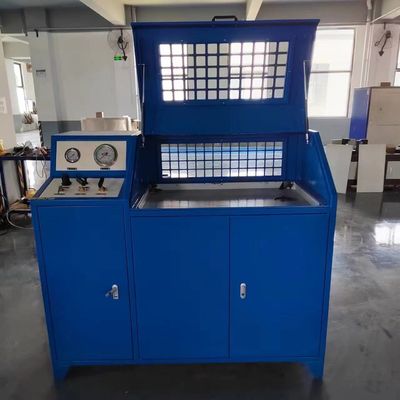

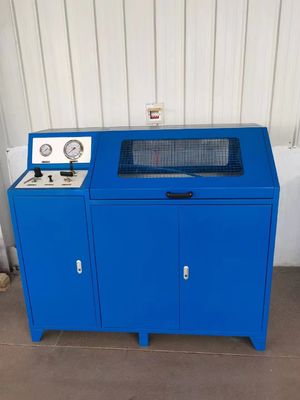

This hose pressing machine is a pressure test equipment used to test the strength and safety of hoses. It is made of strong and durable steel material, capable of producing high pressure. It has a air consumption of 1.0m3/min and the size of the equipment is 1.53 X0.70x1.32m. The machine is backed by a 1 year warranty, making it an ideal choice for hose testing. It is a reliable and efficient hose testing equipment that is designed for pressure testing hoses and other related products.
| 1 | Driving medium: compressed air, the highest pressure not less than 8 bar(3 to 8 bar) |
| 2 | Working medium: water with 5% of antirust additive,Connect to pure water, the maximum water pressure is 2000 Bar, and pneumatic diaphragm pump water injection |
| 3 | Fast fulling pump: flow 36 L/min |
| 4 | Germany imported high-pressure air drive booster pump: traffic 0-0.28 L/min,Rated outlet pressure range 0-2000 bar (0-200 mpa) |
| 5 | High-pressure exit: M18 x 1.5, 24 inner cone seal |
| 6 | The tank volume: 40 litres, actual need to refill 30 liters |
| 7 | Machine’s net weight: 240kg |
| 8 | Machine’s gross weight:260kg |
| 9 | Equipment size: 1.53 x0.70x1.32m |
| 10 | Package size: 1.65 x 0.85x 1.55 m |
| Name | Parameters |
|---|---|
| Operation Mode | Automatic |
| Pump Working Pressure | ≤0.8Mpa |
| Material | Steel |
| Pressure | High |
| Air consumption | 1.0m3/min |
| Name | Hose Pressure Testing Machine |
| Pressure Range | 0-200MPa |
| Weight | 240kg |
| Equipment Size | 1.53 X0.70x1.32m |
| Warranty | 1 Year |
The FY-200 Hose Pressure Testing Machine from FY is a pressure test equipment designed for testing hose pressure up to 20 Bar. It is a fully automatic device, with an air consumption of 1.0m3/min, and a weight of 240kg. This pressure test machine is suitable for a variety of industries and applications, and can be used to accurately measure and test the pressure of hoses. It is a reliable and durable hose pressure testing device, capable of measuring and testing hoses up to a pressure range of 0-200MPa. This pressure test equipment is a must-have for any industry that requires accurate testing of hose pressure.
Technical support and services for the Hose Pressing Machine include:
The Hose Pressing Machine will be packaged in a cardboard box to protect from dust and dirt. The box will be securely sealed with packing tape to ensure the product is not damaged during the shipping process.
To minimize damage during shipping, the box will be cushioned with bubble wrap and other packing materials. In addition, the box will be clearly labeled with the customer's address and a "fragile" sticker to inform the carrier to be careful when handling the package.
