| Brand Name: | FY |
| Model Number: | FY-200 |
| MOQ: | 1 set |
| Price: | USD$ 2650 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 SETS PER MONTH |

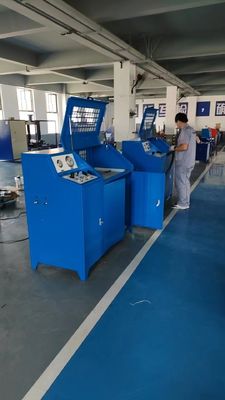

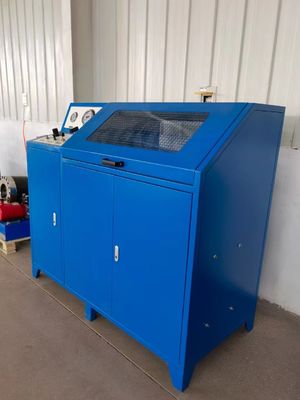

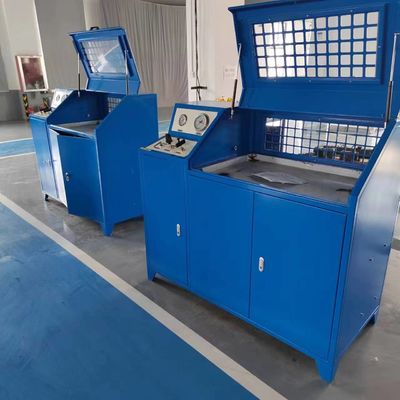

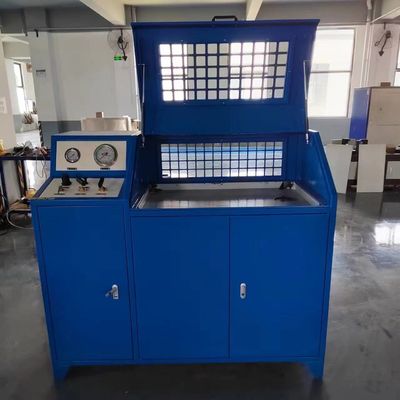

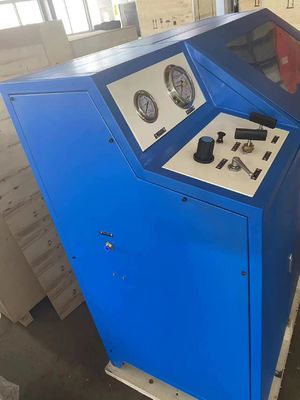

This hose pressing machine is a hose testing equipment which is designed for pressure testing of hoses in a safe and efficient way. It is made of high-quality steel, and its pump working pressure is up to 0.8Mpa. With its automatic operation mode, this machine can test the pressure of the hose up to 20 Bar. It is also easy to use and maintain, with a weight of 240kg and a size of 1.53 X0.70x1.32m, it is the perfect hose testing device for your requirement.
| 1 | Driving medium: compressed air, the highest pressure not less than 8 bar(3 to 8 bar) |
| 2 | Working medium: water with 5% of antirust additive,Connect to pure water, the maximum water pressure is 2000 Bar, and pneumatic diaphragm pump water injection |
| 3 | Fast fulling pump: flow 36 L/min |
| 4 | Germany imported high-pressure air drive booster pump: traffic 0-0.28 L/min,Rated outlet pressure range 0-2000 bar (0-200 mpa) |
| 5 | High-pressure exit: M18 x 1.5, 24 inner cone seal |
| 6 | The tank volume: 40 litres, actual need to refill 30 liters |
| 7 | Machine’s net weight: 240kg |
| 8 | Machine’s gross weight:260kg |
| 9 | Equipment size: 1.53 x0.70x1.32m |
| 10 | Package size: 1.65 x 0.85x 1.55 m |
| Name | Hose Pressure Testing Machine |
|---|---|
| Material | Steel |
| Air consumption | 1.0m3/min |
| Operation Mode | Automatic |
| Pressure Range | 0-200MPa |
| Equipment Size | 1.53 X0.70x1.32m |
| Control System | Button Press |
| Pressure | High |
| Pump Working Pressure | ≤0.8Mpa |
| Weight | 240kg |
The FY-200 Hose Pressing Machine is an ideal choice for power and pressure tools. It's capable of testing up to 20 Bar and 200 Mpa, making it the perfect accessory to ensure your hoses can withstand pressure. This machine is designed with a 1.53 x 0.70 x 1.32m size, and has a weight of 240kg. It requires 1.0m3/min of air consumption and has a pump working pressure of ≤0.8Mpa. It also comes with a 1-year warranty, and is made in China. The FY-200 Hose Pressing Machine is the perfect choice for any industry that needs to ensure their hoses can withstand high pressure.
The FY-200 Hose Pressing Machine is designed for hose pressure testing, and is the perfect pressure test equipment for high pressure hose testing. It provides accurate and reliable pressure testing results with an adjustable pressure range of 0-200MPa and an air consumption of 1.0m3/min. It is lightweight (240kg) and comes with a 1 year warranty.
We provide technical support for the Hose Pressing Machine. Our customer service team is available 24/7 to answer any questions about the product, provide technical advice, and help troubleshoot any issues. Additionally, we offer preventative maintenance services to keep the machine in top condition and minimize downtime. We also provide spare parts and replacement units for sale.
The hose pressing machine is packaged and shipped in a sturdy cardboard box. The box is clearly labeled with the machine's model number, and the address of the manufacturer. Inside the box, the hose pressing machine is securely packed in foam cushioning, to ensure it is well protected during transit.
The box is also marked with a "Fragile" or "This Side Up" warning to ensure that the machine is handled with care during transport. The box is then sealed with strong adhesive tape, and a tracking number is applied for easy tracking.
The packaged box is then shipped to the customer via a reliable courier service. The customer can track the progress of their delivery, and can expect to receive their machine within the specified delivery time.
