| Brand Name: | FY |
| Model Number: | FY-200 |
| MOQ: | 1 set |
| Price: | USD$ 2650 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 SETS PER MONTH |

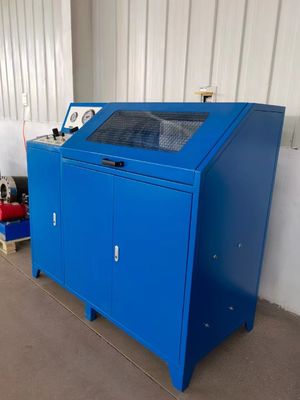

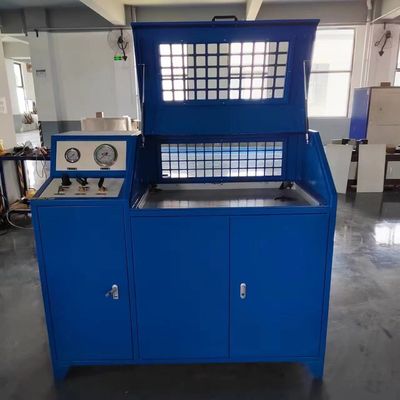

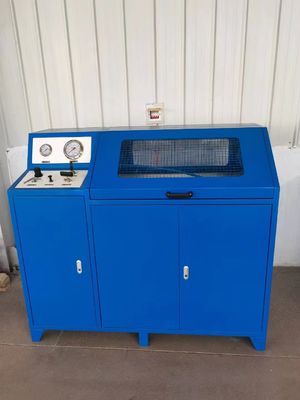

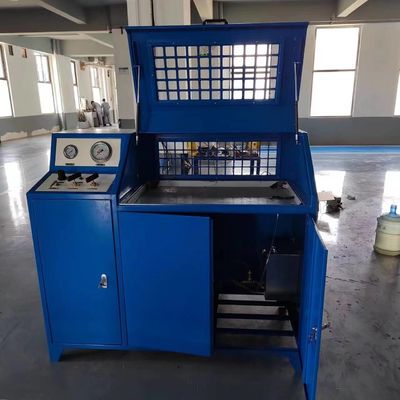

The Hose Pressure Testing Machine is a powerful and reliable pressure test equipment, specially designed for testing hose. This hose testing equipment is constructed with high-grade steel, and its size is 1.53 X0.70x1.32m, with a weight of 240kg. The machine is equipped with a button press control system, allowing for easy and precise operation. With the Hose Pressure Testing Machine, users can obtain accurate and reliable results of their hose testing. This reliable pressure test equipment is an ideal solution for professionals who need a reliable and efficient hose pressure testing device.
| 1 | Driving medium: compressed air, the highest pressure not less than 8 bar(3 to 8 bar) |
| 2 | Working medium: water with 5% of antirust additive,Connect to pure water, the maximum water pressure is 2000 Bar, and pneumatic diaphragm pump water injection |
| 3 | Fast fulling pump: flow 36 L/min |
| 4 | Germany imported high-pressure air drive booster pump: traffic 0-0.28 L/min,Rated outlet pressure range 0-2000 bar (0-200 mpa) |
| 5 | High-pressure exit: M18 x 1.5, 24 inner cone seal |
| 6 | The tank volume: 40 litres, actual need to refill 30 liters |
| 7 | Machine’s net weight: 240kg |
| 8 | Machine’s gross weight:260kg |
| 9 | Equipment size: 1.53 x0.70x1.32m |
| 10 | Package size: 1.65 x 0.85x 1.55 m |
| Property | Detail |
|---|---|
| Material | Steel |
| Warranty | 1 Year |
| Name | Hose Pressure Testing Machine |
| Pressure | High |
| Equipment Size | 1.53 X0.70x1.32m |

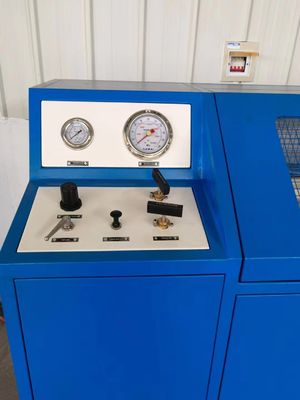

| Control System | Button Press |
| Weight | 240kg |
| Operation Mode | Automatic |
| Air Consumption | 1.0m3/min |
| Pressure Range | 0-200MPa |
The FY-200 Hose Pressing Machine is an advanced testing equipment designed for testing the pressure of hose. It is widely used in the factories, workshops, and laboratories that require high pressure testing. This machine is made of high-quality steel and is equipped with a button press control system for easy and accurate operation. It is capable of working at a pressure of ≤0.8Mpa and is backed by a one-year warranty for superior quality and reliability.
This hose pressure testing device is suitable for pressure testing of various hoses, such as automotive hoses, hydraulic hoses, fuel hoses, etc. It is an ideal testing equipment for hose manufacturers and testing centers to ensure the quality of their products. The FY-200 Hose Pressing Machine is a reliable and efficient hose testing equipment that offers accurate and precise test results.
Our FY Hose Pressure Testing Machine is the perfect choice for pressure test machine, hose pressure testing device, pressure test machine China. It features Button Press control system, pressure range 0-200MPa, air consumption 1.0m3/min and equipment size 1.53 X0.70x1.32m. This high quality machine is the perfect choice to ensure reliable performance and accuracy.
At XYZ Corp, we provide technical support and services for our Hose Pressing Machine. Our team of experienced professionals will be available to provide the necessary assistance to ensure that your machine is functioning properly. We offer technical advice, troubleshooting, and repair services whenever needed, and we can also provide spare parts and consumables. We have a variety of replacement parts in stock, and we can order additional parts as needed. Additionally, we are available for on-site service if necessary.
Our goal is to help you keep your Hose Pressing Machine running in top condition. We understand the importance of having a reliable machine, and we’re committed to providing the necessary support to ensure your machine is running the way it should. We’re here to make sure your machine is up and running as quickly and efficiently as possible.
Packaging and Shipping for Hose Pressing Machine:
Q1: What's the brand name of the Hose Pressing Machine?
A1: The brand name of the Hose Pressing Machine is FY.
Q2: What's the model number of the Hose Pressing Machine?
A2: The model number of the Hose Pressing Machine is FY-200.
Q3: Where is the Hose Pressing Machine made?
A3: The Hose Pressing Machine is made in China.
Q4: What are the dimensions of the Hose Pressing Machine?
A4: The dimensions of the Hose Pressing Machine are 72*43*41cm.
Q5: What is the power of the Hose Pressing Machine?
A5: The power of the Hose Pressing Machine is 2.2KW.
