| Brand Name: | FY |
| Model Number: | FY-200 |
| MOQ: | 1 set |
| Price: | USD$ 2650 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 SETS PER MONTH |
The Hose Pressure Testing Machine is a powerful and reliable testing equipment designed to measure pressure up to 200MPa accurately. It is made from high-quality steel material, making it strong and durable. The air consumption is 1.0m3/min, making it highly efficient. The control system is simple and easy to use - just press the button to get accurate results. The machine is extremely accurate, allowing for precise measurements of pressure up to 200MPa. It is perfect for a wide range of hose testing applications, from automotive to industrial. With its user-friendly design and powerful performance, the Hose Pressure Testing Machine is the ideal choice for all your hose testing needs.
| 1 | Driving medium: compressed air, the highest pressure not less than 8 bar(3 to 8 bar) |
| 2 | Working medium: water with 5% of antirust additive,Connect to pure water, the maximum water pressure is 2000 Bar, and pneumatic diaphragm pump water injection |
| 3 | Fast fulling pump: flow 36 L/min |

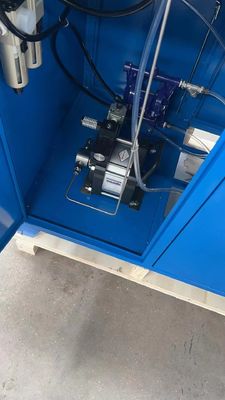

| 4 | Germany imported high-pressure air drive booster pump: traffic 0-0.28 L/min,Rated outlet pressure range 0-2000 bar (0-200 mpa) |

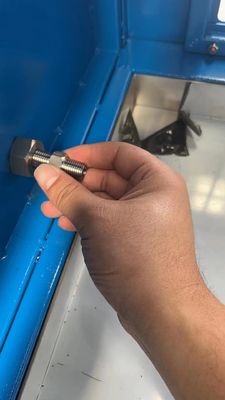

| 5 | High-pressure exit: M18 x 1.5, 24 inner cone seal |
| 6 | The tank volume: 40 litres, actual need to refill 30 liters |
| 7 | Machine’s net weight: 240kg |
| 8 | Machine’s gross weight:260kg |
| 9 | Equipment size: 1.53 x0.70x1.32m |
| 10 | Package size: 1.65 x 0.85x 1.55 m |
| Parameters | Details |
|---|---|
| Name | Hose Pressure Testing Machine |
| Pressure | High, 0-200MPa |
| Material | Steel |
| Air consumption | 1.0m3/min |
| Equipment Size | 1.53 X0.70x1.32m |
| Weight | 240kg |
| Control System | Button Press |
| Operation Mode | Automatic |
| Warranty | 1 Year |
The FY-200 hose pressing machine from FY is a reliable and efficient solution for pressure testing applications. It can test up to 0.8Mpa and is equipped with an automatic operation mode for convenience. With a compact size of 1.53 X0.70x1.32m, it takes up minimal space and is lightweight at 240kg. The machine also features an air consumption rate of 1.0m3/min for maximum performance. This machine is perfect for any hose pressure test, making it one of the most reliable pressure test machines and pressure test equipment in the market.
Brand Name: FY
Model Number: FY-200
Place of Origin: China
Equipment Size: 1.53 X0.70x1.32m
Pump Working Pressure: ≤0.8Mpa
Pressure Range: 0-200MPa
This pressure test equipment can reach up to 20 Bar pressure and pressure 200 Mpa.
Warranty: 1 Year
Weight: 240kg
We provide technical support and service for our Hose Pressing Machine. Our technical support includes:
We also provide service and repair for our Hose Pressing Machine. Our services include:

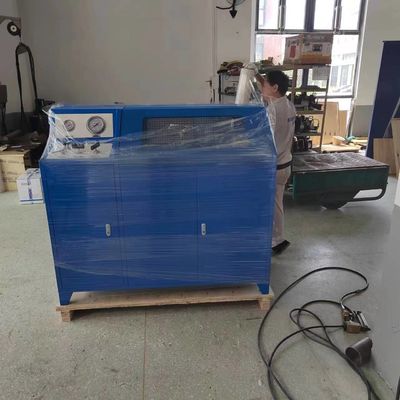

Packaging and Shipping for Hose Pressing Machine:
