3 Inch PLC Control Systerm 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine

BIG ELBOW FITTINGS CBK-51B FLEXIBLE HOSE CRIMPER MACHINE

FY-CBK-51B DECRIPTION

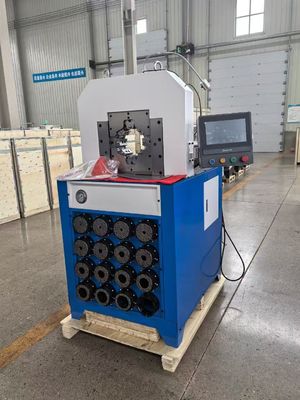

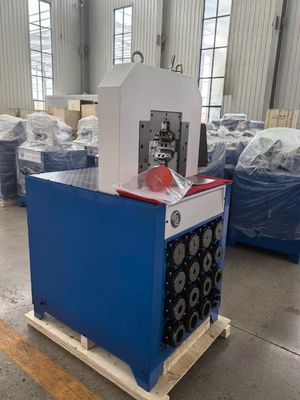

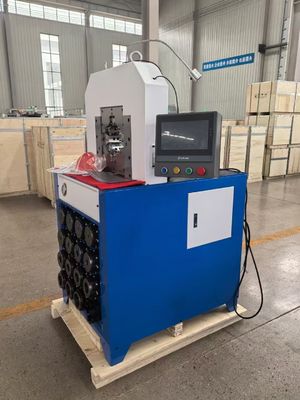

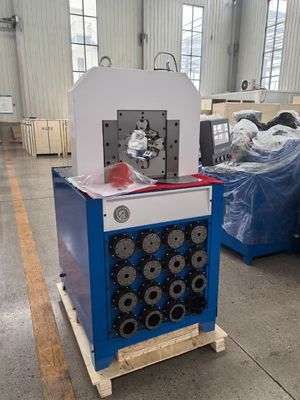

3-Inch Hydraulic Hose Crimping Machine
Description:
This high-performance hydraulic hose crimping machine is designed for efficiency and precision, making it ideal for industrial applications that require the crimping of hoses up to 3 inches in diameter.

Specifications:

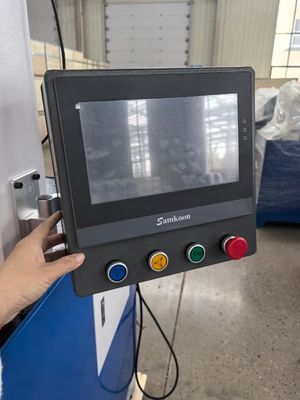

Control System: Advanced PLC (Programmable Logic Controller) for automated and accurate operation.
Power Rating: 7.5 kW, ensuring strong performance even during high-demand tasks.
Production Capacity: Capable of crimping up to 800 pieces per hour, significantly boosting productivity.
Key Features:

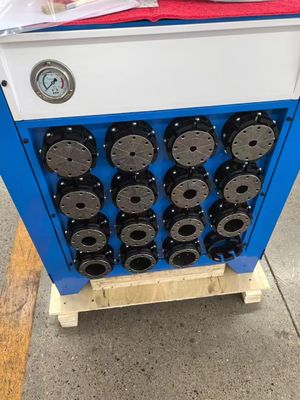

Rapid Changeover: The machine is designed for quick mould changes, allowing operators to switch between different hose sizes with ease. This feature minimizes downtime and enhances production flexibility.
Efficient Hydraulic Mechanism: Equipped with a robust hydraulic system that provides consistent and powerful crimping, ensuring secure connections that meet stringent industry standards.
Sturdy Design: Constructed from high-grade materials, this machine is built for durability, capable of withstanding the challenges of continuous operation in busy environments.
User-Friendly Operation: The PLC control system simplifies the setup and monitoring processes, making it accessible for operators of all experience levels.
This hydraulic hose crimping machine is an excellent investment for companies looking to enhance their operational efficiency while maintaining top-quality hose assemblies.

Precautions before operation
1. When using the tube press for the first time, 3 Inch PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be crimped 20 to 30 times without load, and it can be used after observing that all parts are normal.
2. When using the pipe press in winter, 3 Inch PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be withheld for 20 to 30 times without load to increase the oil temperature.
3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale (see the crimping parameter table for details).
4. Place the hose with the joint in the proper position in the press head, so that the entire length is crimped at one time.
5. Press the crimping button to execute crimping operation, until the crimping head stops crimping and automatically opens the mold.
6. Take out the crimped hose assembly and use a vernier caliper to check the

outer diameter of the crimped joint jacket. If it does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.

TECHNICAL DATA

NOTE

- Customized die sets are available;

- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
