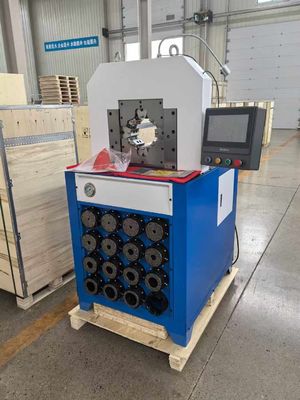

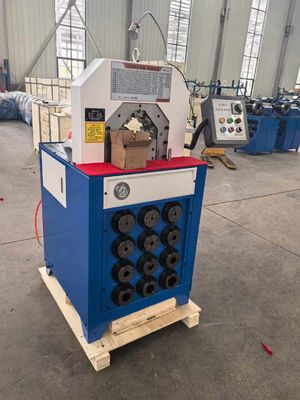

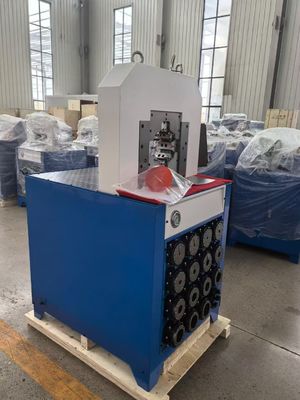

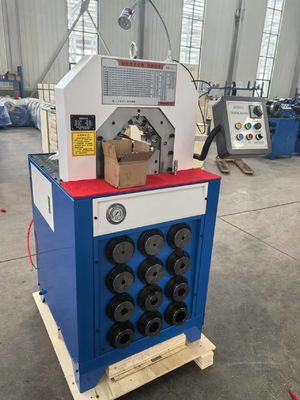

3 Inch 6-76mm Button Control Systerm With Fast Change Moulds Tools Hose Crimping Machine

BIG ELBOW FITTINGS CBK-51B FLEXIBLE HOSE CRIMPER MACHINE

FY-CBK-51B DECRIPTION

3-Inch Hydraulic Hose Crimping Machine
Specifications:

Control System: User-friendly Button Control System for intuitive operation.
Hose Size Range: Capable of crimping hoses from 6 mm to 76 mm (3 inches).
Power: Designed for efficient performance, this machine is engineered to meet high production demands.
Key Features:

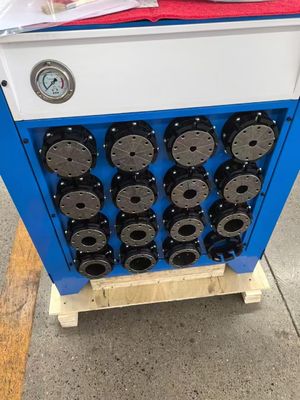

Rapid Mould Change: Equipped with fast-change moulds, this machine allows operators to quickly switch between different crimping sizes and styles. This feature minimizes setup time and maximizes productivity, making it ideal for environments with varying hose requirements.
Efficient Hydraulic System: Built with a powerful hydraulic mechanism that ensures precise and reliable crimping. The system provides consistent pressure, resulting in secure connections that meet industry standards.
Durable and Reliable: Constructed with high-quality materials, this crimping machine is designed for longevity and sustained performance, even in demanding applications.
Enhanced Usability: The button control interface simplifies operation, ensuring that both experienced and novice operators can use the machine effectively.
This hydraulic hose crimping machine is perfect for businesses looking to enhance their production efficiency while maintaining high-quality standards in hose assembly.

Precautions before operation
1. When using the tube press for the first time, 3 Inch Button Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be crimped 20 to 30 times without load, and it can be used after observing that all parts are normal.
2. When using the pipe press in winter, 3 Inch Button Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be withheld for 20 to 30 times without load to increase the oil temperature.
3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale (see the crimping parameter table for details).
4. Place the hose with the joint in the proper position in the press head, so that the entire length is crimped at one time.
5. Press the crimping button to execute crimping operation, until the crimping head stops crimping and automatically opens the mold.

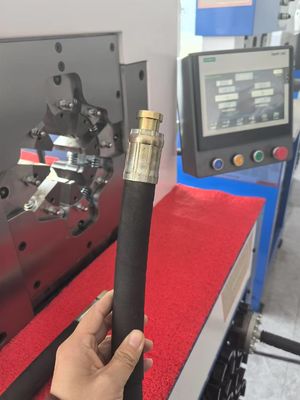

6. Take out the crimped hose assembly and use a vernier caliper to check the

outer diameter of the crimped joint jacket. If 3 Inch Button Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.

TECHNICAL DATA

NOTE

- Customized die sets are available;

- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
