| Brand Name: | FY |
| Model Number: | FY-CBK-51B |
| MOQ: | 1 set |
| Price: | 5000 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
2 Inch Button Control Systerm 300 Pieces/Hour With Fast Change Moulds Tools Hydraulic Hose Pressing Machine Hydraulic Fitting Press Big Elbow
FY-CBK-51B DECRIPTION

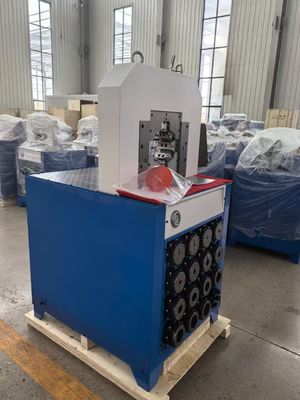

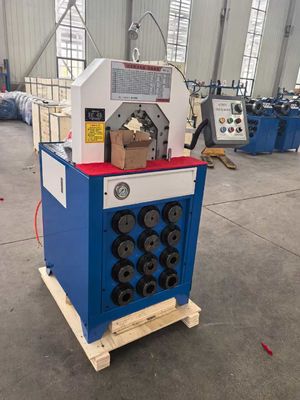

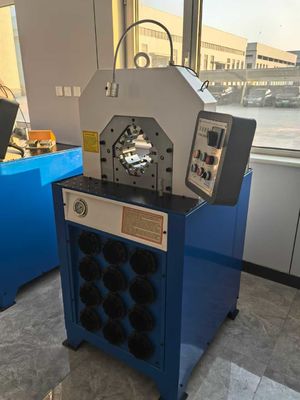

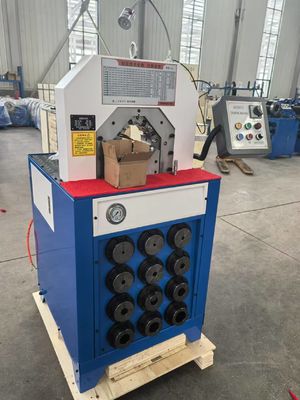

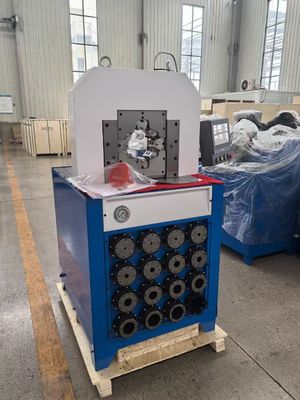

Hydraulic Hose Pressing Machine with Button Control System
Introducing our 2 Inch Hydraulic Hose Pressing Machine, engineered for high efficiency and quick operation. This 2 Inch Hydraulic Hose Pressing Machine is designed for efficiency and precision, making it perfect for various applications.2 Inch Hydraulic Hose Pressing Machine Key features include:
Hydraulic Hose Pressing Machine with Button Control System
Introducing our 2 Inch Hydraulic Hose Pressing Machine, designed for optimal efficiency and rapid output. Key features include:
This machine is ideal for professionals looking to improve efficiency and reliability in hydraulic hose assembly. Elevate your production capabilities with this advanced pressing machine today!
Precautions before operation
1. When using the tube press for the first time, it should be crimped 20 to 30 times without load, and it can be used after observing that all parts are normal.
2. When using the pipe press in winter, it should be withheld for 20 to 30 times without load to increase the oil temperature.
3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale (see the crimping parameter table for details).
4. Place the hose with the joint in the proper position in the press head, so that the entire length is crimped at one time.
5. Press the crimping button to execute crimping operation, until the crimping head stops crimping and automatically opens the mold.
6. Take out the crimped hose assembly and use a vernier caliper to check the outer diameter of the crimped joint jacket. If it does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.
FY-CBK-51B hose pressing machine is famous for its intelligent control system and large opening mouth. With a super crimping force, it can crimp hydraulic hose R15 R13 up to 2 inch.
MAIN FEATURES
1. Thin head, easy fed for bend fitting;
2. Big crimping power;
3. High accuracy.
TECHNICAL DATA
| Model | FY-CBY-51B Hose Pressing Machine |
| Crimping Range | 6-51(mm)(1/4~2") |
| Crimping Force | 1000(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 145mm |

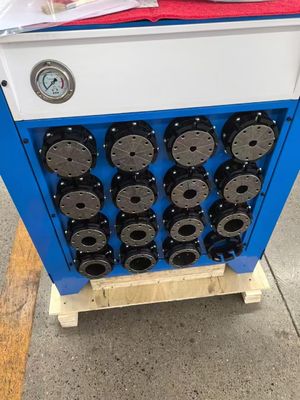

| Die Sets | 13 |
|
work efficiency
|
300pcs/h |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Control | PLC |
| Standard Voltage |
110V/220V/380V/415V
50/60Hz
|
| Motor Power | 4(KW) |
| Length | 640(mm) |
| Width | 820(mm) |
| Height | 1400(mm) |
| Weight | 850(KG) |
NOTE
- Customized die sets are available;
- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
