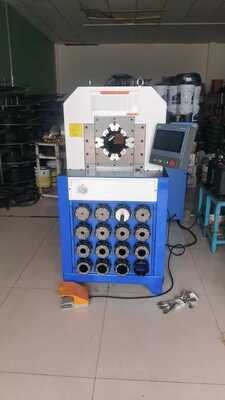

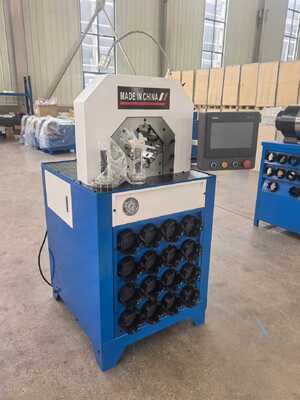

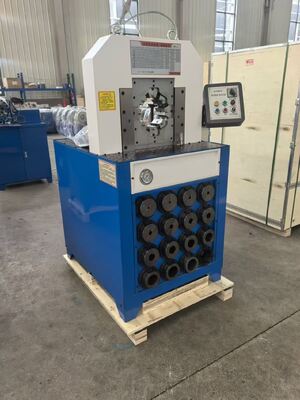

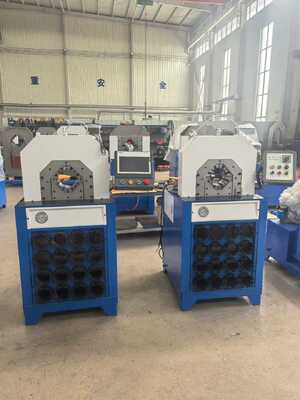

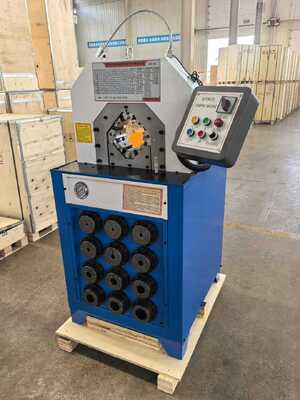

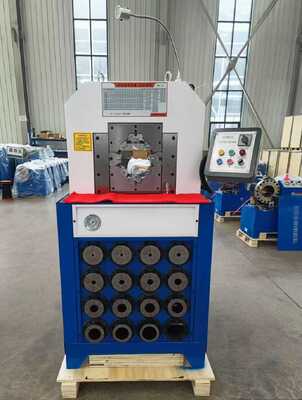

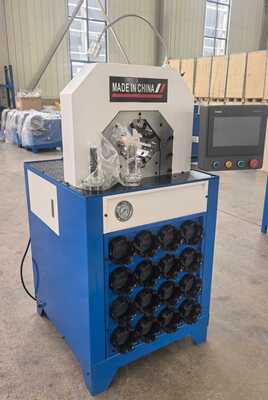

3 Inch Hydraulic Hose Crimping Machine with 15 Dies Button Control System and Fast Change Moulds

3 Inch Hydraulic Hose Crimping Machine with 15 Dies Button Control System and Fast Change Moulds

Brand Name:	FY
Model Number:	FY-CBK-120C
MOQ:	1 set
Price:	5000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Document:

OUR CATALOGUE.pdf

Weight:

1250KG

Condition:

New

Dimension(l*w*h):

755*1045*1630MM

Warranty:

1 Year

After-sales Service Provided:

Video Technical Support,Online Support

Voltage:

110V/220V/380V/415V 50/60Hz

Power(w):

5.5KW

Crimping Force:

1000T

Color:

Blue/white Or Custom

Crimping Range:

6-76mm,1/4"to3'',1/4''-3''

Product Name:

3 Inch Hydraulic Hose Crimping Machine With 2800KN Crimping Force 31.5MPA Rated Pressure And 6-76mm Crimping Range

Application:

Crimp Hose

Free Dies:

15 Sets

Rated Pressure:

31.5MPA

Keywords:

PLC Hydraulic Hose Crimping Machine

HIGH LIGHT:

3 Inch Hose Pressing Machine, Spiraled Hose Pressing Machine, Hose Pipe Pressing Machine

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

15 Dies Hydraulic Hose Crimping Machine

Button Control System Hose Pressing Machine

Fast Change Moulds Hydraulic Fitting Press

Product Description

3 Inch Hydraulic Hose Crimping Machine with 2800KN Crimping Force

Professional-Grade Hydraulic Hose Crimping Solution

The 3 Inch Hydraulic Hose Crimping Machine delivers superior performance with 2800KN crimping force, 31.5MPA rated pressure, and a versatile 6-76mm crimping range. Designed for demanding industrial applications, this machine ensures precision and durability in hydraulic hose fabrication.

Key Features

High Crimping Force: 2800KN capacity for secure crimping of heavy-duty hoses
Rated Pressure: 31.5MPA operation for high-pressure hydraulic systems
Wide Crimping Range: Accommodates hoses from 6mm to 76mm (1/4"-3") diameter
Robust Construction: Industrial-grade materials for long-term durability
User-Friendly Design: Intuitive controls suitable for all operator skill levels

Operational Advantages

Exceptional performance for critical hydraulic connections
Broad application across automotive, construction, and manufacturing sectors
Integrated safety features compliant with industry standards
Cost-effective solution with minimal maintenance requirements
Fast die change system for efficient workflow

Technical Specifications

Crimping Range	6-76mm (1/4"-3" inner diameter)
Quantity of Dies	13 sets
System Pressure	31.5Mpa
Motor Power	4kw
Voltage Options	110V/220V/380V/415V, 50HZ/60HZ
Crimping Force	2800KN
Work Efficiency	300pcs/h
Machine Dimensions	84010901760mm
Net Weight	1250kg
