3 Inch Electric 220v/380v Hydraulic Hose Crimping Machine With 0.01 Mm Accuracy PLC/botton Control System And 6-76mm Crimping Range

3 Inch Electric Hydraulic Hose Crimping Machine — High Precision PLC Control

Introducing the high-precision 3 Inch Electric Hydraulic Hose Crimping Machine, engineered for professional hydraulic workshops and industrial hose manufacturers. With a wide crimping range of 6mm–76mm (up to 3 inches) and exceptional repeatability down to 0.01 mm, this crimper delivers consistent, leak-free assemblies for high-pressure hydraulic systems. Designed for global markets including the USA, Europe, and Southeast Asia, it supports both 220V and 380V power supplies and is ideal for hydraulic shops, car repair centers, oilfield service providers, and hose production facilities.

Product Features & Characteristics

• Wide Crimping Range: Accurate crimping from 6mm to 76mm, covering small hydraulic lines to full 3-inch industrial hoses.
• High Precision: Digital control and mechanical design ensure 0.01 mm accuracy and tight repeatability for every crimp.
• PLC / Button Control System: Intuitive PLC control with push-button operation enables programmable crimp cycles, preset parameters, and safety interlocks for consistent results and operator ease.
• Electric-Hydraulic Power: Robust electric-hydraulic system delivers smooth, stable force for reliable crimps across varied hose types and fittings.
• Durable Construction: Heavy-duty frame and precision tooling reduce vibration and extend machine life under continuous use.
• Safety & Diagnostics: Built-in safety guards, emergency stop, overload protection, and PLC diagnostics minimize downtime and improve workplace safety.
• User-Friendly Interface: Clear digital display for setting crimp diameter, pressure, and dwell time; stores multiple jobs for repeat production runs.

Key Advantages

• Superior Accuracy: 0.01 mm precision ensures uniform crimp profiles, reducing rejects and improving fluid system reliability.
• Higher Throughput: PLC presets and programmable cycles speed up production and reduce operator variability.
• Versatile Application: Suitable for hydraulic repair shops, automotive service centers, oilfield maintenance teams, and hose assembly manufacturers.
• Global Compatibility: Dual-voltage availability (220V / 380V) makes the machine deployable in most regions (USA, Europe, Southeast Asia) with minimal electrical adaptation.
• Reduced Rework & Leakage: Precise control of crimp diameter and force reduces the risk of leaks and premature hose failure.

Technical Specifications (Typical)

• Model Type: Electric Hydraulic Hose Crimping Machine
• Crimping Range: 6 mm – 76 mm (up to 3 inches)
• Repeatability / Accuracy: 0.01 mm
• Control System: PLC with button control and digital display
• Power Supply: 220V / 380V (specify at order)
• Motor Power: 4 kW (model dependent)
• Maximum Crimping Force: Model dependent — typically configured for heavy-duty hose assemblies
• Dies Included: Standard set; additional dies for special fittings available
• Weight (approx.): 1300 kg (model dependent)
• Dimensions (approx.): 840 mm × 1090 mm × 1760 mm

Frequently Asked Questions (FAQs)

Q1: What maximum hose size can this machine crimp?
A1: The machine supports hoses up to 3 inches (76 mm) in diameter.

Q2: How accurate are crimp settings?
A2: Precision control provides repeatability and accuracy to 0.01 mm, ensuring consistent crimp quality across production runs.

Q3: Is the machine compatible with my electrical supply?
A3: Yes — the machine is available for 220V or 380V configurations. Specify your region’s voltage when ordering.

Q4: Does the PLC control allow multiple program storage?
A4: Yes — the PLC system can store multiple crimp programs (preset diameters, pressures, dwell times) for quick job changeovers.

Q5: Can I get custom dies for special fittings?
A5: Yes — additional or custom dies are available to match non-standard fittings; contact the supplier with your fitting specifications.

SEO Keywords to Include: Hydraulic Hose Crimping Machine, Hose Crimper, 3 Inch Hose Crimper, PLC Crimping Machine, high-precision hose crimper.

Conclusion
This 3 Inch Electric Hydraulic Hose Crimping Machine combines precision, reliability, and automation to meet the needs of modern hydraulic workshops and hose manufacturers. With PLC control, 0.01 mm accuracy, and a broad crimping range, it reduces waste, improves throughput, and delivers consistently safe, leak-free hose assemblies for customers in the USA, Europe, and Southeast Asia. Contact your supplier to configure voltage, motor options, and die sets for your specific application.

• What sizes of hoses can this machine crimp?
  The hydraulic hose crimping machine is designed to accommodate hoses ranging from 6mm to 76mm in diameter.
• How many dies are included with this machine?
  It comes with 15 interchangeable dies, allowing for versatility in crimping various hose sizes and types.
• What types of control systems does the machine offer?
  The machine features different control options, allowing users to select the most suitable system for their specific crimping requirements.
• Is the machine durable for continuous use?
  Yes, it is constructed from high-quality materials, designed to withstand heavy use in busy workshop environments.
• How does the fast change mould design improve efficiency?
  The fast change mould design allows for quick and easy dies swapping, significantly reducing downtime and boosting overall productivity.

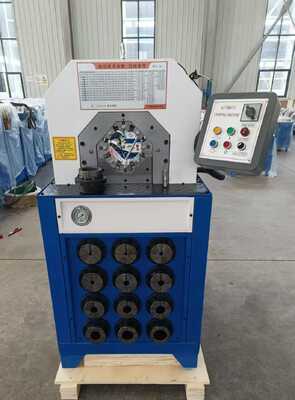

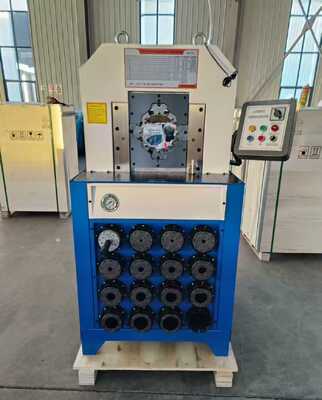

Front view

Side view

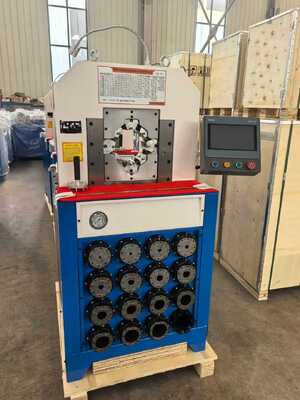

Control panel

Die set

In operation

Crimping demonstration

Component details

FY-CBY-51B Model

Specifications

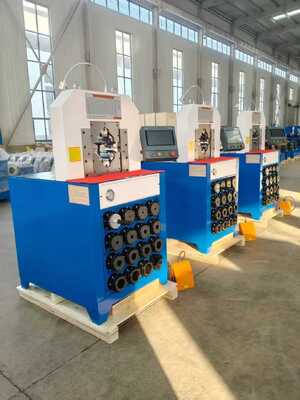

Workshop environment

Close-up view

Operator using machine

The 3 Inch 6-76mm Hydraulic Hose Crimping Machine is a high-performance solution tailored for businesses focused on hydraulic applications. With its wide crimping range, multiple control system options, and fast change mould design, this machine enhances efficiency and productivity in hydraulic repairs and services. Invest in this reliable hydraulic hose crimping machine to elevate your operations and achieve outstanding results in hose management!
