6" Up To 150mm Hydraulic Hose Crimping Machine With Different Voltage 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies

Name: 6" Up To 150mm Hydraulic Hose Crimping Machine With Different Voltage 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-150
Price: 4550 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-150
MOQ:	1 set
Price:	USD$ 4550
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Document:

our new catalogue.pdf

Crimping Range:

4-150mm

Product Name:

6" Up To 150mm Hydraulic Hose Crimping Machine With Different Voltage 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

6 hydraulic hose crimping machine with 20 dies

150mm hydraulic hose crimper with large opening

high pressure hose crimper with interchangeable dies

Product Description

6" Up To 150mm Hydraulic Hose Crimping Machine With Different Voltage 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies

Product Overview

6-Inch (Up to 150mm) Hydraulic Hose Crimping Machine: Unmatched Range, Large Opening, and Global Power Flexibility

Overview: Precision and Power for Diverse Hydraulic Hose Assemblies

In the demanding landscape of industrial and heavy-duty applications, the ability to create reliable and robust hydraulic hose assemblies is non-negotiable. Our 6-Inch (Up to 150mm) Hydraulic Hose Crimping Machine is engineered to deliver exceptional performance, combining an expansive 4-150mm crimping range with a generously large opening to accommodate a vast array of hose types and sizes. This machine is designed for seamless integration into any global operation, offering different voltage options (220V/380V/415V/240V) to suit diverse electrical infrastructures. Equipped with 20 high-quality, interchangeable dies, this Hydraulic Hose Crimping Machine is the ultimate solution for hydraulic/car repair shops, the oil industry, and hose manufacturers across the USA, Europe, and Southeast Asia. It guarantees uncompromising strength, adaptability, and consistent quality, representing a strategic investment in operational efficiency and long-term reliability.

Key Features & Advantages: Engineered for Maximum Adaptability and Industrial Strength

Expansive 4-150mm Crimping Range: Master Every Hose Size with Ease

The defining characteristic of this Hydraulic Hose Crimping Machine is its extraordinary 4-150mm (6-inch) crimping range. This broad capability empowers users to handle an immense variety of hydraulic hose diameters, from smaller, intricate lines to the largest, most robust hoses found in heavy machinery, marine, and mining sectors. This unparalleled versatility eliminates the need for multiple specialized machines, significantly optimizing workshop space and reducing capital expenditure. The inclusion of 20 high-quality, durable, and interchangeable dies further enhances its adaptability, allowing operators to swiftly and efficiently transition between different hose and fitting specifications without compromising on precision or operational efficiency.

Large Opening Design: Effortless Handling of Complex and Bulky Assemblies

Understanding the practical challenges of heavy-duty work, this Hydraulic Hose Crimping Machine features a thoughtfully designed large opening. This ample clearance is absolutely critical for easily accommodating complex hose assemblies, including those with bulky fittings, flanges, or multiple bends. The large opening simplifies the insertion and removal of hoses, dramatically improving operational efficiency and substantially reducing the risk of damage to both hoses and fittings during the crimping process. This intelligent design makes it ideal for a wider range of specialized and challenging applications, thereby enhancing overall productivity and safety in high-stakes industrial environments.

Global Voltage Compatibility: 220V/240V/380V/415V for Seamless Power Integration

Recognizing the varied electrical standards across international markets, this Hydraulic Hose Crimping Machine is engineered with multiple voltage options, including 220V, 240V, 380V, and 415V. This crucial adaptability ensures seamless integration into virtually any operational environment in the USA, Europe, and Southeast Asia, effectively eliminating concerns about power supply compatibility. This feature underscores its design as a truly global solution, ready for deployment wherever robust hydraulic hose assemblies are required, guaranteeing consistent and reliable performance regardless of geographical location.

Robust Construction: Built to Withstand the Toughest Industrial Demands

Crafted with an unwavering commitment to enduring performance, this Hydraulic Hose Crimping Machine features a heavy-duty construction utilizing premium-grade materials. Its sturdy frame provides exceptional stability during high-pressure crimping operations, ensuring consistent results and minimizing wear and tear. This robust build guarantees a long operational lifespan and minimal maintenance, representing a sound investment that delivers consistent, high-quality results for years to come, even in the most challenging industrial conditions.

Technical Specifications

Model	FY-150 High Pressure Hose Crimper
Crimping Range	4-150(mm)
Crimping Force	2500(T)
Hose Size	1/8-6(inch)
Max. Opening	235(mm)
Die Sets	20
Output Volume Of Pump	10L/16L
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200pcs/h
Standard Voltage	110v/220v/240/380/415v
Motor Power	4KW/5.5(KW)
Length	850(mm)
Width	530(mm)
Height	980(mm)
Weight	820(KG)

Additional Specifications

Crimping Range / Skiving Range	4-150mm(1/8''-6''inner diameter of hose)
Quantity of Dies	20 sets
Item Dies	Length 60mm(15,19,23,26) \| Length 70mm(31,36,41) \| Length 80mm(47,55,60)
Accuracy	0.01mm
Output Volume of Pump	10L/16L
System Pressure	31.5Mpa
Motor Power	4kw/5.5KW
Voltage	110V/220V/380V/415V,50HZ/60HZ
Crimping Force	2500T
Work Efficiency	200pcs/h
Maximum Open Diameter	235mm
The Max Open Tolerance	±30mm
Package Dimension	850530980mm
Machine Dimension	9105901210mm
Net Weight	820kg
Gross Weight	850kg

Frequently Asked Questions

Q1: What is the maximum hose diameter this machine can crimp?

A1: The machine supports hose outer diameters up to 150 mm (6 inches).

Q2: Can it handle hoses with multiple reinforcement layers?

A2: Yes — this press is designed to crimp hoses with up to six reinforcement layers; verify specific hose construction with the supplier to ensure correct die selection.

Q3: How many dies come with the machine and can I order more?

A3: The standard package includes 20 interchangeable dies. Additional and custom dies for special fittings or non-standard hoses are available on request.

Q4: Is this machine suitable for mobile service trucks?

A4: Due to its size and weight, this model is primarily intended for fixed workshop or factory installations. For mobile applications, consider a compact DC-powered crimper.

Q5: What maintenance does the machine require?

A5: Regular maintenance includes hydraulic oil checks and replacement, inspection of seals and hoses, die condition checks, lubrication of moving parts, and verification of safety systems. Follow the manufacturer's maintenance schedule.

Product Features

High Quality Material

Apply world famous hydraulic cylinder producing technology, 40Cr and Cr12Mov steel with high hardness

Pedal Switch

Big double use foot pedal, more convenient

Human Design Panel

Simple structure easy for operating, high efficiency

Crimping Samples

Additional Notes

" * " for non standard die sets
Customized die sets are available
Special voltage 110v/220v/240/380/415v are available

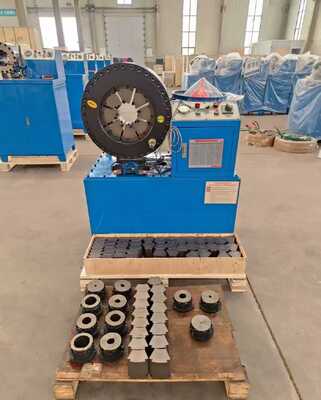

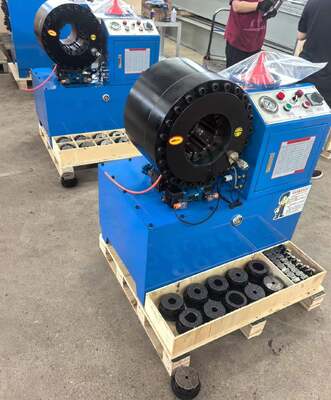

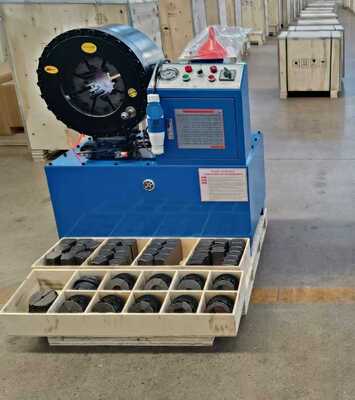

Product Images

SEO Keywords

Hydraulic Hose Crimping Machine, 6 Inch Hose Crimper, 4-150 mm crimper, industrial hose press, large opening hose crimper, high pressure hydraulic hose crimper, Wide Range High Pressure Hose Crimper, Flexible High Pressure Hose Crimper

Conclusion

This 6 Inch Press Hydraulic Hose Crimping Machine combines wide capacity, heavy-duty reliability and precise hydraulic control for demanding industrial environments. With a 4-150 mm range, six-layer handling and 20 dies, it is ideal for heavy equipment maintenance, oilfield support and large-scale hose manufacturing in the USA, Europe and Southeast Asia. Contact your local supplier to specify power configuration, die sets and installation requirements.
