6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening Crimping Force 2500 Ton And 20 Interchangeable Dies

Name: 6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening Crimping Force 2500 Ton And 20 Interchangeable Dies
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-150
Price: 4550 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-150
MOQ:	1 set
Price:	USD$ 4550
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Document:

our new catalogue.pdf

Crimping Range:

4-150mm

Product Name:

6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

6 inch hydraulic hose crimping machine

150mm hydraulic hose crimper with 20 dies

2500 ton high pressure hose crimper

Product Description

6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening Crimping Force 2500 Ton And 20 Interchangeable Dies

Product Overview

Hydraulic Hose Crimping Machine 6 Inch 150mm with 2500 Ton Crimping Force

The Hydraulic Hose Crimping Machine is a heavy-duty industrial hose assembly solution designed for hydraulic repair shops, automotive service centers, oil field maintenance, and professional hose manufacturers. With a large crimping range from 4mm to 150mm (6 inch) and an impressive 2500 Ton crimping force, this machine is capable of crimping multi-layer hydraulic hoses with up to 6 layers of steel wire reinforcement, ensuring strong, precise, and reliable hose connections.

Designed for demanding applications in the USA, Europe, and Southeast Asia markets, this hydraulic hose crimper combines powerful performance, easy operation, and long service life. It is ideal for repairing and manufacturing hydraulic hoses used in construction machinery, agricultural equipment, mining systems, automotive applications, and oil & gas industries.

Product Features

1. Ultra-Large Crimping Capacity
This hydraulic hose crimping machine supports hose sizes from 4mm to 150mm, including large-diameter 6-inch hydraulic hoses. The wide opening design allows operators to easily process different hose specifications without changing equipment.

2. Powerful 2500 Ton Hydraulic Force
Equipped with a high-performance hydraulic system, the machine delivers up to 2500 tons of crimping force, providing stable pressure and uniform compression for heavy-duty hoses.

3. Suitable for Multi-Layer Hydraulic Hoses
The machine can handle hoses reinforced with up to 6 layers of steel wire, making it suitable for high-pressure hydraulic applications in oil, construction, and industrial equipment.

4. 20 Interchangeable Die Sets Included
The machine comes with 20 sets of interchangeable dies, allowing quick size adjustment and improving work efficiency. Different hose diameters can be processed easily with accurate crimping results.

5. Durable Industrial Construction
Built with high-strength materials and precision-machined components, this hose crimper offers excellent durability, stable performance, and long service life even under continuous workshop operation.

Product Advantages

High crimping accuracy for leak-free hose assemblies
Large opening design for oversized hydraulic hoses
Suitable for hydraulic repair shops and professional hose suppliers
Reduces manual labor and improves production efficiency
Easy die replacement and simple operation
Reliable performance for automotive, oil, and industrial applications

Technical Specifications

Model	FY-150 High Pressure Hose Crimper
Crimping Range	4-150(mm)
Crimping Force	2500(T)
Hose Size	1/8-6(inch)
Max. Opening	235(mm)
Die Sets	20
Output Volume Of Pump	10L/16L
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200pcs/h
Standard Voltage	110v/220v/240/380/415v
Motor Power	4KW/5.5(KW)
Length	850(mm)
Width	530(mm)
Height	980(mm)
Weight	820(KG)

Additional Specifications

Crimping Range / Skiving Range	4-150mm(1/8''-6''inner diameter of hose)
Quantity of Dies	20 sets
Item Dies	Length 60mm(15,19,23,26) \| Length 70mm(31,36,41) \| Length 80mm(47,55,60)
Accuracy	0.01mm
Output Volume of Pump	10L/16L
System Pressure	31.5Mpa
Motor Power	4kw/5.5KW
Voltage	110V/220V/380V/415V,50HZ/60HZ
Crimping Force	2500T
Work Efficiency	200pcs/h
Maximum Open Diameter	235mm
The Max Open Tolerance	±30mm
Package Dimension	850530980mm
Machine Dimension	9105901210mm
Net Weight	820kg
Gross Weight	850kg

Frequently Asked Questions

Q1: What is the maximum hose diameter this machine can crimp?

A1: The machine supports hose outer diameters up to 150 mm (6 inches).

Q2: Can it handle hoses with multiple reinforcement layers?

A2: Yes — this press is designed to crimp hoses with up to six reinforcement layers; verify specific hose construction with the supplier to ensure correct die selection.

Q3: How many dies come with the machine and can I order more?

A3: The standard package includes 20 interchangeable dies. Additional and custom dies for special fittings or non-standard hoses are available on request.

Q4: Is this machine suitable for mobile service trucks?

A4: Due to its size and weight, this model is primarily intended for fixed workshop or factory installations. For mobile applications, consider a compact DC-powered crimper.

Q5: What maintenance does the machine require?

A5: Regular maintenance includes hydraulic oil checks and replacement, inspection of seals and hoses, die condition checks, lubrication of moving parts, and verification of safety systems. Follow the manufacturer's maintenance schedule.

Product Features

High Quality Material

Apply world famous hydraulic cylinder producing technology, 40Cr and Cr12Mov steel with high hardness

Pedal Switch

Big double use foot pedal, more convenient

Human Design Panel

Simple structure easy for operating, high efficiency

Crimping Samples

Additional Notes

" * " for non standard die sets
Customized die sets are available
Special voltage 110v/220v/240/380/415v are available

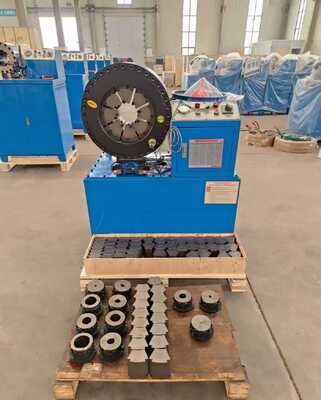

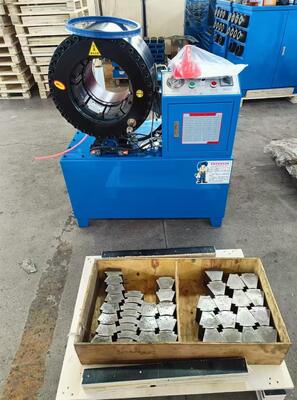

Product Images

SEO Keywords

Hydraulic Hose Crimping Machine, 6 Inch Hose Crimper, 4-150 mm crimper, industrial hose press, large opening hose crimper, high pressure hydraulic hose crimper, Wide Range High Pressure Hose Crimper, Flexible High Pressure Hose Crimper

Conclusion

This 6 Inch Press Hydraulic Hose Crimping Machine combines wide capacity, heavy-duty reliability and precise hydraulic control for demanding industrial environments. With a 4-150 mm range, six-layer handling and 20 dies, it is ideal for heavy equipment maintenance, oilfield support and large-scale hose manufacturing in the USA, Europe and Southeast Asia. Contact your local supplier to specify power configuration, die sets and installation requirements.
