6" Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening Crimping Force 2500 Ton And 20 Interchangeable Dies

Name: 6" Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening Crimping Force 2500 Ton And 20 Interchangeable Dies
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-150
Price: 4550 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-150
MOQ:	1 set
Price:	USD$ 4550
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Document:

our new catalogue.pdf

Crimping Range:

4-150mm

Product Name:

6“ Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

6 inch hydraulic hose crimping machine

150mm hydraulic hose crimper with 20 dies

2500 ton force hose crimping machine

Product Description

6" Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening Crimping Force 2500 Ton And 20 Interchangeable Dies

Product Overview

Hydraulic Hose Crimping Machine 6 Inch with 2500 Ton Crimping Force

Heavy-Duty Hydraulic Hose Crimping Machine for Large-Diameter Hose Applications

The Hydraulic Hose Crimping Machine is a high-capacity industrial crimping solution designed for large hydraulic hose assembly, repair, and manufacturing operations. Featuring an impressive 4mm to 150mm (6 inch) crimping range, powerful 2500-ton crimping force, and a large opening design, this machine is engineered to handle demanding hydraulic hose applications with maximum precision and efficiency.

Built for hydraulic repair shops, automotive service centers, oil and gas companies, mining operations, construction equipment maintenance facilities, and industrial hose manufacturers, this machine can crimp up to 6-layer steel wire reinforced hydraulic hoses, making it ideal for high-pressure hydraulic systems.

Equipped with 20 interchangeable dies, the machine provides exceptional flexibility for processing various hose sizes and fittings. Designed for customers in the USA, Europe, and Southeast Asia, this Hydraulic Hose Crimping Machine delivers superior performance, durability, and productivity for professional hose assembly operations.

Product Features

Extra-Wide 4mm–150mm Crimping Range

The machine supports hose diameters from 4mm to 150mm (6 inches), allowing users to process both small hydraulic hoses and large industrial hose assemblies with a single machine.

Powerful 2500 Ton Crimping Force

With a massive 2500-ton hydraulic crimping force, the machine ensures secure and accurate crimping for heavy-duty hoses used in high-pressure industrial environments.

Suitable for 6-Layer Wire Reinforced Hoses

Designed for demanding applications, this Hydraulic Hose Crimping Machine can effectively crimp hydraulic hoses reinforced with up to 6 layers of steel wire, ensuring strong and reliable hose connections.

Large Opening Design

The extra-large opening makes it easier to insert and remove oversized hose assemblies, improving workflow efficiency and operator convenience.

20 Interchangeable Precision Dies

The machine comes with 20 high-precision dies, providing flexibility for a wide variety of hose diameters and fitting specifications while maintaining excellent crimping accuracy.

Heavy-Duty Industrial Construction

Manufactured with reinforced steel components and a robust hydraulic system, this machine is built for continuous operation in demanding industrial environments.

Product Advantages

Wide crimping capacity up to 150mm (6 inches)
Powerful 2500-ton hydraulic crimping force
Handles hoses with up to 6 wire reinforcement layers
Large opening design for oversized hose assemblies
Includes 20 interchangeable dies
High crimping accuracy and repeatability
Suitable for industrial, oilfield, and hydraulic applications
Durable construction for long-term reliability
Improves productivity and reduces labor costs

Technical Specifications

Model	FY-150 High Pressure Hose Crimper
Crimping Range	4-150(mm)
Crimping Force	2500(T)
Hose Size	1/8-6(inch)
Max. Opening	235(mm)
Die Sets	20
Output Volume Of Pump	10L/16L
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200pcs/h
Standard Voltage	110v/220v/240/380/415v
Motor Power	4KW/5.5(KW)
Length	850(mm)
Width	530(mm)
Height	980(mm)
Weight	820(KG)

Additional Specifications

Crimping Range / Skiving Range	4-150mm(1/8''-6''inner diameter of hose)
Quantity of Dies	20 sets
Item Dies	Length 60mm(15,19,23,26) \| Length 70mm(31,36,41) \| Length 80mm(47,55,60)
Accuracy	0.01mm
Output Volume of Pump	10L/16L
System Pressure	31.5Mpa
Motor Power	4kw/5.5KW
Voltage	110V/220V/380V/415V,50HZ/60HZ
Crimping Force	2500T
Work Efficiency	200pcs/h
Maximum Open Diameter	235mm
The Max Open Tolerance	±30mm
Package Dimension	850530980mm
Machine Dimension	9105901210mm
Net Weight	820kg
Gross Weight	850kg

Frequently Asked Questions

Q1: What is the maximum hose diameter this machine can crimp?

A1: The machine supports hose outer diameters up to 150 mm (6 inches).

Q2: Can it handle hoses with multiple reinforcement layers?

A2: Yes — this press is designed to crimp hoses with up to six reinforcement layers; verify specific hose construction with the supplier to ensure correct die selection.

Q3: How many dies come with the machine and can I order more?

A3: The standard package includes 20 interchangeable dies. Additional and custom dies for special fittings or non-standard hoses are available on request.

Q4: Is this machine suitable for mobile service trucks?

A4: Due to its size and weight, this model is primarily intended for fixed workshop or factory installations. For mobile applications, consider a compact DC-powered crimper.

Q5: What maintenance does the machine require?

A5: Regular maintenance includes hydraulic oil checks and replacement, inspection of seals and hoses, die condition checks, lubrication of moving parts, and verification of safety systems. Follow the manufacturer's maintenance schedule.

Product Features

High Quality Material

Apply world famous hydraulic cylinder producing technology, 40Cr and Cr12Mov steel with high hardness

Pedal Switch

Big double use foot pedal, more convenient

Human Design Panel

Simple structure easy for operating, high efficiency

Crimping Samples

Additional Notes

" * " for non standard die sets
Customized die sets are available
Special voltage 110v/220v/240/380/415v are available

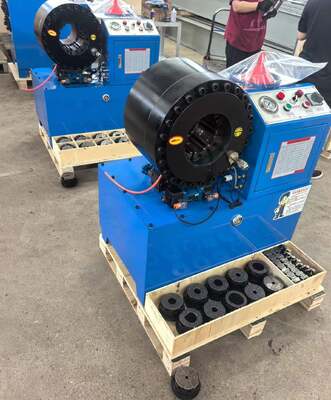

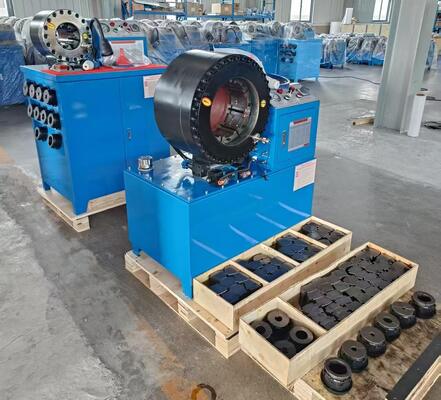

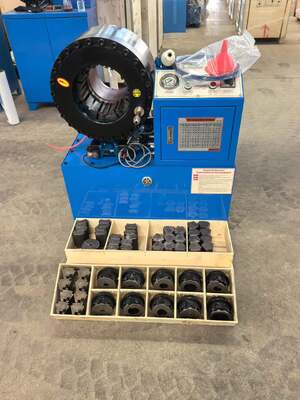

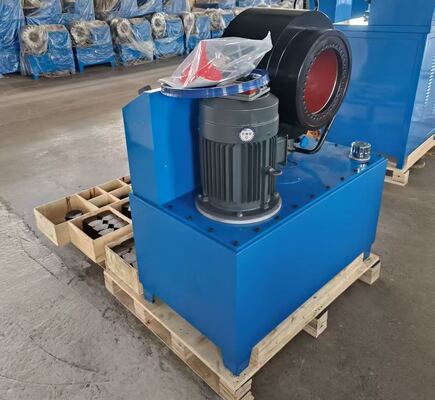

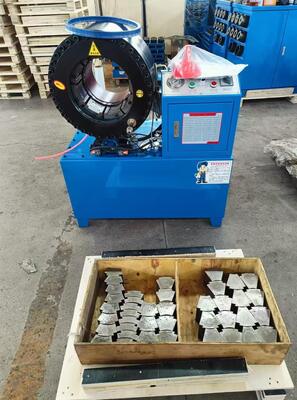

Product Images

SEO Keywords

Hydraulic Hose Crimping Machine, 6 Inch Hose Crimper, 4-150 mm crimper, industrial hose press, large opening hose crimper, high pressure hydraulic hose crimper, Wide Range High Pressure Hose Crimper, Flexible High Pressure Hose Crimper

Conclusion

This 6 Inch Press Hydraulic Hose Crimping Machine combines wide capacity, heavy-duty reliability and precise hydraulic control for demanding industrial environments. With a 4-150 mm range, six-layer handling and 20 dies, it is ideal for heavy equipment maintenance, oilfield support and large-scale hose manufacturing in the USA, Europe and Southeast Asia. Contact your local supplier to specify power configuration, die sets and installation requirements.
