6 " Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose From 4-150mm Crimping Range Large Opening Crimping Force 2500 Ton And 20 Interchangeable Dies

Name: 6 " Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose From 4-150mm Crimping Range Large Opening Crimping Force 2500 Ton And 20 Interchangeable Dies
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-150
Price: 4550 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-150
MOQ:	1 set
Price:	USD$ 4550
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Document:

our new catalogue.pdf

Crimping Range:

4-150mm

Product Name:

6“ Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

6 inch hydraulic hose crimper

150mm hydraulic hose crimping machine

high pressure hose crimper with dies

Product Description

6 " Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose From 4-150mm Crimping Range Large Opening Crimping Force 2500 Ton And 20 Interchangeable Dies

Product Overview

Hydraulic Hose Crimping Machine 6 Inch with 2500 Ton Crimping Force

Heavy-Duty Hydraulic Hose Crimping Machine for Large-Diameter Hose Applications

Hydraulic Hose Crimping Machine for 4–150 mm Hoses

Meta Title: Hydraulic Hose Crimping Machine | 4–150 mm, 2500 Ton Force
Meta Description: Heavy-duty hydraulic hose crimping machine for 4–150 mm hoses and up to 6-layer wire hoses. Includes 20 interchangeable dies for repair shops and hose service centers.

High-Performance Hydraulic Hose Crimping Machine

The Hydraulic Hose Crimping Machine is a heavy-duty solution for manufacturing, repairing, and servicing hydraulic hoses in automotive repair shops, hydraulic service centers, oil and gas applications, industrial workshops, and hose distributors. Designed for hoses from 4 mm to 150 mm, this machine can crimp up to 6 layers of wire-reinforced hose, providing reliable performance for demanding applications.

With a powerful 2500-ton crimping force and a large working opening, the machine delivers stable, accurate, and uniform crimping results. Its robust construction makes it suitable for continuous use in professional workshops across the USA, Europe, and Southeast Asia.

Key Features

Wide crimping range: Suitable for hydraulic hoses from 4–150 mm.
Heavy-duty crimping force: Up to 2500 tons for high-pressure hose applications.
Multi-layer capability: Crimps hoses with up to 6 layers of steel wire reinforcement.
20 interchangeable dies: Supports different hose sizes and fitting requirements.
Large opening design: Makes it easier to position large-diameter hoses and fittings.
Consistent crimping quality: Helps reduce leakage, hose failure, and fitting deformation.
Professional-grade construction: Designed for hydraulic repair shops, industrial maintenance, and hose production.
Flexible application: Suitable for hydraulic, automotive, construction, agricultural, mining, and oil-field equipment.

Main Advantages

This hydraulic hose crimper improves workshop efficiency by allowing operators to process multiple hose sizes with one machine. The interchangeable die system reduces tooling costs and simplifies size changes. Its strong hydraulic system is designed to handle heavy-duty hose assemblies while maintaining stable crimping pressure.

For hydraulic repair shops and hose service businesses, the machine can help reduce downtime, improve service response times, and bring hose assembly work in-house. It is also a practical choice for distributors and industrial users who need dependable on-site hose repair and replacement.

Technical Specifications

Model	FY-150 High Pressure Hose Crimper
Crimping Range	4-150(mm)
Crimping Force	2500(T)
Hose Size	1/8-6(inch)
Max. Opening	235(mm)
Die Sets	20
Output Volume Of Pump	10L/16L
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200pcs/h
Standard Voltage	110v/220v/240/380/415v
Motor Power	4KW/5.5(KW)
Length	850(mm)
Width	530(mm)
Height	980(mm)
Weight	820(KG)

Additional Specifications

Crimping Range / Skiving Range	4-150mm(1/8''-6''inner diameter of hose)
Quantity of Dies	20 sets
Item Dies	Length 60mm(15,19,23,26) \| Length 70mm(31,36,41) \| Length 80mm(47,55,60)
Accuracy	0.01mm
Output Volume of Pump	10L/16L
System Pressure	31.5Mpa
Motor Power	4kw/5.5KW
Voltage	110V/220V/380V/415V,50HZ/60HZ
Crimping Force	2500T
Work Efficiency	200pcs/h
Maximum Open Diameter	235mm
The Max Open Tolerance	±30mm
Package Dimension	850530980mm
Machine Dimension	9105901210mm
Net Weight	820kg
Gross Weight	850kg

Frequently Asked Questions

Q1: What is the maximum hose diameter this machine can crimp?

A1: The machine supports hose outer diameters up to 150 mm (6 inches).

Q2: Can it handle hoses with multiple reinforcement layers?

A2: Yes — this press is designed to crimp hoses with up to six reinforcement layers; verify specific hose construction with the supplier to ensure correct die selection.

Q3: How many dies come with the machine and can I order more?

A3: The standard package includes 20 interchangeable dies. Additional and custom dies for special fittings or non-standard hoses are available on request.

Q4: Is this machine suitable for mobile service trucks?

A4: Due to its size and weight, this model is primarily intended for fixed workshop or factory installations. For mobile applications, consider a compact DC-powered crimper.

Q5: What maintenance does the machine require?

A5: Regular maintenance includes hydraulic oil checks and replacement, inspection of seals and hoses, die condition checks, lubrication of moving parts, and verification of safety systems. Follow the manufacturer's maintenance schedule.

Product Features

High Quality Material

Apply world famous hydraulic cylinder producing technology, 40Cr and Cr12Mov steel with high hardness

Pedal Switch

Big double use foot pedal, more convenient

Human Design Panel

Simple structure easy for operating, high efficiency

Crimping Samples

Additional Notes

" * " for non standard die sets
Customized die sets are available
Special voltage 110v/220v/240/380/415v are available

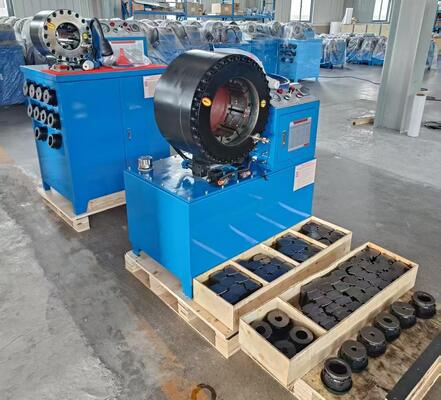

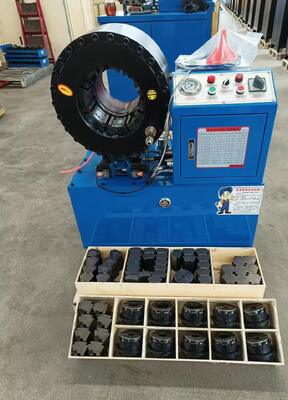

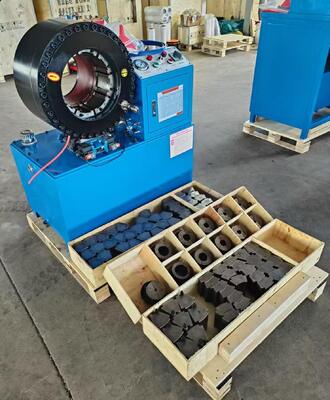

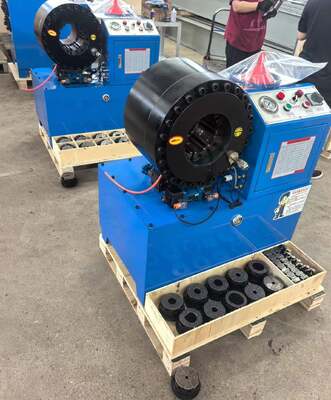

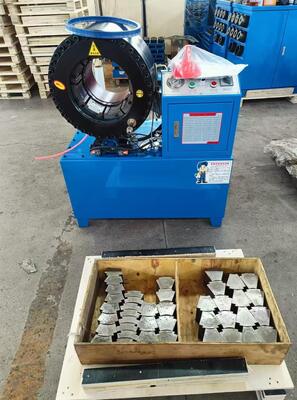

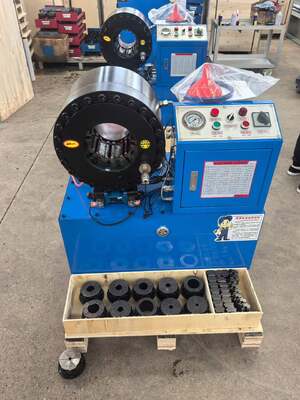

Product Images

SEO Keywords

Hydraulic Hose Crimping Machine, 6 Inch Hose Crimper, 4-150 mm crimper, industrial hose press, large opening hose crimper, high pressure hydraulic hose crimper, Wide Range High Pressure Hose Crimper, Flexible High Pressure Hose Crimper

Conclusion

This 6 Inch Press Hydraulic Hose Crimping Machine combines wide capacity, heavy-duty reliability and precise hydraulic control for demanding industrial environments. With a 4-150 mm range, six-layer handling and 20 dies, it is ideal for heavy equipment maintenance, oilfield support and large-scale hose manufacturing in the USA, Europe and Southeast Asia. Contact your local supplier to specify power configuration, die sets and installation requirements.
